Custom curtain aluminum profile is the core substrate of all kinds of special-shaped and intelligent curtain projects. It is different from the standardized general aluminum in the market. It can be customized for different window types, use environments and decoration styles.  This article explains completely from many angles, and provides a full set of professional references for practitioners and engineering procurement in sunshade industry.

What Are Custom Aluminum Profiles for Blind Systems?

Custom Aluminum Core Definition

Curtain custom aluminum profiles are aluminum alloy components extruded by exclusive molds, which are specially adapted to the rails, tubes, bottom rods and other structures of curtain products such as roller blinds, blinds, and electric sunshades. They are not standard stock profiles in circulation.
It can adjust the internal structure such as wall thickness, card slot and cable trough according to the actual demand of the project, perfectly match the non-standard installation scenarios such as curved window and super large span, and solve the industry problem of poor adaptability of general profiles.

Basic Forming Principle of Aluminum Profile

During production, the solid aluminum rod is melted and softened at high temperature, and is molded in a high-pressure extrusion equipment through a customized mold to produce a strip profile substrate with a corresponding section, which can be subsequently cut, perforated and grooved to complete finish machining.
After molding, the substrate must be straightened and hardened to stabilize the structure, and then matched with various surface protection processes, so that the profile has structural strength, corrosion resistance and decorative aesthetics at the same time.

Why Standard Profiles Don't Fit Every Blind Project

Inherent Limitations of Standard Aluminum Profiles

The standard profile adopt uniform fixed cross section and wall thickness specification for batch production, and is only designed for small size windows of conventional home decoration. that cross section structure is single, and no supporting function slots such as intelligent motor and sealing shading are reserved
In the face of heavy shading fabrics, more than ten meters of large-span curtains, the standard profile wall thickness is thin, insufficient bearing is easy to appear in the middle of the bend, running card, and no reinforcing rib structure, long-term use of deformation irreversible.

Pain Points for Regular Curtains

A large number of non-standard window types such as arches, sloping roofs, and curved floor-to-ceiling windows appear in modern buildings. The straight structure of standard profiles cannot fit the curvature of the wall and can only be cut and spliced. The splicing gaps will cause light leakage, shaking and abnormal noise in the curtains.
Commercial projects such as hotels and office buildings need unified high standard accessories with silence, flame retardancy and easy cleaning. The surface technology of general profiles is single, and it is difficult to meet the acceptance specifications of tooling projects for wear resistance, environmental protection and fire resistance.

Alternative Advantages of Custom Profiles

Customized aluminum profiles can be freely adjusted section wall thickness, internal reinforcement ribs, various functional card slots, for curved windows, ultra-large span, outdoor shading and other special conditions to optimize the structure separately, without splicing modification.
The integrated multi-cavity design integrates wiring, shading and noise reduction structures, greatly simplifies the field installation process and reduces the time spent on manual rectification. Although there is cost in the early stage of mold opening, the comprehensive landing cost of long-term engineering is lower.

Key Factors to Consider Before Customizing Aluminum Profiles

Functional and Performance Requirements

In the early stage of customization, the complete working condition data of the curtain must be counted, including the overall weight of the fabric, the single span of the window, and the wind load for outdoor use, so as to determine the minimum wall thickness and reinforcement layout of the profile.
Household electric curtains focus on motor transmission adaptation and mute effect, shopping malls, hospitals and other crowded places need to strengthen the profile wear-resistant structure, adapt to dozens of times a day high-frequency opening and closing long-term use needs.

Size Accuracy and Window Type Adaptation Standard

Complete collection of window length and width, wall installation gap, upper and lower limit distance and other data, arc, oblique window needs to accurately record radian, tilt angle, small size error will lead to profile assembly failure.
Custom profile processing tolerance can be controlled within ± 0.1 mm, far better than the standard profile accuracy, can perfectly fit all kinds of narrow, special-shaped installation space, to ensure that the curtain sliding smooth, no light gap around.

Aluminum Alloy Material Model Selection

6063-T5/T6 is the mainstream alloy of curtain profile, extrusion molding is smooth, anodizing, powder coating and other surface treatment effect is exquisite, corrosion resistance is balanced, suitable for most indoor decoration, small and medium-sized tooling curtains.
6064 - 6061-T6 alloy has higher internal strength, outstanding bending resistance and tensile resistance. It is specially used for large-span heavy-duty sunshade and outdoor curtain wall shutters. It can also be customized in coastal high-corrosion areas.

Design Complexity and Production Feasibility

Although multi-cavity and ultra-thin special-shaped section can integrate multiple functions, it will increase the difficulty of mold processing, and it is easy to appear distortion and uneven wall thickness during extrusion molding. The design stage should balance the function and the difficulty of production process.
The design drawings shall reserve reasonable demoulding rounded corners, uniform wall thickness, simplify the structure of screw holes and fabric slots, reduce the subsequent CNC finishing procedures, and reduce material loss and overall processing costs.

Surface Technology and Appearance Aesthetic Requirements

The surface technology of profiles directly determines the finished product's face value and aging resistance. Anodic oxidation, electrostatic powder spraying, fluorocarbon spraying, wire drawing and other processes have obvious differences in color, wear resistance and corrosion resistance.
Interior decoration priority matte, wood grain powder fit simple decoration, outdoor, coastal projects use PVDF fluorocarbon coating to resist ultraviolet salt spray, taking into account long-term use stability and building facade aesthetics.

Choosing the Right Surface Finish for Blind Aluminum Profiles

Importance of Surface Technology

Curtain profiles are exposed to the air for a long time, easy to accumulate dust, fingerprints, and at the same time continue to withstand light, temperature and humidity changes, inferior surface will fade, oxidize, paint off in a short period of time, shortening the service life of accessories.
The high-quality surface protective layer can completely isolate air and water vapor erosion, improve the wear resistance and anti-aging performance of the profile, and enrich the color texture, so that the aluminum and interior decoration styles are integrated into one, and the product grade is improved.

Surface Technology Characteristics of Mainstream Profiles

Anodic oxidation through electrochemical thickening of the natural oxide layer of aluminum, high hardness of the finished product, transparent metal texture, corrosion resistance, no fading, moderate processing cost, suitable for blinds, indoor conventional curtain track profiles.
Electrostatic powder has a large number of color options, matte, highlight, simulation wood grain effect can be achieved, coating full adhesion, anti-collision, cost-effective, is the most widely used civil custom curtain technology.

Core Considerations for Surface Process Selection

Process selection first according to the use of environmental distinction, indoor dry space can be selected anodic oxidation, electrostatic powder control cost, kitchen and bathroom wet areas, coastal, outdoor scenes priority electrophoresis, PVDF fluorocarbon strong anti-corrosion process.
Secondly, in combination with decoration lighting and design style, matte matte shall be selected for home space to reduce glare reflection. Wood grain and highlight technology can be selected for office buildings, hotels and other commercial spaces as required to match the overall interior decoration design tone.

Industry Mainstream Process Development Trend

At present, the market aesthetic tends to be simple and soft texture, soft skin matte, imitation original wood grain, pure black matte craft heat continues to rise, all kinds of modern, minimalist home decoration, become the standard surface treatment scheme of high-end customized curtains.
The inner and outer double-layer differentiation process is gradually popularized. The outer side of the profile adopts weather-resistant fluorocarbon coating to resist outdoor corrosion, and the inner side uses matte decorative coating to adapt to indoor aesthetics, giving consideration to outdoor durability and indoor visual aesthetics.

Custom Design Process for Special Blind Projects

Pre-consultation and Demand Collection

In the customization start-up stage, the supply and demand parties shall carry out detailed communication, and completely collect all core information such as window type size, wall installation limit, curtain bearing, intelligent motor matching, appearance color matching, use environment, etc.
Simultaneously confirm the product market positioning, order production batch and project budget interval, sort out the special function requirements such as silence, shading and child protection, and avoid the design scheme from inconsistent with the site landing requirements from the source.

Fine Engineering Modeling Design

Use professional CAD and CAM drawing software to refine all structural parameters of profiles, accurately mark size tolerance, internal cavity, assembly card groove and motor routing groove, and ensure that all structures are suitable for curtain fitting assembly.
During the design process, we have adjusted the details with customers for many times, optimized the structure of demoulding, cutting and on-site installation, and the final scheme takes into account the appearance, performance, mold productivity and on-site assembly convenience.

Mold Design and Processing Preparation

After the drawing scheme is confirmed by both parties, the customized extrusion die processing is started, and the high-strength wear-resistant die steel is selected. Through precision CNC milling and polishing, the precision and long-term service life of the die are guaranteed.
The die section strictly aligns with the design drawing parameters, evenly adjusts the wall thickness transition rounded corners, and avoids common production defects such as distortion, uneven thickness, and missing corners after extrusion from the die end.

Sample Preparation and Preliminary Testing

After the completion of mold processing, small-batch trial production shall be carried out to produce complete profile samples. The staff shall inspect the overall size, surface defects and cavity assembly adaptability of the samples item by item, and check the basic processing problems.
Assemble the trial-produced profiles with fabrics, motors and brackets into complete curtains, test the opening and closing smoothness and load-bearing deformation effect, synchronously complete the surface process proofing, and confirm that the color texture meets the design expectations.

Performance Testing and Solution Optimization

Multi-dimensional simulation test is carried out on finished samples, including tens of thousands of times of opening and closing fatigue test, ultimate bearing deformation test and high and low temperature weathering aging test to verify the long-term use stability of profiles.
In view of the problems such as sticking, slight bending and shading gap in the test, the engineer modified the section structure of the profile, adjusted the process parameters, and debugged repeatedly until all the performance indicators of the sample reached the standard.

Mass Production and Quality Control

After all the test items of the sample are accepted, the large-scale profile production is officially started, and the quality control system is established throughout the whole process, from aluminum rod raw material screening, extrusion molding, finishing to surface treatment layer by layer quality inspection.
After the completion of production, use laser ruler, colorimeter and mechanical tester to verify each batch of products, uniformly control size accuracy, surface texture and structural strength, and eliminate defective products to deliver engineering projects.

Manufacturing Technologies That Ensure High-Quality Profiles

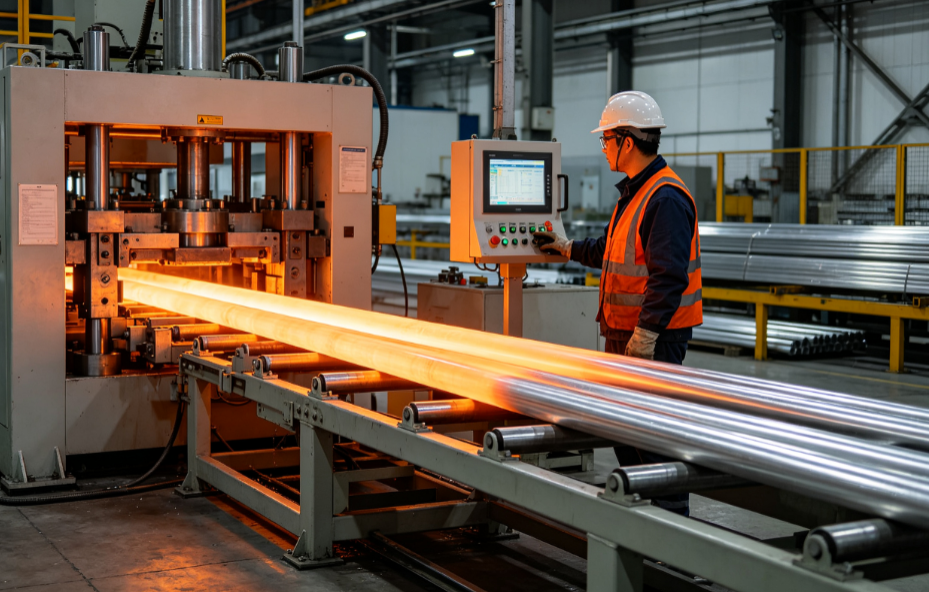

Precision Extrusion Core Technology

High-end curtain aluminum profile adopts constant temperature precision hot extrusion process, heating aluminum alloy aluminum rod to fixed processing temperature, relying on large-tonnage extrusion equipment with custom mold integrated molding, ensuring uniform section wall thickness.
The system intelligently adjusts the extrusion speed and equipment temperature, effectively reduces the profile distortion, tensile deformation and local wall thickness deviation, and the processing size accuracy can reach ±0.1mm, which is suitable for precision electric curtain assembly.

Precision Cooling and Straightening Processes

When the profile is just extruded, the temperature is high. The segmented gradient cooling quenching equipment is used to cool down at a constant speed to stabilize the internal metallographic structure of the aluminum alloy and lock the hardness of the profile to prevent bending deformation in the later use.
After cooling, use special stretching and straightening equipment to release the internal stress of the profile, ensure that the strip track and roller shutter pipe are straight without bending, and completely eliminate the field faults such as curtain operation deviation, push-pull and blocking.

Heat Treatment Srengthening Process

Through T5 air cooling and T6 water cooling artificial aging heat treatment process, the internal crystal structure of aluminum alloy is reshaped, and the overall hardness, tensile strength and fatigue deformation resistance of the profile are greatly improved.
After heat treatment and strengthening, the profile can withstand heavy curtain fabric tension and outdoor wind load for a long time, greatly reducing the probability of deformation and fracture during use, and extending the service life of the whole sunshade system.

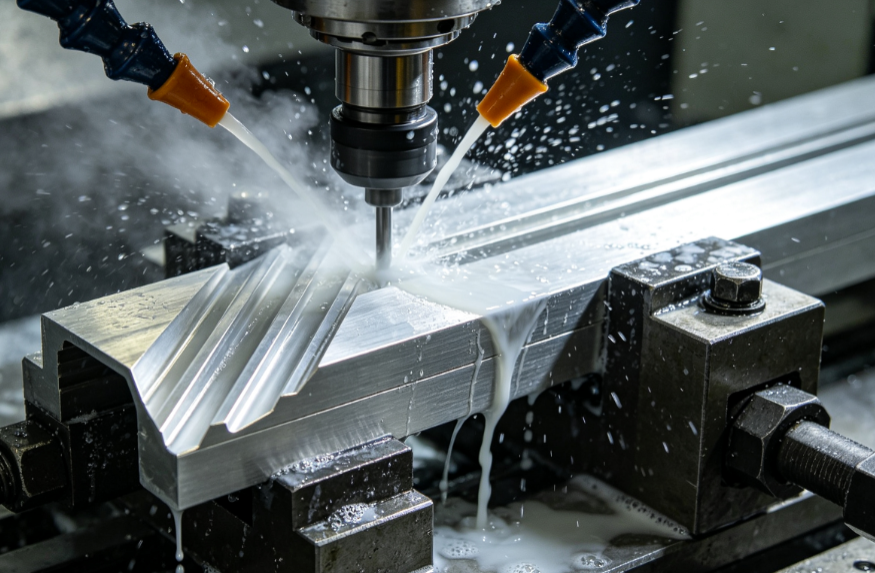

Precision CNC Deep Machining

Multi-axis CNC machining equipment is used to complete the finishing processes such as profile fine cutting, positioning drilling, fabric card groove milling, corner deburring, etc. Automatic machining ensures that the hole position and groove position size of each profile are uniform.
CNC machining replaces traditional manual grinding and cutting, eliminates size error caused by manual operation, standardized machining allows different batches of profile parts to be exchanged universally, and greatly improves the efficiency of curtain on-site assembly construction.

Automated Surface Treatment Technology

Relying on vertical and horizontal fully automatic surface treatment production lines, the entire process of anodization, electrostatic powder spraying, and fluorocarbon spraying is completed in a unified manner. The coating thickness is uniform, and the entire batch of products has no color difference or local coating leakage problems.
Automatic production line accurately controls the concentration of chemicals, coating thickness, baking temperature, improves the compactness of the protective layer on the surface of the profile, strengthens the salt spray resistance, UV resistance, and adapts to various indoor and outdoor complex use environments.

Intelligent Quality Inspection System

The whole production line is equipped with intelligent detection equipment, laser scanning equipment to verify the overall length and width section of the profile, coordinate measuring instrument to detect the precise size of the card slot and hole position, and colorimeter to uniformly check the surface color.
Simultaneously carry out internal nondestructive testing, check internal cracks and impurity defects of aluminum materials, establish product traceability files, trace production processes for each batch of profiles, and stabilize batch delivery quality.

Common Applications of Customized Blind Aluminum Profiles

Home Improvement Residential Curtain Scene

Custom profiles in home decoration houses are mostly used for floor-to-ceiling windows, indoor blinds, Roman curtains and other products. They can be matched with arc bay windows and inclined roof special-shaped windows to realize seamless fit between profiles and walls and reduce shading gaps.
Lightweight precision customized aluminum with matte high-value surface technology, quiet and smooth operation, color can adapt to various home decoration styles such as log, minimalist, light luxury, etc., meeting the personalized decoration needs of high-end owners.

Office Building Commercial Building Scenes

Office building large-area glass curtain wall shading system, select custom large-span high-load profile, profile internal integrated hidden motor routing slot, adapt to the whole building intelligent unified shading control system.
Custom profiles can meet the fire prevention, wear resistance, low noise rigid standards of commercial buildings, mass production color uniformity, stable performance, adapt to office space daily high frequency opening and closing, reduce long-term maintenance costs.

Hotel Medical Wellness Scene

The hotel guest rooms and hospital wards are equipped with sealed light-shielding customized aluminum profiles, the track structure is equipped with silent buffer design, the curtains are closed without noise, creating a quiet rest and accommodation space to ensure a rest environment.
Customizable antibacterial and easy-to-clean surface powder spraying process to meet the needs of hospital sanitation disinfection and sterilization, diversified wood grain, matte color matching different hotel room decoration themes, giving consideration to practical functions and space aesthetics.

Building facade outdoor shading scene

Outdoor balcony sunshade curtain, curtain wall shutter, commercial external wall sunshade components, using customized high-strength weather-resistant aluminum profiles, structure thickening and strengthening, with excellent wind resistance, salt fog resistance, anti-ultraviolet aging ability.
According to the building facade arc, fold line modeling separate mold production profile, create an integrated building shading system, not only can heat insulation energy saving, but also perfect integration with the building appearance design.

How to Choose a Reliable Aluminum Profile Manufacturer

Verification of Industry-specific Experience

Preference is given to manufacturers who have been working in the field of curtain shading profiles for many years. Familiar with the exclusive section design of track, pipe and shutter profiles, able to quickly identify project requirements and give reasonable optimization solutions.
 Manufacturers who only make industrial aluminum profiles for doors and windows lack experience in curtain matching design, which is prone to mismatch between profiles and motors and fabric accessories, increasing the time cost of repeated modification and rework of later samples.

Verify Own Tooling and Processing Capacity

Manufacturers with their own mold workshops can independently complete mold design, processing, mold repair, communication and adjustment efficiency is higher, no need to outsource mold factories, can better control sample trial production and batch delivery cycle.
At the same time, investigate the extrusion, CNC deep processing, surface treatment full supporting production line, integrated factory production process independent control, reduce outsourcing processing caused by size deviation, surface color difference, delivery delay and other problems.

Test Sample Quality and Process Level

Ask for the manufacturer's past curtain profile samples, visually observe the profile wall thickness uniformity, corner processing smoothness, surface coating uniformity, simple bending test to judge the aluminum hardness and deformation resistance.
 Check the adaptability of sample assembly, match the profile with conventional curtain motor, bracket and fabric to test the assembly smoothness, and the samples of high-quality manufacturers have no inferior problems such as stagnation, too large gap, easy peeling of coating, etc.

Confirm Quality Inspection System and Compliance Qualification

Regular shade profile manufacturers have a complete quality inspection laboratory, can issue salt spray, mechanical load-bearing, environmental protection low VOC and other third-party testing reports, products in line with construction engineering, export environmental protection standards.
Before purchasing, confirm that the manufacturer can provide the corresponding profile material sheet and surface process inspection certificate. The tooling and export items need relevant qualification documents to complete the project acceptance, so as to avoid the delay of payment due to lack of later materials.

Conclusion

Custom curtain aluminum profile is the core solution to solve various special shading project adaptation problems, compared with standard aluminum in the structure, function, appearance advantages. The customization process needs to combine multiple factors of window type, load bearing, environment and budget, select mature manufacturers, control extrusion and surface technology to ensure the quality of finished products. Reasonable use of customized profiles can enhance the competitiveness of curtain products, adapt to the needs of home improvement, commercial and outdoor shading projects.
