Household photovoltaic systems have become the mainstream choice for household energy conservation and carbon reduction, reducing electricity costs, and solar panel frames are the core accessories to ensure long-term stable operation of equipment.With its comprehensive performance advantages, 6063-T5 aluminum alloy has become the preferred material for household photovoltaic frames and is suitable for various roof installation scenarios.

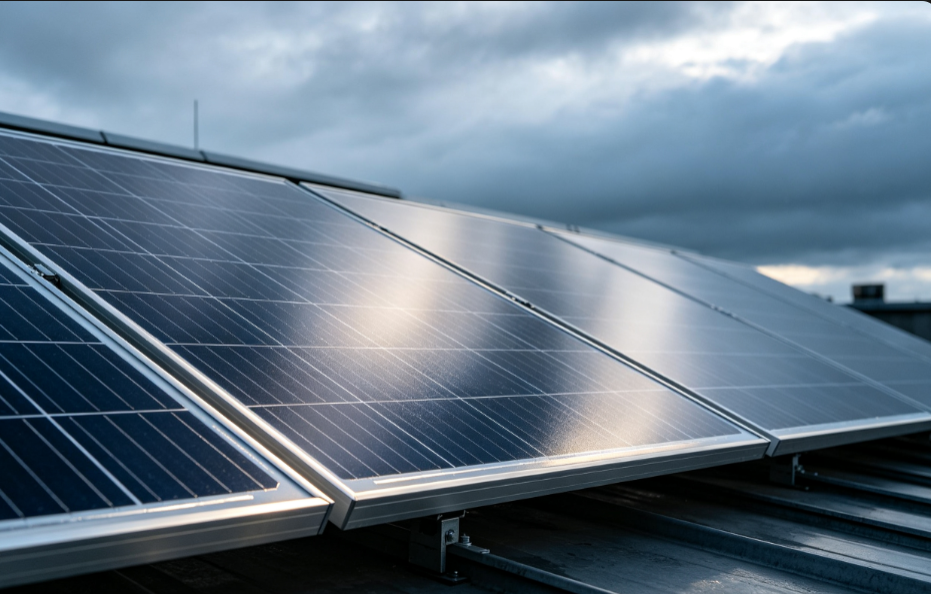

Understand the Importance of Aluminum Frames in Residential Solar Panels

The Central Role of Borders

Household solar panels are exposed to outdoor environments for a long time, and they need to continuously resist the erosion of complex weather such as ultraviolet rays, drastic temperature changes, wind, rain and snow, and the use environment is very harsh.The high-quality frame can firmly fix the photovoltaic panel glass and battery, avoiding the core components due to external force extrusion damage, cracking and other problems.
The frame is also the core carrier for the installation and fixation of photovoltaic panels, which can provide stable mounting support for the equipment and avoid the risk of loosening and falling off after roof installation.Without qualified frame support, photovoltaic cells with high conversion rate will also rapidly age and fail, greatly shortening the service life of the equipment.

The Core Advantage of the Border

Aluminum alloy profiles have the characteristics of lightweight and high strength, and the density is much lower than that of steel. It will not cause excessive load on the roof of the household. It is suitable for most old residential buildings and ordinary roof structures. There is no need to install additional reinforced roofs.At the same time, the rigidity is sufficient to resist the impact of snow and ice.
This material comes with a natural oxidation protection layer, excellent corrosion resistance, can adapt to outdoor 25 to 40 years of long-term use needs.With mature surface treatment technology, it can further improve weather resistance and meet the long-term maintenance-free use requirements of household PV.

Learn About the Features of 6063-T5 Aluminum Alloy

Composition and Process Characteristics

6063 aluminum alloy belongs to 6000 series alloy, the core adds magnesium and silicon, which is the mainstream material for adapting to building and structural profiles, and has strong versatility.T5 heat treatment process is high temperature extrusion molding after cooling artificial aging, without complete solution treatment.
The alloy material treated by the process has balanced performance, does not have the problems of excessive hardness and insufficient toughness, can not only meet the structural support requirements, but also adapt to precision extrusion processing, and perfectly fits the production and manufacturing requirements of photovoltaic frames.

Performance Parameter

6063-T5 aluminum alloy has moderate tensile strength and yield strength, can withstand outdoor conventional mechanical loads, while the density is only 2.7g/cm³, effectively control the overall weight of photovoltaic panels, reduce roof installation pressure and construction difficulty.
The material has excellent thermal conductivity, which can quickly channel the heat generated by the photovoltaic panel and avoid the high temperature degradation of the module.At the same time, the size stability is strong, and it is not easy to deform under the environment of large temperature difference, so as to ensure the structural integrity of photovoltaic modules.

Environmental Sustainability

The aluminum alloy material supports unlimited recycling, does not lose core performance in the recycling process, can effectively reduce the production carbon emissions of photovoltaic frames, and conforms to the core concept of green and low-carbon development in the photovoltaic industry.
Most regular manufacturers will incorporate a high proportion of recycled aluminum production frames to further reduce the carbon footprint of the equipment, which not only meets the environmental protection needs of household PV, but also meets the certification standards and industry requirements of green buildings.

Analyze the High Strength-to-Weight Ratio of 6063-T5 Aluminum Frames

Specific Strength

Specific strength is the core index to measure the ratio of material strength to its own weight. The higher the value, the more balanced the material weight and structural performance are. It is the core reference standard for photovoltaic frame selection, which directly affects the installation and use effect.
Photovoltaic frame needs long-term load-bearing impact resistance, while not increasing the roof load, 6063-T5 excellent specific strength just to solve this contradiction, become the ideal material for household photovoltaic frame, adapt to all kinds of residential roofs.

Mechanical Property

6063-T5 aluminum alloy has stable tensile strength, yield strength and elastic modulus. After precision extrusion molding, the profile has sufficient rigidity to resist outdoor loads such as snow and hail, effectively protecting photovoltaic core components.
After the standard household photovoltaic module is matched with the material frame, the weight of the single block can be controlled from 18 to 25 kg, the weight is light and the structure is stable, which will not press the roof, but also can maintain the stable operation state of the equipment for a long time.

Practical Benefits of High Specific Strength

Lightweight frames can greatly reduce the renovation cost of old roofs. Most residential buildings can install photovoltaic systems without additional structural reinforcement, effectively reducing the threshold of early investment in household photovoltaic and making them more popular.
Lightweight components are more convenient for construction personnel to carry and install, reduce the risk of aerial work and labor costs, while reducing transportation losses and logistics costs, and comprehensively optimize the landing cost of household PV.

Extrusion Process Optimization Specific Strength Performance

Relying on the excellent extrusion performance of 6063-T5, manufacturers can design hollow, multi-cavity precision profile structure, thickening and strengthening in the stressed areas, simplifying the materials in the non-stressed areas, and achieving the optimal ratio of performance and weight.
This intelligent profile structure design avoids the disadvantages of excessive weight of solid profiles and insufficient strength of ordinary thin-walled profiles, so that the frame can maximize the deformation resistance and impact resistance on the basis of lightweight.

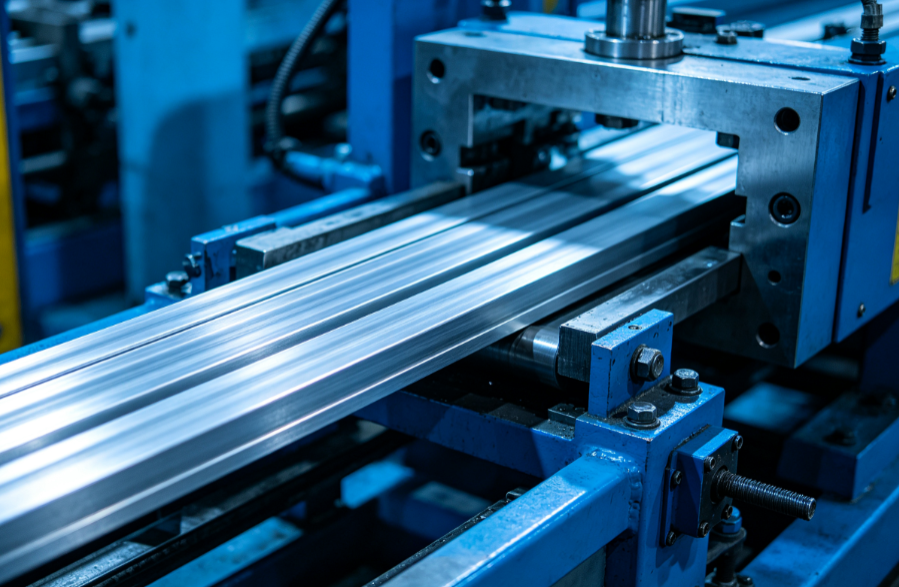

Explore the Excellent Corrosion Resistance of 6063-T5 Aluminum Frames

Outdoor Corrosion Challenges Faced by Photovoltaic Frames

Household photovoltaic frames are exposed to the natural environment all the year round and continue to be eroded by rain, humid air and ultraviolet rays. Coastal areas will also suffer from salt fog corrosion, while industrial areas need to deal with acid rain and pollutants.
Long-term corrosion will lead to rust, deformation and cracking of the frame, damage the sealing of photovoltaic modules, cause water ingress, dust accumulation and other problems, and eventually cause battery failure, greatly shortening the overall service life of solar panels.

Core Principles of Corrosion Resistance

6063-T5 aluminum alloy copper content is extremely low, from the material source to reduce the probability of pitting, intergranular corrosion, with T5 heat treatment process, forming a uniform and stable metallographic structure, eliminate corrosion breeding points.
The surface of the material can generate dense aluminum oxide protective film independently, and slight scratches can be automatically repaired to isolate the corrosion of air and moisture.With anodizing, powder spraying and other processes, multi-layer protection system can be formed, and corrosion resistance is greatly upgraded.

Corrosion Resistance Performance under Different Scenarios

In the ordinary inland home environment, the conventionally treated 6063-T5 frame can be used stably for decades without fear of daily wind and rain, temperature difference changes and slight air pollution, basically without post-corrosion maintenance.
In coastal high salt fog and high humidity environment, thickened anodized frame can effectively resist chloride ion erosion, avoid aging and damage of profiles, and meet the needs of household photovoltaic installation in various complex climate areas.

Explain Why 6063-T5 Aluminum Is Ideal for Solar Frame Extrusion

Excellent Extrusion Properties for Precision Frame Designs

6063-T5 aluminum alloy extrusion resistance is small, forming stability is high, can process thin wall, high-precision complex profile structure, easy to achieve photovoltaic frame drainage groove, installation card groove, routing groove and other integrated precision structure.
The stable extrusion process can ensure the uniform size and smooth edge of each batch of profiles, reduce processing defects, reduce mold loss and meet the industrial production requirements of large-scale and standardized photovoltaic frames.

Mechanical Properties Adapt to the Use Requirements of Photovoltaic Frames

After T5 artificial aging treatment, the hardness and rigidity of the material are greatly improved, which can resist external force extrusion and snow load during transportation, installation and use, and eliminate the deformation and loosening of the frame.
Compared with T6 process, T5 processed profile has better size stability and lower production cost. On the premise of meeting the safety standard of household photovoltaic structure, it effectively controls the overall price of equipment and improves the cost performance of products.

High-quality Surface Technology Enhances Product Practicality and Aesthetics

6063-T5 aluminum alloy surface smooth and delicate, can adapt to anodizing, powder coating, PVDF coating and other surface treatment processes, not only to create a simple and beautiful appearance, adapt to residential architectural style, but also to strengthen protection.
Diversified surface treatment methods can realize color customization, anti-aging and anti-fading effects, avoid yellowing and paint peeling after long-term outdoor use, and give consideration to the practicality and decoration of household photovoltaic.

Easy to Process and Assemble, Adapt to Large-scale Production and Installation

6063-T5 aluminum alloy cutting, drilling, riveting and other secondary processing difficulty is low, processing precision is high, can quickly complete the frame splicing, drilling, accessories adaptation and other processes, greatly improve the production assembly efficiency.
This material can adapt to various assembly methods such as bolts, angle codes, crimping, etc., compatible with mainstream photovoltaic installation accessories, and at the same time, it can avoid assembly loosening caused by processing defects to ensure the installation accuracy and stability of photovoltaic modules.

Temperature Stability for Outdoor Long-term Operation

Outdoor day and night, four seasons temperature difference changes greatly, 6063-T5 aluminum alloy thermal expansion and contraction coefficient stable, deformation law controllable, engineers can accurately reserve expansion space, avoid temperature difference caused by frame deformation, cracking problems.
The material will not rust and age like steel, and can maintain stable structural performance in extreme high and low temperature environments, ensuring the sealing and integrity of photovoltaic modules throughout the process, and extending the service life of equipment.

Evaluate the Weather Resistance and Long-Term Reliability

Natural Antioxidant Protection

The natural oxide film on the surface of 6063-T5 aluminum alloy is compact and firm, which can isolate oxygen, moisture and pollutants independently, resist slight corrosion in daily outdoor environment, and maintain the structure and appearance of the profile.
Even if the surface is slightly worn, the oxide film can quickly repair itself and continuously play a protective role, completely eliminating the common rust and spalling problems of carbon steel materials and laying a long-term durable foundation.

Dry-wet Cycling Environment

Outdoor rain erosion, day and night dew condensation will make the frame in a long-term dry and wet alternate state, easy to accumulate water breeding corrosion hidden danger, and 6063-T5 with diversion structure can quickly drain accumulated water, reduce moisture adhesion.
The high-quality profile structure has no dead angle of water accumulation, and the sealing protection design can effectively avoid local corrosion caused by crevice water and dust accumulation, and ensure the long-term stable operation of the frame in high humidity and rainy environment.

Strong Ultraviolet Environment

UV is the main cause of outdoor building materials aging, most plastic, organic materials are easy to brittle deformation due to exposure, and 6063-T5 metal matrix is not affected by UV, structural performance is stable.
With anodizing and high-end coating treatment, the surface of the profile can resist fading and powdering caused by ultraviolet radiation, keep the appearance clean and beautiful for a long time, and adapt to the long-term use scene of open-air roof.

Snow Mechanical Load

The optimized 6063-T5 profile structure can effectively disperse the mechanical pressure caused by wind, snow and hail, resist the impact of conventional extreme weather, and avoid safety hazards such as bending, breaking, and component falling off of the frame.
Through precise wall thickness and rib structure design, the profile meets the building load standard under the premise of lightweight, adapts to the snow and snow weather conditions in different regions, and ensures the safe and stable operation of the photovoltaic system throughout the year.

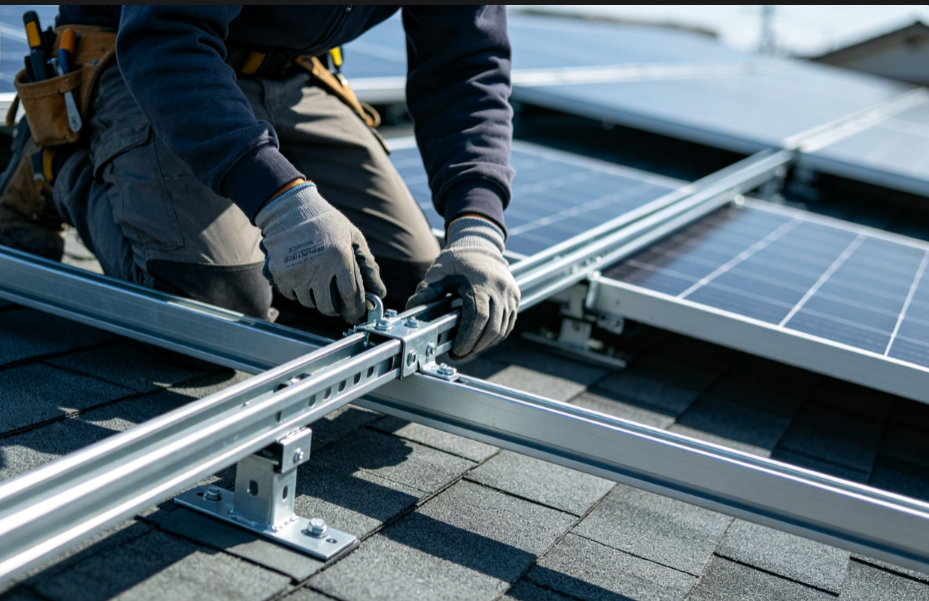

Discuss the Compatibility Between 6063-T5 Frames and Solar Mounting Systems

Adapts to Mainstream PV Mounting Accessories

6063-T5 extrusion profile can be customized T-groove, card groove, flat clamping surface and other structures, perfect for photovoltaic blocks, brackets, hooks, bolts and other standard installation accessories, universal.
Standardized profile size and structure design can realize accurate engagement of accessories, high installation fit, no loosening and deviation problems, and greatly improve the overall assembly stability of photovoltaic system.

Profile Size Accuracy Assurance Assembly Fit

The high-precision extrusion process can control the size error of 6063-T5 frame in a very small range, and the parameters such as groove position, wall thickness and splicing angle are accurately unified to avoid assembly failure caused by size deviation.
Uniform profile tolerance can ensure the installation consistency of batch photovoltaic modules, so that the whole support system is uniformly stressed, and problems such as frame deformation and component damage caused by local stress concentration are avoided.

Structural Adaptation Advantages for Load Transfer

6063-T5 frame rigidity balance, can evenly transfer wind load, snow load to the support and roof structure, will not appear local stress overload situation, improve the wind and snow resistance of the whole photovoltaic system.
Reasonable profile structure can disperse external forces such as temperature difference deformation and vibration, reduce the wear of components and brackets, maintain the stability of the system structure for a long time, and prolong the service life of the whole photovoltaic equipment.

Adapting Design of Anti-corrosion and Grounding System

With insulation gasket, sealant and other accessories, it can effectively isolate the electrochemical corrosion of aluminum alloy and stainless steel firmware, avoid local corrosion caused by heterogeneous metal contact, and protect the integrity of the frame structure.
The profiles can be adapted to special grounding clips and conductive accessories, penetrate the surface insulation coating to achieve reliable grounding, meet electrical safety specifications, and ensure the electrical safety and operation stability of household photovoltaic systems.

Compare 6063-T5 Aluminum Frames with Other Frame Materials

Contrast 6061 Aluminum Alloy Frame

6061 aluminum alloy has higher strength, but it is difficult to extrude, it is difficult to process the complex and precise structure required for photovoltaic frames, the surface flatness and fineness are poor, and the finished product is not beautiful and accurate.
6063-T5 on the basis of strength to meet household needs, formability, surface texture, cost-effective better, more suitable for photovoltaic frame refinement, batch production and household installation scenarios.

Compare 6005 Aluminum Alloy Frame

6005 aluminum alloy strength is slightly higher than 6063-T5, mostly used for photovoltaic load-bearing bracket, main beam structure, but the molding difficulty is high, the thin-walled precision structure processing accuracy is insufficient, and it does not meet the refined requirements of the frame.
6063-T5 can easily form complex structures such as drain groove, installation card groove, etc., with higher size accuracy and better appearance texture. It is the best choice for photovoltaic module frame. The two parts are divided into different parts.

Contrast Steel Frame

Steel has high strength but high density. The weight of steel frame far exceeds that of aluminum frame, which will greatly increase roof load. Most residential buildings need to reinforce roof, which will increase installation cost and construction difficulty.
Steel is easy to rust, need frequent anti-corrosion maintenance, long-term use is prone to rust deformation, and 6063-T5 aluminum alloy with anti-corrosion characteristics, lightweight maintenance-free, comprehensive cost performance far more than steel.

Stainless Steel vs. Composite Frame

Stainless steel frame has excellent corrosion resistance and strength performance, but it is heavy, expensive, and extremely difficult to process. It is impossible to make precision photovoltaic frames in batches. It is only suitable for special extreme scenarios.
Plastic, composite frame lightweight, but anti-aging, impact resistance is poor, long-term exposure is easy to brittle deformation, and 6063-T5 stability, durability, cost-effective comprehensive leading, suitable for household mainstream needs.

Consider Manufacturing Quality When Choosing 6063-T5 Aluminum Frames

Quality Control of Aluminum Rod Raw Materials

High-quality frame starts from qualified aluminum rod. Raw materials need to strictly control the proportion of magnesium and silicon core elements, strictly control the content of impurities such as iron and copper, and avoid impurities affecting the strength, corrosion resistance and surface texture of the profile.
Regular manufacturers will use certified aluminum rods, and each batch of raw materials will be tested for ingredients to ensure stable profile performance from the source and eliminate frame deformation, corrosion and fading caused by defective raw materials.

Extrusion Accuracy and Size Tolerance Control

The structural accuracy of card groove, drain groove and installation hole of photovoltaic frame is very important. Strict size tolerance can ensure smooth assembly of components and avoid assembly problems such as loose splicing and loose sealing.
High-quality manufacturers rely on precision molds and intelligent extrusion equipment to strictly control the size deviation of profiles, ensure the uniformity of product specifications for each batch, and improve the assembly efficiency and finished product qualification rate of photovoltaic modules.

T5 Heat Treatment Process Control

The temperature and time of T5 aging process directly determine the hardness and toughness of the profile. Improper process control will lead to soft deformation and brittle cracking of the profile, which cannot withstand outdoor mechanical load.
Reliable manufacturers equipped with intelligent temperature control aging furnace, with mechanical performance testing equipment, accurate control of process parameters, to ensure that the mechanical properties of each profile standards, to meet long-term outdoor use standards.

Surface Treatment Process Quality Acceptance

Anodic oxidation, powder coating and other surface technology thickness, uniformity, sealing, directly determine the frame weather resistance and service life, poor technology is prone to color loss, peeling, corrosion damage and other problems.
For complex scenes such as coastal and high humidity, it is necessary to thicken the oxide layer or adopt high-end protective technology, pass the salt fog and weather resistance test acceptance, and ensure that the frame adapts to various outdoor harsh environments.

Precision Machining and Quality Certification

The secondary processing such as frame cutting, drilling and milling shall be precise and standardized to eliminate burrs, hole offset, splicing dislocation and other problems, ensure assembly accuracy and structural stability, and improve the quality of finished products.
High-quality products need to pass many tests such as mechanics, corrosion resistance, weather resistance, etc., with ISO quality system and photovoltaic industry certification, perfect quality inspection process can guarantee the long-term reliable operation of the frame.

Conclusion

6063-T5 aluminum alloy with balanced strength, lightweight, corrosion resistance and weather resistance, perfect for the use of household solar panel frame needs, adapt to various installation scenarios and climate environment.
At the same time, it has good formability, high cost performance and green recyclability. With standardized quality control system, it has become the mainstream material selection of household photovoltaic frame, providing solid guarantee for long-term stable operation of photovoltaic system.
