Aluminum powder coating is the mainstream environmental protection surface treatment process in the construction and industrial fields. With excellent durability, aesthetics and environmental protection properties, it gradually replaces the traditional painting and anodizing process. The process is suitable for all kinds of aluminum profile deep processing scenarios, and the comprehensive use advantages are very prominent.

What Is Powder Coating on Aluminium?

Powder coating for aluminum profiles is a new type of dry environmental protection coating technology, which abandons the traditional liquid paint application mode and relies on polymer powder materials to form protective decorative coatings on aluminum surfaces.  The whole process is pollution-free and has strong adhesion. It is a high-performance surface treatment scheme suitable for the characteristics of aluminum profiles.
With stable and reliable physical properties, anti-corrosion ability and decorative effect, the process is widely used in core scenes such as building curtain walls, outdoor profiles, industrial equipment, etc., and has become an indispensable core process for modern aluminum profile processing.

How Does the Powder Coating Process Work?

Profile Surface Pretreatment

Surface pretreatment is the core key to determining the quality of finished sprayed products. Through multiple processes such as acid and alkali cleaning, water rinsing, degreasing and decontamination, the oil, dust and native oxide layer attached to the aluminum surface are completely removed.  Effectively eliminate coating blistering, peeling and other quality problems caused by impurity residues.
 The conventional high-end spraying process will be combined with chromium-free conversion film treatment technology to create a fine micro-rough structure on the aluminum surface, greatly improving the bonding strength between the powder coating and the substrate, and laying a solid foundation for the adhesion and corrosion resistance of the subsequent coating.

Electrostatic Powder Coating

The polyester, epoxy and other suitable conditions of powder coating into the electrostatic spray gun, through professional equipment for the powder to give negative charge, so that the powder evenly adsorbed on the surface of grounded aluminum profiles.  Even in the face of corner, hollow and groove structures of special-shaped profiles, it can also realize full coverage without dead angle spraying.
Spraying process splash, excess powder can be collected through professional recycling system, filtration, reuse, overall material utilization rate of more than 95%.  It not only effectively reduces the material cost of mass production, but also practices the green and environmentally friendly production concept.

High Temperature Curing Molding

The aluminum profiles that have completed the powder spraying operation will be sent to a constant temperature oven for high temperature curing treatment and baked at a constant temperature of 180 to 200 degrees Celsius for 10 to 20 minutes.  The powder particles are fully melted, flowed and spread to form a smooth and uniform initial coating on the surface of the profile.
During the high-temperature baking process, a stable cross-linking chemical reaction occurs inside the powder, which eventually solidifies to form a tough and dense thermosetting polymer film.  The coating is deeply bonded to the aluminum substrate and has stable physical strength and chemical corrosion resistance.

Cooling and Finished Product Testing

After high temperature curing, aluminum profiles need to be cooled by natural cooling or forced air cooling, and the internal temperature is slowly released to avoid defects such as coating deformation, cracking and wrinkling caused by high temperature residues. After the profile is cooled completely, the physical properties and appearance texture of the coating tend to be stable.
The staff will carry out all-round spot check and full inspection on the finished profiles, accurately detect the core indicators such as coating thickness, color difference, gloss, adhesion, hardness, etc., strictly eliminate defective products, and ensure the uniform quality and performance of the finished products.

Why Is Powder Coating a Popular Finish for Aluminium?

Protection and Durability

The dense thick layer formed by powder spraying can make up for the original short board of aluminum profile which is easy to oxidize, scratch and corrode in an all-round way, and effectively resist external damage such as daily bump, mechanical wear, rain corrosion, etc. and the environmental adaptability and the overall stability of the aluminum profile are greatly improved.
Sprayed aluminum profiles made of high-quality powder and standard process can be used for 20 to 30 years in outdoor and stable service life, without frequent maintenance and renovation for long-term service.And that durability and the stability are far superior to those of the traditional surface treatment process such as spray paint, simple coating and the like.

Aesthetic Choice of Appearance

The powder spraying process has a very rich appearance customization system, which can freely realize a variety of decorative effects such as solid color, matte, bright, metal matte, wood grain, stone grain, etc. Designed for extreme flexibility, it can be adapted to the aesthetic design needs of a wide range of architectural and industrial products.
The process has strong batch color matching stability, can be accurately matched with the unified color matching standard of a large-scale engineering project, and has extremely small batch production color difference. Can meet the requirements of the unity of the architectural design of personalized creativity and the overall project, the landing effect is excellent.

going green and environmental protection

Powder spraying adopts dry solvent-free construction mode in the whole process, with zero VOC harmful substance emission, no toxic gas and waste liquid pollution in the production process, which fully conforms to domestic and foreign environmental protection laws and regulations and green building certification standards. The production operation is safe, clean, green and low carbon.
The waste powder and the residual powder generated in the spraying operation can be completely recycled, the production waste is very little, the material utilization rate is high, and the energy consumption of the whole production is lower. It is a high-quality surface process suitable for modern industrial green production and sustainable development.

Price/Performance and Adaptability

The powder spraying process is highly suitable for automatic and large-scale assembly line mass production, and has the advantages of high processing efficiency, short production cycle and stable qualified rate of finished products. Can effectively reduce the labor and time cost for processing the aluminum profiles in large quantities, and has outstanding mass production cost performance.
The surface of the spray-formed coating is compact and smooth, stain-resistant and easy to clean, and there is almost no need for special maintenance in daily life, so that the problem of frequent breakage and fading will not occur. Greatly reduces the operation and maintenance and renovation cost of the aluminum profile in the whole life cycle, and has remarkable comprehensive economic benefit.

Adaptability of Complex Profiles

Relying on the core construction principle of electrostatic adsorption, the charged powder particles can comprehensively wrap the corners, grooves, hollow-out, bending and other complex structures of special-shaped aluminum profiles, thoroughly solving the problems of spraying dead corners and uneven coating existing in traditional coating.
Uniform, complete and compact protective decorative coatings can be formed on standard conventional profiles or special-shaped customized complex components.  and can perfectly meet the processing requirements of various personalized building shapes and special-shaped industrial profiles.

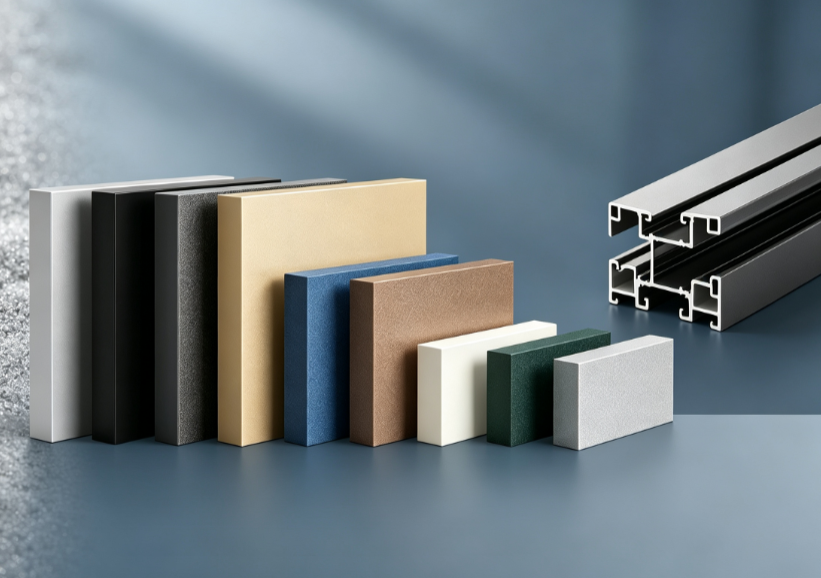

What Types of Powder Coatings Are Available?

polyester Powder Coating

Polyester powder is the mainstream core material of outdoor aluminum profiles for buildings. It has excellent UV resistance, aging resistance, color and light retention properties, and can adapt to complex outdoor climates such as wind and rain exposure and temperature difference for a long time. Long-term use is not easy to aging, fading, powdering.
This powder has a wide range of colors and textures, stable mechanical properties and strong adaptability, which can meet the protection and decoration needs of various outdoor scenes.Widely used in building doors and windows, external wall curtain wall, outdoor railings, courtyard profiles and other products.

Epoxy Powder Coating

Epoxy powder coating substrate adhesion performance is excellent, forming coating dense hard, acid and alkali resistance, oil resistance, chemical corrosion resistance outstanding, overall mechanical protection performance is stable and outstanding.  It is a high-quality coating material in the field of industrial corrosion protection.
The core short board of the powder has poor weather resistance, and aging phenomena such as powdering, fading and loss of light will occur rapidly after long-term outdoor use.Only suitable for indoor industrial equipment, chemical equipment coating, can also be used as aluminum profile bottom anti-corrosion primer.

Epoxy Polyester Mixed Powder Coating

Epoxy polyester mixed powder integrates the dual core advantages of epoxy and polyester powder, the comprehensive performance is balanced and stable, the coating flexibility is better than pure epoxy powder, and the basic weather resistance is also obviously improved, which is suitable for most conventional use scenarios.
This powder has a significant cost-effective advantage and can meet the basic protection and decoration needs of aluminum profiles in conventional environments. It is applicable to a wide range of scenarios. Widely used in indoor furniture, home appliances accessories, general industrial profiles and other performance requirements moderate scene.

Polyurethane Powder Coating

Polyurethane powder belongs to high-end aluminum profile coating materials. After spraying and curing, the coating surface is smooth and delicate, with soft gloss, excellent wear resistance, scratch resistance and weather resistance, texture and practicality.
The powder is suitable for all kinds of high-end buildings, coastal high salt fog, strong ultraviolet rays and other harsh use scenarios. It can resist wind and rain erosion, salt fog corrosion and ultraviolet irradiation for a long time, and maintain the appearance and structural performance of the profile for a long time.

Fluorocarbon Powder Coating

Fluorocarbon powder with high performance PVDF resin as the core raw material, is the top coating materials in the construction field, with more than 30 years of long-term color and light retention capacity, weather resistance, corrosion resistance, anti-aging performance stable industry top level.
It can effectively resist the continuous erosion of strong ultraviolet rays, coastal salt fog, heavy rain, wind and frost, and its performance is stable and does not decay.  It is specially applied to key projects with high durability requirements such as urban landmark buildings, high-end coastal projects and boutique curtain walls.

Powder Coating vs. Anodizing: Which Is Better?

Durability Versus Protection

Anodic oxidation molding of the surface dense hard, high hardness, with excellent scratch resistance, wear resistance, anti-mechanical friction performance, stable adaptation to high-frequency friction, high loss of industrial high-intensity operation scenarios.
Powder spraying relies on a complete and thick physical isolation coating, which can effectively block water seepage, acid and alkali corrosion, chemical reagent corrosion, and more comprehensive protection coverage. Under complex and harsh conditions such as humidity, salt fog and heavy pollution, the overall stability performance is more outstanding.

Appearance and Color Contrast

Anodized profiles have transparent and natural high-end original metal texture, simple and advanced style, but the color system is single and the texture is lacking, so it is impossible to realize the personalized decoration effect of thick color, color contrast and complex three-dimensional texture.
Powder spraying has perfect and rich color, luster and texture system, which can realize multiple effects such as pure color, matte, light, wood grain, metal matte, etc., and the color matching of large-scale project batch production is unified without obvious color difference.

Weather Resistance Versus Service Life

High-quality anodized profiles have stable basic outdoor weather resistance, long-term exposure in the natural environment is not easy to age, deformation, deterioration, can fully meet the outdoor use standards of conventional ordinary buildings.
High-end polyester and fluorocarbon spray profiles have greatly improved color retention and anti-aging performance, long-term sun exposure is not easy to fade, powder, lose light, longer durability, more suitable for high-end outdoor buildings, long-term service key projects.

Maintenance vs. Repair Difficulty Comparison

Anodic oxidation surface wear resistance, high stability, almost no special maintenance care, but once the surface scratches, damage can not be repaired renovation, subtle defects will also damage the overall appearance integrity.
Powder coating surface cleaning maintenance is convenient, daily stains can be directly wiped clean, local fine defects can be quickly repaired and renovated, the overall rectification construction difficulty is low, and the later operation and maintenance flexibility and practicality are more advantageous.

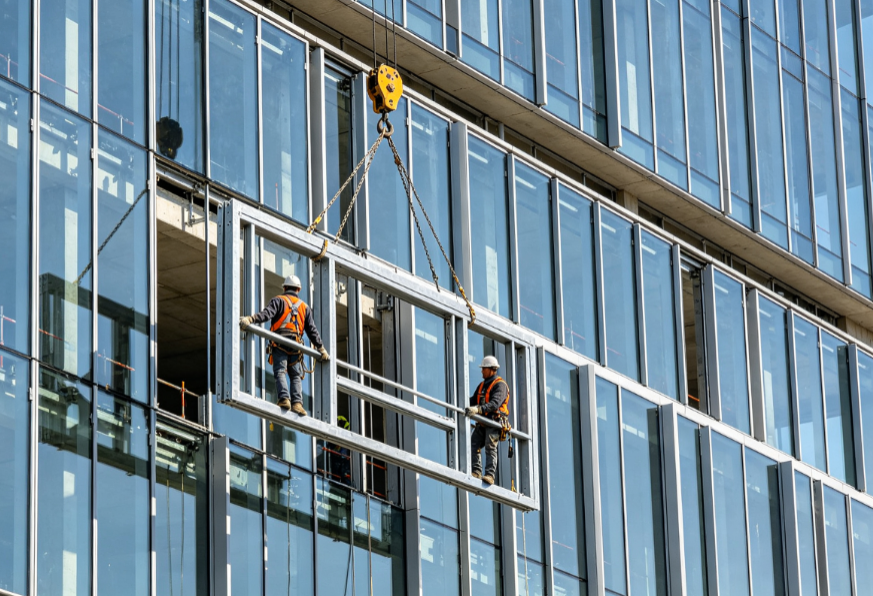

Common Applications of Powder-Coated Aluminium Profiles

Construction and Decoration Applications

Powder sprayed aluminum profile is the core material of modern building decoration, widely used in building doors and windows, external wall curtain wall, lighting roof and other facade structures, with excellent outdoor weather resistance, structural stability and high-end decorative texture.
At the same time, it is suitable for indoor partition, ceiling decoration, balcony railing, outdoor sunshade components and other multiple scenes. It has a wide range of styles and is not easy to deform, fade and age for long-term use. The service stability is very reliable.

Applications in Industrial Production

Mechanical equipment frame, operating workbench, safety fence, storage shelves and other industrial components, generally sprayed aluminum profiles, with oil resistance, easy to clean, structural strength stability, not easy to rust core advantages.
Modular industrial spray profiles are highly adaptable and flexible, supporting on-site free assembly, disassembly and layout transformation, and accurately adapting to the layout planning and upgrading needs of various production workshops and storage spaces.

Transport and Public Infrastructure Applications

Rail transit accessories, vehicle interior and exterior decoration profiles and other traffic materials, mostly powder coated aluminum, relying on the advantages of lightweight, high strength, strong corrosion resistance, effectively reduce the operation and maintenance cost, greatly extend the service life of components.
Public infrastructure materials such as bus stops, outdoor signboards, street leisure facilities, etc., can realize long-term stable maintenance-free operation by relying on the characteristics of stable color, wind and rain erosion resistance and frequent maintenance-free.

Applications in New Energy Fields

Photovoltaic support, wind power equipment shell, new energy supporting profiles, generally using weather resistant powder coating process, excellent UV resistance, anti-aging, anti-sand performance, can adapt to the harsh outdoor operation and maintenance conditions.
The dense and stable spray coating can effectively resist extreme weather erosion such as rainstorm, exposure, salt fog, sand storm, etc., stabilize the overall structure of new energy equipment, and effectively reduce the loss rate and failure rate of outdoor equipment.

People's Livelihood and Special Scene Application

Office partitions, commercial display cabinets, outdoor leisure furniture and other livelihood products, relying on the high face value, high durability and easy cleaning characteristics of sprayed aluminum profiles, greatly improve the product texture and market core competitiveness.
Medical clean workshop, coastal high corrosion engineering, high temperature operation scene and other special fields, can be matched with corresponding functional special powder, accurately meet the antibacterial, salt spray resistance, high temperature resistance and other personalized special use requirements.

How to Choose the Right Powder Coating for Your Project

Selection According to the Use Environment

For indoor dry, non-corrosive, mild light conventional conditions, the choice of cost-effective epoxy polyester mixed powder can fully meet the basic protection of aluminum profiles and long-term stable use of the core requirements.
Standard polyester powder is suitable for conventional outdoor scenes, which can cope with daily wind and rain and light erosion; in harsh environments such as coastal and heavy industrial corrosion, it is necessary to upgrade super weather resistant polyester or high-end fluorocarbon powder to ensure long-term stable service of profiles.

Selection According to Appearance Requirements

It is necessary to combine the overall design style of the project to determine the color, gloss and texture style of the profile. Large-scale engineering projects must unify the powder procurement batch to eliminate the defects such as color difference and uneven gloss from the source.
Special texture coatings such as wood grain, metal and matte can be flexibly selected to effectively cover the fine defects in the production and processing of aluminum profiles, optimize the appearance texture of profiles, and adapt to various high-end and personalized architectural design scenarios.

Selection According to Function and Performance

For profile components with high frequency friction, long-term stress and easy collision, special powders with high hardness, high flexibility and impact resistance should be selected to effectively avoid quality problems such as coating cracking, peeling and damage.
For special scenes such as medical cleaning, high temperature operation, public crowded areas, etc., functional powders with antibacterial, high temperature resistance, graffiti resistance and easy cleaning can be selected to accurately match the specific use requirements of the scene.

Reference to Industry Quality Standards and Warranties

The powder products with Qualicoat authoritative certification shall be preferred for architectural spraying aluminum profiles, and the weather resistant materials of Grade 1 to Grade 3 shall be selected according to the project working conditions to ensure product compliance and long-term durability.
Priority is given to brand powder products that can provide long-term warranty for many years, control quality from the source of material, and comprehensively avoid various quality hazards and after-sales problems such as fading, powdering and coating peeling in the later stage of profiles.

Combine Budget and Full Cycle Costs

High-end fluorocarbon, super weather resistant polyester powder single purchase cost is high, but weather resistance and wear resistance, almost no maintenance, the whole life cycle operation and maintenance cost is extremely low, the comprehensive cost performance is excellent, suitable for long-term service key projects.
For short-term use and temporary construction of ordinary engineering projects, conventional economic powder can be selected, reasonable balance of profile performance and procurement budget, accurate control of costs, and unnecessary waste of resources.

Quality Standards for Powder-Coated Aluminium

International Mainstream Quality Certification Standards

Qualicoat is the authoritative international standard in the field of aluminum profile coating in the world. The product performance is divided into three grades. The higher the grade, the better the comprehensive performance of weather resistance, corrosion resistance, color retention and aging resistance.
GSB and AAMA two industry standards are respectively adapted to the mainstream building materials market in Europe and North America, accurately standardizing the three core indicators of appearance texture, weather resistance and corrosion resistance of sprayed profiles.
ISO series of national standards focus on the field of industrial corrosion protection, and specifically formulate inspection specifications for industrial spray aluminum profiles, providing standardized basis for quality acceptance and quality control of industrial profiles.

Core Quality Inspection Project

Mechanical property testing includes coating adhesion, surface hardness, impact strength, coating flexibility and other tests, all-round guarantee coating structure stability, not easy to crack, fall off, damage.
Corrosion and weather resistance test Through neutral salt spray, damp heat aging, ultraviolet accelerated aging and other tests, accurately simulate the environmental loss of long-term outdoor service of profiles, scientifically verify the durability of products.
The quality inspection link will strictly detect the appearance indicators such as coating thickness, color difference value, gloss uniformity, etc. to ensure the uniform appearance, specification standard and performance compliance of the finished products produced in batch.

Actual Value of Quality Standards

Sprayed aluminum profiles certified by authoritative standards can enjoy 10 to 30 years of long-term warranty service, which can effectively avoid common quality problems such as fading, peeling, corrosion and peeling in the later period.
The qualified spray profiles can successfully meet the qualification requirements of green building evaluation and project bidding, and greatly reduce the risk of unqualified project acceptance and rework rectification.

Common Powder Coating Defects and How to Prevent Them

Coating Peeling, Poor Adhesion

The core performance of coating peeling and insufficient adhesion is surface peeling, local peeling and whole peeling. The main causes are incomplete cleaning of profiles, non-standard pretreatment process and residual oil impurities on the surface.
In production, it is necessary to improve the whole pretreatment process of degreasing, cleaning, passivation and drying, strictly control the standard of each process, ensure that the surface of the profile is clean and impurity-free, and improve the adhesion stability of the coating from the root.

Orange Peel, Uneven Surface Defects

The coating surface of profiles has orange peel ripple, uneven and rough feel, which are mostly caused by process errors such as uneven powder coating thickness, misadjustment of spray gun parameters and abnormal curing temperature.
During construction, it is necessary to optimize the core parameters such as spraying voltage, air pressure and gun distance, accurately match the curing temperature and baking time, and match the high-quality powder with excellent fluidity to effectively improve the coating flatness.

Color Difference, Batch Color Difference Defect

The same project profiles appear light and dark color difference, batch color difference, gloss problems, mainly from powder batch mixing, coating thickness uneven, curing degree is not uniform and other process deviation.
The whole project uses the same batch of powder raw materials uniformly, strictly controls the coating thickness interval, regularly calibrates the oven temperature control equipment, ensures the uniform curing effect of all profiles, and eliminates the color difference problem.

Pinholes, Shrinkage Defects

Fine pinholes, local shrinkage pits and other defects appear on the coating surface, which are mainly process defects caused by moisture and moisture in the profile, residual oil impurities on the surface and excessive dust in the spraying workshop.
Before spraying, it is necessary to ensure that the profile is completely dried and dehumidified, maintain a clean and dust-free environment in the spraying workshop, and select degassed powder to completely eliminate coating defects caused by impurities.

Ionization Roughness, Coating Sanding Defects

The surface of the coating is rough and the ionization defects of fine star-shaped patterns appear, which are mostly caused by improper operation such as too high spraying voltage, too thick powder accumulation, excessive electrostatic ionization, etc.
Reasonable adjustment of electrostatic spraying parameters in the construction process, standardized control of spray gun and profile spraying distance, relying on automatic equipment stable operation, effectively avoid coating rough sand defects.

Coating Embrittlement, Poor Impact Resistance Defects

The coating has poor impact resistance, brittle crack and falling off after slight collision, which is mainly caused by improper powder selection, insufficient coating thickness and excessive curing temperature.
It is necessary to match high-toughness special powder according to the profile use scenario, strictly follow the manufacturer's standard curing parameters, eliminate the problem of high temperature over-baking, and ensure that the coating is flexible, impact resistant and not easy to crack.

Fading, Chalking Defects

Outdoor spray profile short-term rapid fading, surface powdering loss of light, the core reason is the misuse of low weather resistance powder material, or the curing process is not up to standard, resulting in a significant attenuation of the weather resistance of the coating.
All outdoor service profiles are uniformly selected from super weather resistant polyester or fluorocarbon powder, and the curing process parameters provided by the powder manufacturer are strictly followed to ensure the long-term weather resistance and aging resistance of the profiles.

Conclusion

With the core advantages of green environmental protection, ruggedness and durability, multi-dimensional appearance and strong scene adaptability, aluminum powder coating comprehensively covers many fields such as building decoration, industrial manufacturing, new energy, public infrastructure, etc. It is the current aluminum surface treatment process with high cost performance.
