Aluminum windows and doors are the mainstream enclosure building materials for modern home furnishing and industrial furnishing, which are suitable for high-rise residential, commercial and office buildings and other diversified scenes. Aluminum window categories on the market parameters are complicated, most owners are prone to choose the wrong style, configuration, high energy consumption and maintenance costs. This article from the performance, style, cost of the whole dimension of the dismantling of the selection logic, to help people with zero basis for accurate selection of windows.

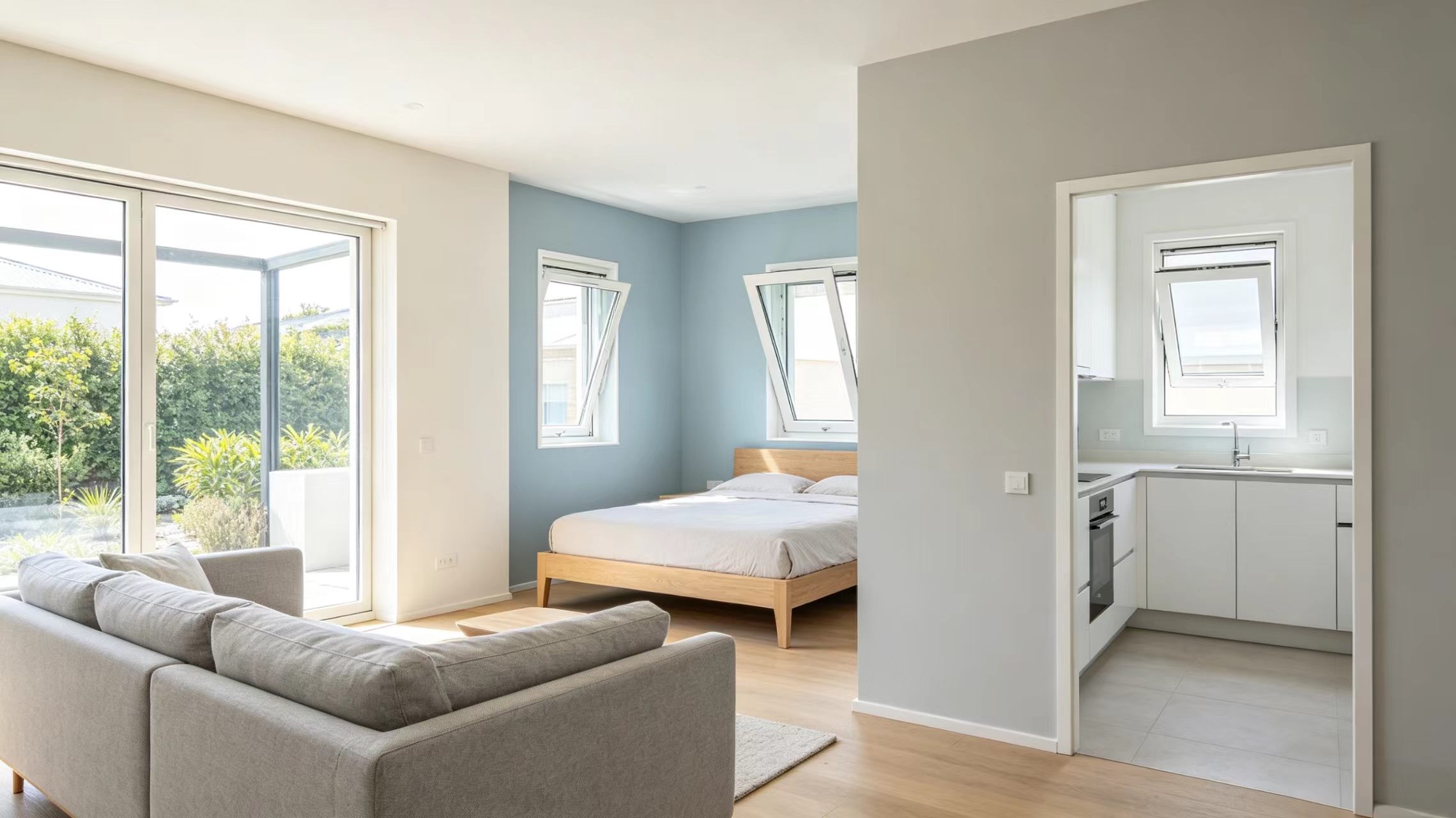

Why Choosing the Right Aluminum Window System Matters

Energy Saving and Low Carbon With the Use of Energy Consumption Impact

Compliant aluminum windows can block hot and cold air conduction, stabilize the indoor temperature, and reduce the start and stop frequency of air conditioning and heating equipment. Long-term use can significantly reduce energy consumption of water and electricity at home and office space, which is in line with the green building energy-saving norms.
Inferior non-insulated aluminum windows are prone to condensation on the window edges and air leakage through the gaps. Large fluctuations in room temperature throughout the year will continue to increase daily HVAC expenditures and aggravate the carbon emission burden of the building.

Durability and Maintenance Costs

Primary aluminum alloy comes with natural antioxidant and corrosion-resistant properties, unlike wood windows that are subjected to moisture decay and plastic windows that are aged and brittle at high temperatures. With compliant surface technology, outdoor use can be done for decades without deformation or cracking.
Low-end recycled aluminum profiles uneven wall thickness, high impurity content, the use of two or three years will fade, weld cracking. Later, frequent replacement of hardware, the entire window repair, comprehensive maintenance costs far more than high-quality aluminum.

Structural Load-bearing and Human Security

Aluminum alloy has excellent tensile strength and can be used as large glass windows and floor windows to widen the indoor viewing and lighting area. High-rise, coastal windy areas, compliant profiles can withstand the impact of wind pressure, to avoid the risk of glass falling off.
Non-standard thin-walled aluminum window deformation resistance is poor, windy weather window frame is very easy to twist and shift. Not only is the sealing ineffective, but also produces high-risk safety hazards such as glass explosion and window frame falling off.

Appearance Adaptability and Architectural Premium Ability

Aluminum windows support wood grain, frosted, metal matte and other full-color customization, suitable for new Chinese style, minimalist modern and other types of building facades. Uniform window color matching can optimize the overall value of the building and enhance the aesthetics of the building.
Inferior custom aluminum window color matching color difference, frame shape old, can not be adapted to the refined façade. After the delivery of the house will lower the overall quality of the house, directly affecting the valuation of second-hand houses and stores.

Full-cycle Input Cost-effective Control

High-quality aluminum windows have a high unit price, but they are suitable for all climatic environments and have a service life of more than 40 years. No need for frequent renovation and painting, long-term comprehensive use of lower costs.
Low-priced engineering models of aluminum windows to save money in the early stage, the late leakage of wind and water seepage, hardware damage problems occur frequently. Superimposed maintenance, replacement costs, the full cycle of spending much higher than high-quality finished aluminum windows.

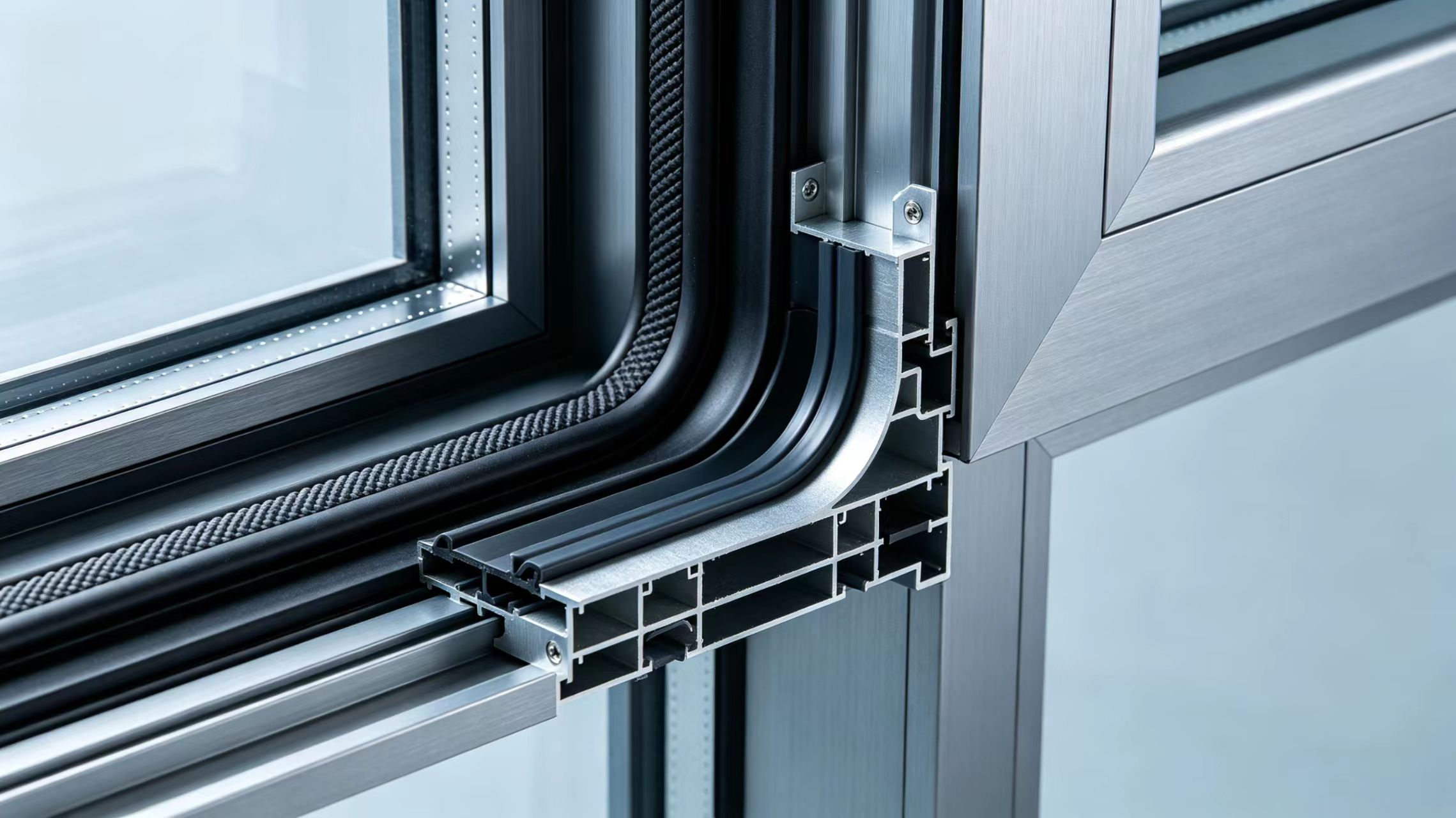

Understanding Aluminum Window Systems

Extruded Aluminum Profile Frame

Profile is the whole window load-bearing skeleton, divided into three major structures: frame, fan material, center jerks. The wall thickness of national standard home decoration is ≥1.8mm, and the wall thickness of high-level industrial installation should be upgraded to more than 2.0mm.
Multi-cavity internal structure can weaken the airflow convection, assisting in improving the heat insulation and sound insulation effect. Cavity guide groove is molded in one piece, efficiently discharging rainwater and preventing water from accumulating and seeping around the window.

Nylon Thermal Insulation Components

Glass fiber PA66 nylon heat-insulating strips isolate the two layers of aluminum inside and outside the window frame, cutting off the metal heat-conducting path. High-quality heat insulation strip is resistant to high temperature without deformation, suitable for four seasons of temperature difference environment.
Low-end PVC plastic heat insulation strip is easy to aging and fracture, short-term direct failure of the bridge structure. When choosing and selecting, it is preferable to recognize the original nylon heat insulating strips with anti-counterfeiting marking.

Insulating Tempered Glass Components

The glass is divided into single-glass, double-glass and triple-glass insulating styles, with inert gas filling to optimize the heat insulation effect. Double tempered insulating glass is the mainstream choice for homes and is suitable for most urban climates.
For street buildings and alpine areas, triple insulating laminated glass is preferred. It can simultaneously strengthen sound insulation, impact resistance and self-blast prevention.

Sealing and Waterproofing Accessories

High-end aluminum window adopts EPDM adhesive strip, with strong rebound sealing and resistance to UV weathering and aging. Layers of sealing design, respectively, to prevent outdoor rainwater, outdoor airflow penetration into the interior.
Recycled rubber rubber strip is cheap, half a year will be hardened and cracked leakage. The use of low-cost recycled rubber sealing strip is strictly prohibited in rainy and windy areas.

Matching Opening and Closing Hardware Fittings

Including hinges, handles, locks, tracks, a full set of opening and closing accessories, determining the smoothness of window opening and closing and anti-theft level. Big brand hardware anti-corrosion rust, opening and closing service life of up to tens of thousands of times.
Miscellaneous thin tin hardware insufficient load-bearing, large window opening and closing is very easy to sagging and jamming. High-level large-size windows, must be equipped with thickened stainless steel load-bearing hardware.

Outdoor Protective Surface Coating

The special surface protective coating can isolate salt, acid rain and ultraviolet rays, protect the aluminum substrate in all aspects, and avoid aluminum oxidation and rust. At the same time, it enriches the texture of the window frame and accurately matches the overall decorating style of the building facade.
The weathering service life of all kinds of surface layer technology is different, and the windows of the building facade give priority to the selection of high-weathering coating technology. Reduce the fading of window frames and peeling of paint from the source, and save the cost of later renovation and maintenance.

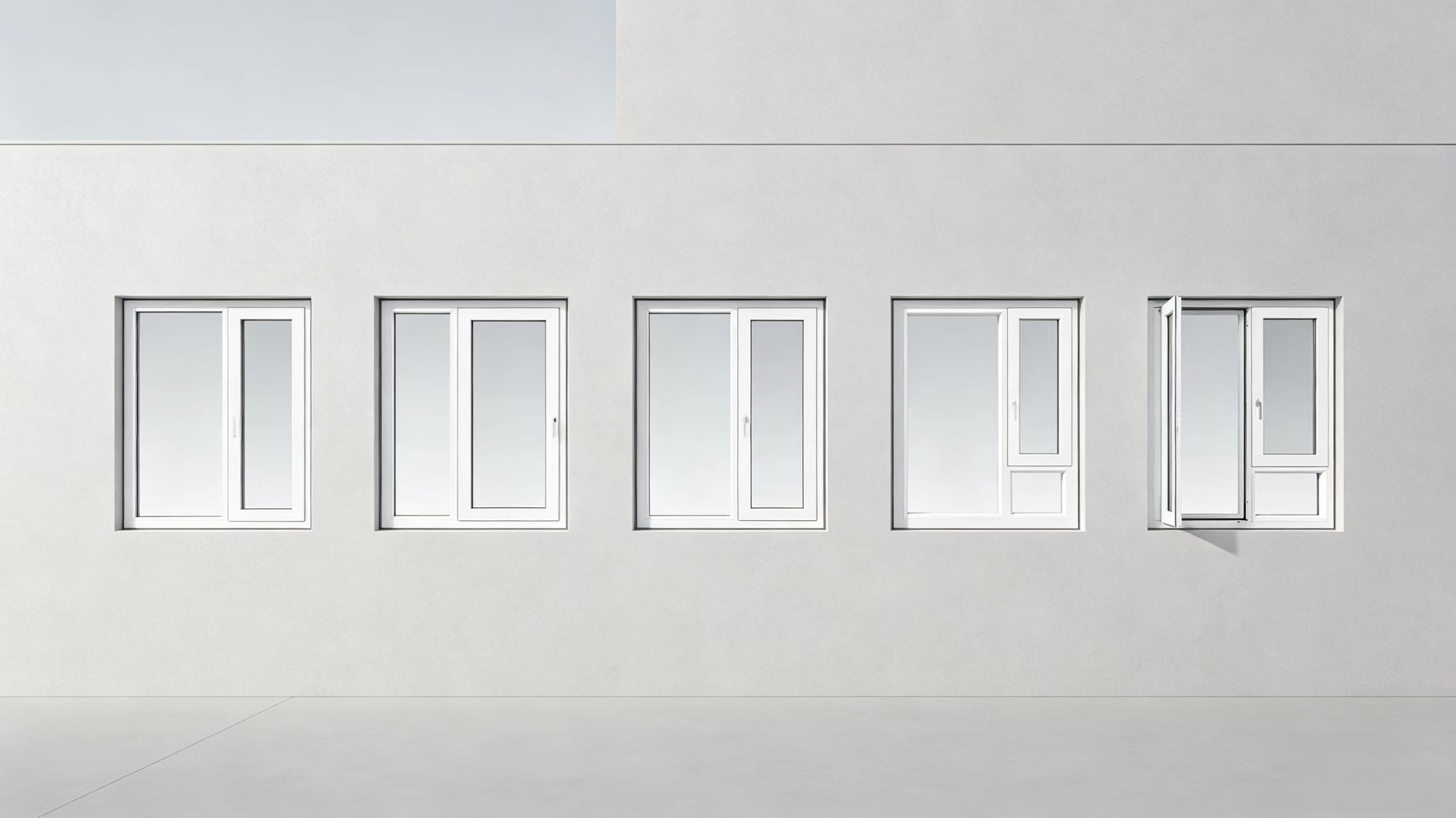

Choosing the Right Window Opening Style

Casement Window

The side hinges fix the window sash, realizing one-way opening and closing of the outer side, with excellent windproof and seepage-proof performance of the compression sealing structure; with the linkage multi-point lock hardware, it can upgrade the level of home burglary prevention and airtightness in an all-round way.
With sufficient open air cross-section, the dirty indoor air can be quickly replaced in rainy weather; high-rise buildings installing casement windows must be equipped with fall-proof hinges to avoid the safety risk of windows falling from height from the hardware.

Multifunctional Window with Internal Opening and Reversing

European-style multifunctional dual-purpose structure, supporting indoor casement and upper micro inverted opening and closing modes. The slightly inverted state can realize safe ventilation in rainy days, and at the same time physically prevent children from exploring the outside fall, which is more protective.
The full interior opening and closing design allows you to clean the glass façade without leaving home, which is suitable for the cleaning needs of high-rise residential buildings, and is also the mainstream window type with the highest popularity rate in home decoration.

Top-hung Casement Window

The top of the window frame is hinged and fixed, and the lower end of the sash is tilted outward to open, so that rainwater can't penetrate into the room against the flow, which is suitable for kitchen and bathroom aisles, equipment wells, and other small cross-section ventilation and lighting points.
The opening and closing angle is controllable, the airflow is gentle and soft without direct blowing, the space privacy is excellent, and it is mostly used in the low-floor rooms on the street and the public corridors to assist ventilation and lighting.

Lower-hung Inverted Window

The lower part of the sash is hinged and fixed, and the upper part is tilted towards the interior for ventilation, which is mostly used in underground storage rooms and low-floor accessory storage spaces. The airflow is low and gentle into the house, and the ventilation safety coefficient is higher.
There is no prying force point on the outside of the window, and the anti-theft performance is better than that of the conventional casement window; however, the light area of the casement window is limited, and it is not recommended to be used as the main viewing and lightening window of the living room and master bedroom.

Left and Right Sliding Window

The window sash opens and closes horizontally along the track without occupying internal or external space, suitable for narrow balconies, embedded windows and other restricted installation scenarios. Push and pull smooth damping, the elderly and children can easily operate.
The gap of the track can not realize the full range of airtight, airtight, windproof, sound insulation performance is weaker than the casement window; suitable for the windless dry urban areas in the south, the office of the secondary function of the room for low-cost renovation selection.

Fixed View Window

No movable opening and closing fans, one-piece sealed fixed glass in the whole frame, simple and transparent border without sight blocking, airtightness, heat insulation and noise reduction, wind pressure resistance performance of the whole series of window types top match.
Window body has no independent ventilation ability, need to match with a small number of opening fan combination supporting the use of the main living room landscape elevation, building facade integration lighting modeling use.

Folding Linked Sliding Window

Multiple windows are linked and folded to the side, and the opening can be fully open, opening up the indoor and outdoor space permeability boundary, suitable for courtyard balcony, street stores, panoramic floor window scenes.
Customized linkage hardware is expensive, the track grooves are easy to accumulate dust and dirt, and the daily maintenance frequency is higher than that of conventional windows; in dusty and windy neighborhoods, it is not recommended to install folding linkage windows in large areas of the whole house.

Center-axis Rotating View Window

The center axis of the window body rotates to open and close, both sides of the glass can be conveniently cleaned and tended to, and the façade modeling is niche and advanced, suitable for boutique lodgings and high-end office buildings with customized façade design.
High complexity of waterproof construction process, expensive customization cost, very low adaptability rate for civil just-demand home decoration, only applicable to high-end facade personalized transformation projects.

Evaluate Thermal Insulation Performance

Width of Heat Insulation Strip Material Grade

25mm wider original PA66 glass fiber nylon heat insulation strip, thermal barrier performance is far better than the conventional 14mm narrow section of the heat insulation strip, high temperature resistance and deformation resistance, four seasons of the changing conditions without cracking, not out of groove.
Low-cost non-standard PVC plastic insulation strip softens at high temperatures, low-temperature brittle cracks, short-term directly lead to the failure of the thermal break structure, home facade window selection needs to be eliminated directly this kind of non-standard fittings.

Multi-cavity Profile Structure

Three-cavity and four-cavity profiles can isolate air convection, weakening the efficiency of heat and cold exchange layer by layer, and the heat insulation and pressure stabilization performance is much better than simple single-cavity aluminum.
The cavity is filled with flame-retardant thermal insulation cotton, which can lock the cavity static air insulation, further weakening the frame convection heat exchange, and further enhance the energy-saving level of the whole window thermostat.

Insulating Glass Supporting Thermal Insulation Configuration

Low-E optical coating, inert argon gas filling, polymer warm edge spacer, bear 70% of the thermal insulation efficiency of the window, only upgrade the profile, low glass, can not realize the whole house energy-saving quality.
Priority is given to three-glass and two-cavity insulating glass in the northern alpine area, with the original integrated warm edge spacer, completely eliminating the hidden danger of heat conduction and condensation in the glass edges and corners.

Multi-layer Closed-loop Sealing Tape Layout

High-end aluminum standard with three closed-loop sealing structure, blocking the outdoor hot and cold airflow along the gap penetration, reducing the airflow across the gap heat transfer, empowering the whole window long-lasting constant temperature and heat insulation.
The single simple seal only has the basic rainproof function, the window is weak in airtightness, and when the temperature difference between day and night is large, the internal and external airflow will be intercommunicated, which will greatly compromise the original thermal insulation efficiency of the broken bridge structure.

Standardized on-site Installation Process

The gap between the window frame and the wall is filled with special thermal insulation foam, blocking the wall and the window frame at the interface of cold and heat bridge conduction, foam outer layer supporting sealing and waterproofing process, taking into account the dual performance of thermal insulation and seepage prevention.
Field construction to save thermal insulation filling process, even if the profile, glass configuration up to standard, the window still continues to leak temperature, standardized installation to determine whether the factory thermal insulation parameters can take effect.

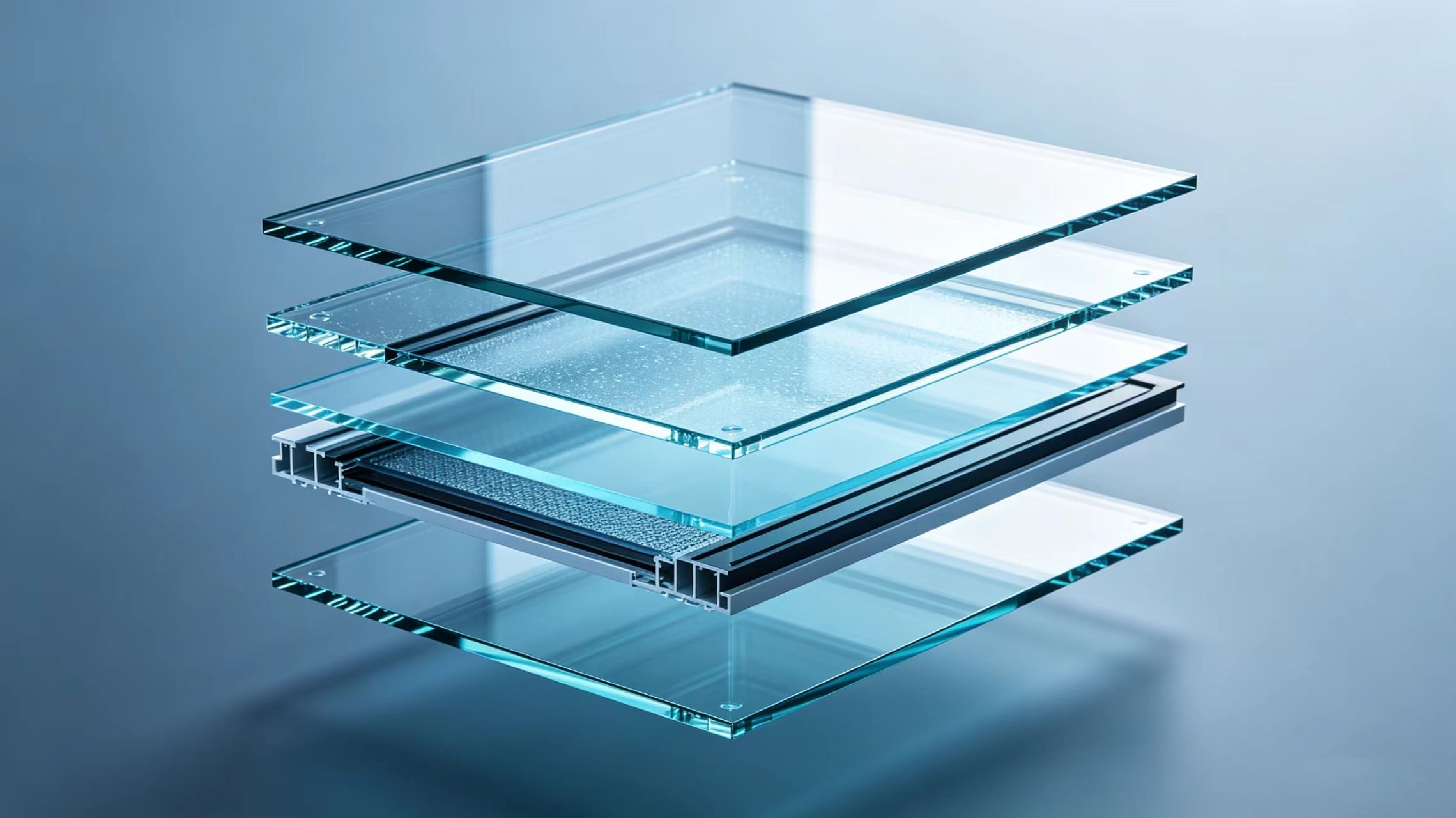

Selecting the Right Glass Configuration

Heat Transfer U-Value Insulation Indicator

The more layers and the better the air filling ratio, the lower the U-value of the glass, the stronger the heat preservation. The whole house is equipped with uniform parameter glass, the whole house room temperature control is more balanced and worry-free.
The U-value of the glass can be moderately relaxed for south-facing light windows, and the heat preservation parameters of the glass can be strictly controlled for north-facing shaded windows. Targeted ratio, optimize the whole house energy saving input cost-effective.

Solar Heat Gain SHGC Coefficient

Low SHGC coefficient glass is preferred in the hot south to block outdoor solar heat from entering the house. Reduce the frequency of air-conditioning start and stop to alleviate the problem of stuffy indoor heat in summer.
In the cold north, high SHGC glass is preferred. Leveraging sunlight heat energy heating, assisting in reducing the amount of gas heating consumption in the whole house in winter.

Visible Light Transmission VLT Rate

High transmittance white glass is preferred for transparent home space to maximize the introduction of natural light and optimize the sense of indoor lighting atmosphere. Dark-colored coated glass has low light transmission, which makes the interior dark all year round.
For stores and offices, light gray coated glass is preferred as a compromise between light and sun protection. The light-colored coated glass is a compromise between light transmittance and sun protection, and has the dual effect of providing a clear view and shading in summer.

Sound Insulation and Noise Reduction STC Grade

Ordinary insulating glass STC sound insulation level is general, can only weaken the wind sound and low-frequency noise. Traffic downtown must use laminated composite insulating glass for noise reduction.
The laminated damping layer can dissipate high-frequency human voice and automobile siren noise. Street bedrooms are preferred STC35 or higher grade noise reduction glass configuration.

High and Low Temperature Anti-condensation Performance

The high matching inflatable + warm edge glass has a strong ability to adapt to temperature difference, and is not easy to fog and condense water in the rainy and frosty seasons. The glass interior will not breed water mist and mold spots, prolonging the service life of the glass.
Poor sealing of low-matching insulating glass, the use of a year of fogging white laminated. Can not be repaired after-sale, can only be disassembled to replace the whole set of glass.

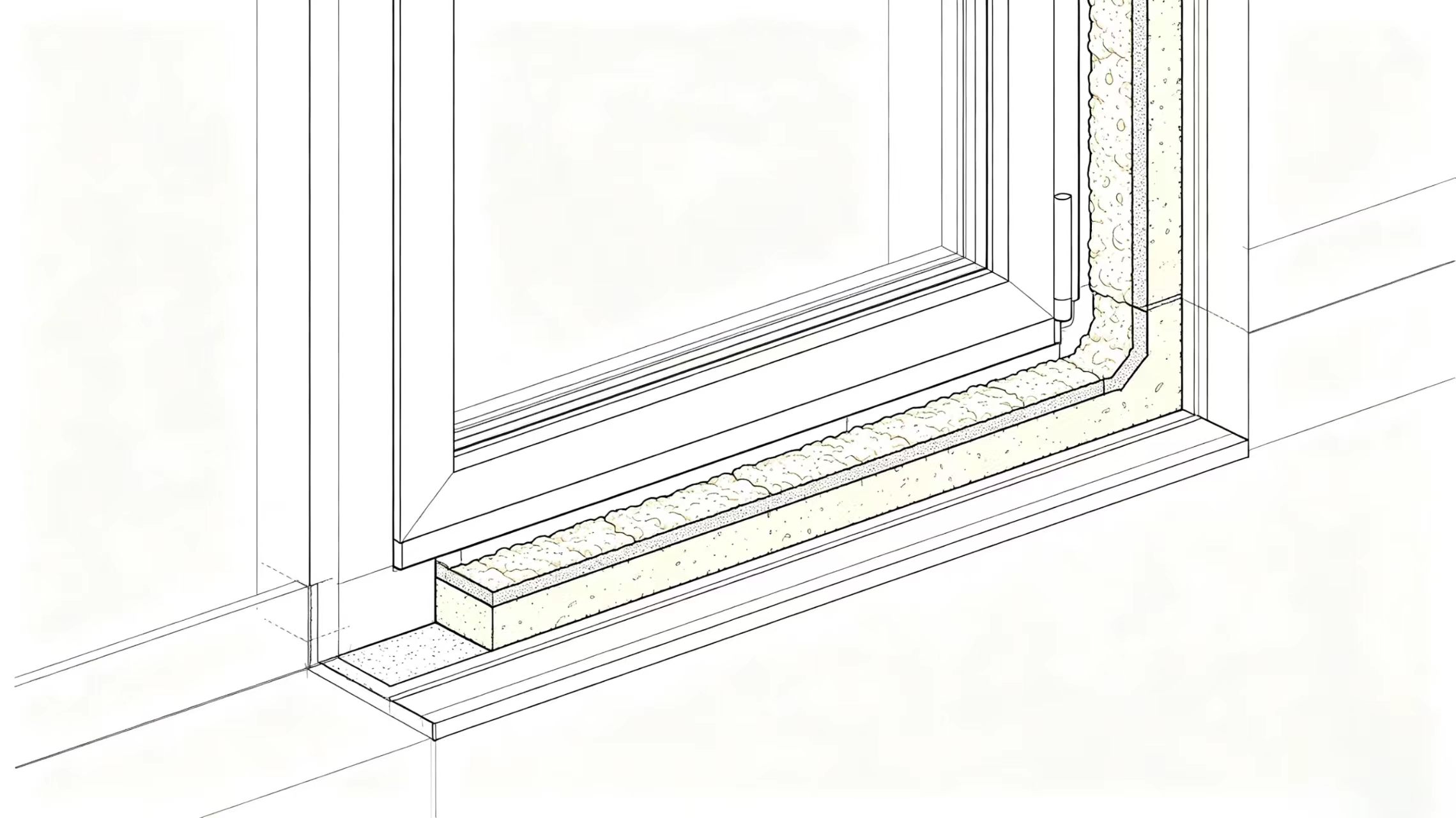

Verify the Structural Strength and Wind Pressure Resistance of Aluminum Windows

Primary Aluminum Grades and Tempering Process

Home furnishing national standard 6063-T5 aluminum toughness is balanced, suitable for regular mid-level civil window. High-level coastal windy areas, upgrade 6061 high strength industrial aluminum bearing.
Tempering process determines the hardness of aluminum, poor quality tempered aluminum is easy to bend by force. The original factory constant temperature tempering profiles, pressure resilience performance stability and durability.

Wall Thickness of the Profile Cavity to Strengthen the Structure

The wall thickness of the national standard exterior window is ≥1.8mm, and the wall thickness of the high-rise industrial uniform ≥2.0mm. The thickened sidewalls are matched with the built-in reinforcing bars to enhance the bending and pressure-resisting ability of the frame.
Minimalist narrow profile must be built-in one-piece reinforcing keel. The appearance of slim at the same time, to meet the hard standards of high-level outdoor wind pressure structure.

Integration of Heat-insulating Strips for Pressure-bearing Performance

High-quality nylon heat-insulating strips bite and firmly lock the inner and outer aluminum frames, and do not fall out of grooves or break under wind pressure. Maintain the structural integrity of the broken bridge, no delamination and deformation.
Inferior quality splicing insulation strips are disengaged by force, and the broken bridge is directly delaminated and disintegrated. Windy weather window frame delamination and distortion, safety risk linearly soaring.

Pre-embedded Fixed Points of Load-bearing Hardware

Thickened stainless steel pre-embedded hardware base, dispersing the wind pressure force on the window. After the multi-point lock is closed, the whole window and the wall will firmly bite into one force.
Simple single-point hardware force concentration, wind prying corners are very easy to deformation. Large size opening fan, must be installed with multiple load-bearing hinges to share the load.

Load-bearing Process of Glass Compression Bar Assembly

External solid pressure strip is installed to limit and fix the glass, resisting negative pressure and pulling off. Structural adhesive filling, fit the glass evenly share the wind pressure impact.
Inside the simple plastic pressure bar fixing force is weak, and the glass is easy to be unbuttoned in high wind. Outdoor facade is strictly prohibited to use the simple internal glass assembly process.

Comparing Surface Finishes and Appearance Options

Outdoor Weathering and Aging Resistance

Fluorocarbon, anodized weathering grade is top, suitable for coastal sun exposure harsh environment. General-purpose powder coating is suitable for mild outdoor environments in ordinary urban neighborhoods.
Low-cost transfer printing, simple spraying weak weathering, balcony sun exposure location is very easy to fade. Selection priority checking process outdoor weathering classification test report.

Salt Spray Anticorrosion Suitable for Environmental Grade

Buildings within one kilometer of the seaside, must choose oxidation, fluorocarbon double anti-corrosion process. Resist the sea breeze salt erosion, eliminate the window frame white spot rust problem.
Inland urban areas with slight air pollution, conventional powder coating is fully adequate. Balance the anticorrosion performance with the purchase budget of window and door facade decoration.

Difficulty of Daily Cleaning and Maintenance

Dense fluorocarbon, electrophoresis surface layer is not stained with dust and oil, and it is convenient to clean and take care of itself in rainy days. For the dusty road in the neighborhood, the high-density sealed surface layer process is preferred.
Poor-quality loose spraying surface layer is easy to embedded gray dirt, crevices are difficult to scrub. Long-term use of blackened old, affecting the whole house facade aesthetic degree.

Color Matching, Modeling and Decorative Suitability

Powder coating has the highest degree of freedom in color matching, and can be customized with net red Morandi and solid colors. It is suitable for modern, minimalist, light luxury and diversified home decoration facade.
Anodic oxidation is limited to metallic colors, and the style is inclined to simple industrial style. Wood grain transfer printing exclusive Chinese, rustic style fixed decoration scene use.

Cost-effectiveness of the Whole Cycle of Process and Cost

Gross <Powder <Electrophoresis <Wood grain <Oxidized <Fluorocarbon, the cost increases step by step. Short-term self-occupation is preferred to powder, long-term holding high-end selection of fluorocarbon oxidation.
Low-cost process of three-year renovation and refinishing, the comprehensive cost is higher. High-end technology once molding, life-long renovation-free, full-cycle cost-effective better.

Environmental Protection and Low Carbon Construction Properties

Compliance powder coating zero solvent low VOC, in line with green building environmental protection construction standards. No odor, can be installed into the soft furnishing construction.
Miscellaneous liquid paint painting heavy odor, formaldehyde evaporation cycle is long. The home owner decoration directly out of non-standard paint coating aluminum profiles.

Warranty of the Original Process

Powder warranty 10-15 years, oxidation warranty 20 years, fluorocarbon warranty 30-40 years. Warranty written into the contract, fading and peeling manufacturers free rework maintenance.
Small workshop custom painting without formal warranty, late fading rights without channels. Be sure to check the original factory warranty signing proof of the order.

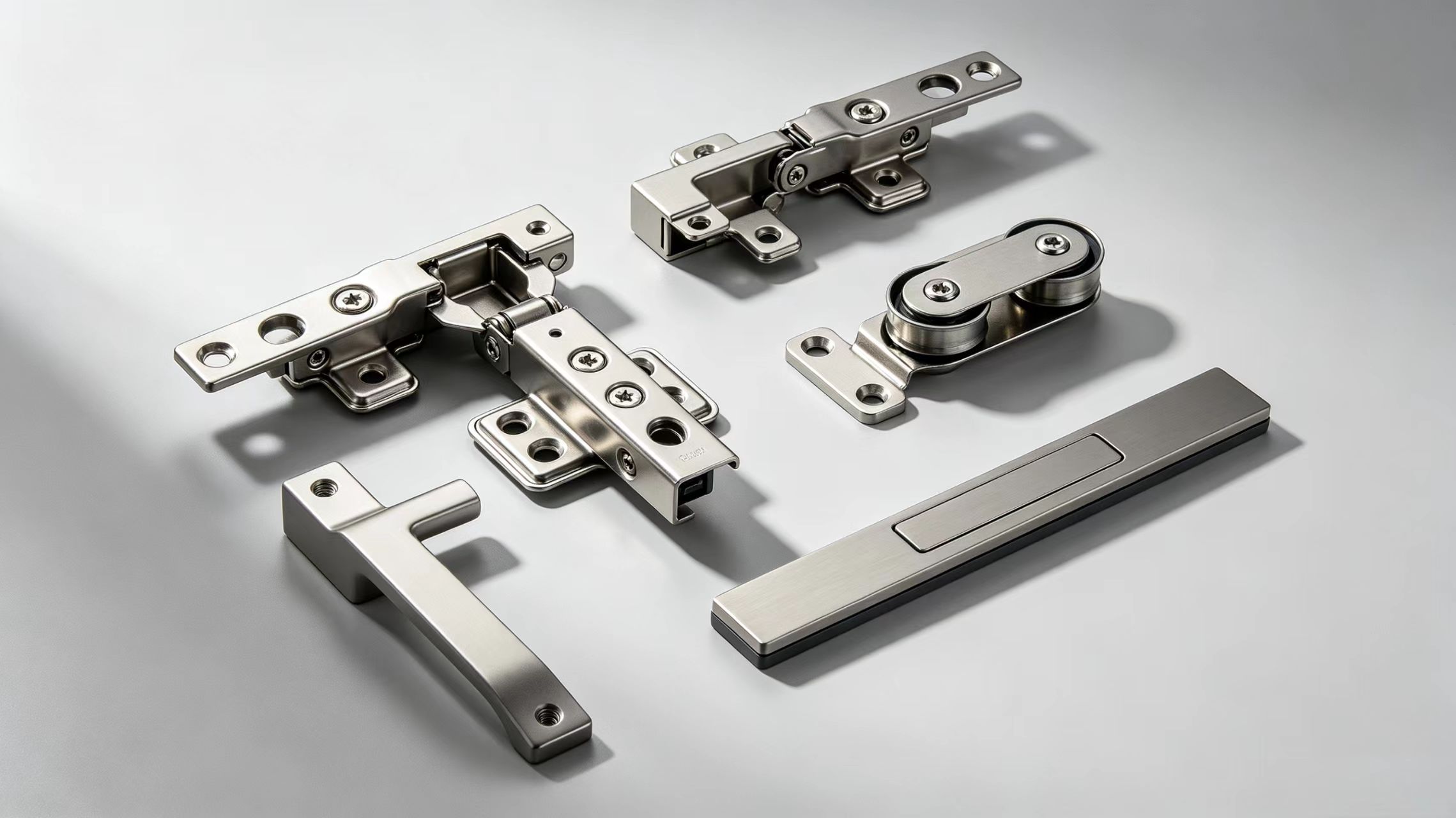

Hardware and Security Features

Load-bearing Opening and Closing Hinge Pivot

3D adjustable hinge can be adjusted up and down, left and right to fine-tune the flatness of the sash, and adapt to the thermal expansion and deformation error. Load-bearing models can carry 80kg of oversized glass fan weight in a single set of hinges.
Concealed hinges without exposed hardware on the façade, minimalist and beautiful, rust-resistant and rain-resistant. Exposed thickened hinges are more load-bearing, suitable for large-size floor-opening windows.

Multi-point Linkage Locking Components

Handle linkage side multiple locking points synchronized bite locking, locking force evenly dispersed frame. Anti-prying, anti-disengagement, closing airtightness is far more than single-point door locks.
Comes with children's limit gear, can be fixed small ventilation opening. Open the window ventilation at the same time, to avoid children climbing and falling window home safety hazards.

Push-pull Special Anti-skipping Track Pulley

Stainless steel double-row pulleys are load-bearing and pressure-resistant, smooth and silent without jamming. With anti-jumping buckle, windy weather sliding window fan will not dislocate from the track.
Nylon mute pulley is suitable for indoor lightweight sliding windows, excellent noise reduction. Outdoor balcony heavy-duty sliding door, must be upgraded with thickened metal pulley components.

Intelligent Electric Self-control Window Components

External motor linkage window sash, cell phone remote control opening and closing, timed ventilation. It is suitable for high-rise windows and commercial super-high light windows for convenient control.

Conclusion

Aluminum alloy window is a set of security, energy saving, waterproof, beautiful in one of the system building materials, window selection should not blindly compare prices, follow the narrow style. It is necessary to combine the regional climate, building height, household needs and property norms to fit the configuration: the north focuses on heat preservation, the coast focuses on wind resistance, and the south focuses on moisture prevention. Selection and recognition of aluminum, insulation, glass compliance qualification, standardized construction, implementation of after-sales, you can choose a high fit, long-lasting and durable aluminum alloy windows.
