Aluminum curtain wall system is a mainstream high-performance exterior wall solution in modern construction projects, which is widely adapted to all kinds of architectural scenarios by virtue of its multiple advantages of lightweight, durability, aesthetics and energy saving. With the popularization of the green building concept and the upgrading of construction technology, aluminum curtain wall has been continuously iterated and optimized, and has become the core material for replacing the traditional masonry and stone facade, helping the building to realize a double upgrade in value and performance.

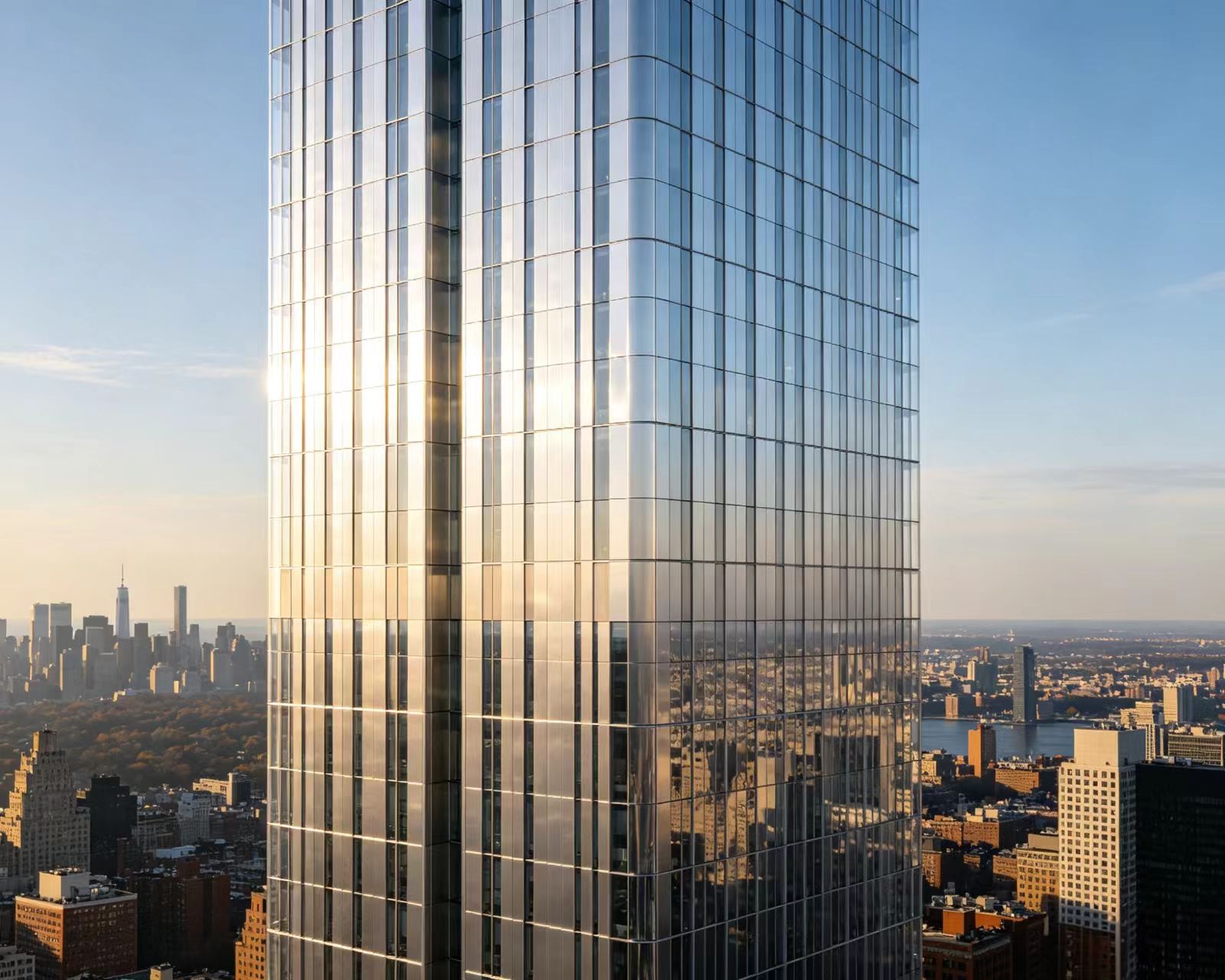

What Is an Aluminum Cladding System

Aluminum curtain wall system is a modern high-performance building facade system composed of aluminum panels and supporting profiles, with the core function of cladding the structural walls of the building facade. This integrated façade system distinguishes itself from a single decorative material by combining the two core functions of structural protection and architectural aesthetics.
It can effectively resist the wind, rain, ultraviolet rays and other external environmental erosion, and extend the service life of the main body of the building in all aspects. At the same time, it can create a simple and exquisite facade effect, which is suitable for the diversified design needs of all kinds of modern buildings.

How Aluminum Cladding Systems Work

Functional Positioning of Multi-storey Building Envelope

Aluminum curtain wall system is not simply a decorative covering material for the external wall, but a set of systematic, multi-level building enclosure system. The whole set of structure is designed through precise engineering, which can guard the main structure of the building in an all-round way and avoid the loss brought by various environmental factors.
It can effectively optimize the overall energy-saving performance of the building and resist external pressures such as wind and rain attacks, ultraviolet radiation, and temperature changes during the four seasons. As the core external wall protection system, it comprehensively guarantees the long-term stability and safe operation of the building.

Rain Curtain Double-layer Protection Mechanism

The core operation logic of modern aluminum curtain wall relies on the rain curtain protection system, which adopts a scientific double-layer protection structure design. The structure separates the outer decorative protection layer from the inner structural walls of the building, forming an independent double protection barrier.
The double-layer protection structure plays its own role and cooperates with each other, solving the pain point of water seepage and poor windproofness of traditional external walls from the root. Significantly improve the comprehensive performance of waterproofing, windproofing and seepage-proofing of the building façade, and adapt to all kinds of outdoor complex working conditions.

Specific Role of Inner and Outer Protection

The outer aluminum plate is the first core protective barrier of the curtain wall, facing the harsh outdoor environment. It can directly block rain, wind and snow pressure, strong wind impact and direct ultraviolet rays, and isolate most of the external environment on the wall loss and erosion.
The 25 to 50 millimeter ventilation cavity behind the panel constitutes a second layer of protection. Relying on natural ventilation and exclusive drainage design, it quickly channels residual water vapor, keeps the interior of the wall dry, and builds a strong line of defense for the exterior wall.

Pressure-balanced Anti-seepage Core Logic

The aluminum curtain wall system relies on the precise pressure balance principle to eliminate water seepage from the root of the exterior wall. When the strong wind wrapped rainwater high-speed impact on the building wall, the air pressure inside the cavity will respond quickly, and the outside air pressure to maintain a state of parity.
After the air pressure is balanced, water pressure can be effectively prevented from seeping into the wall through the joints of the panels. Continuously guarantee the dryness and stability of the building structure wall, to prevent mold, moisture, wall peeling and other types of quality problems.

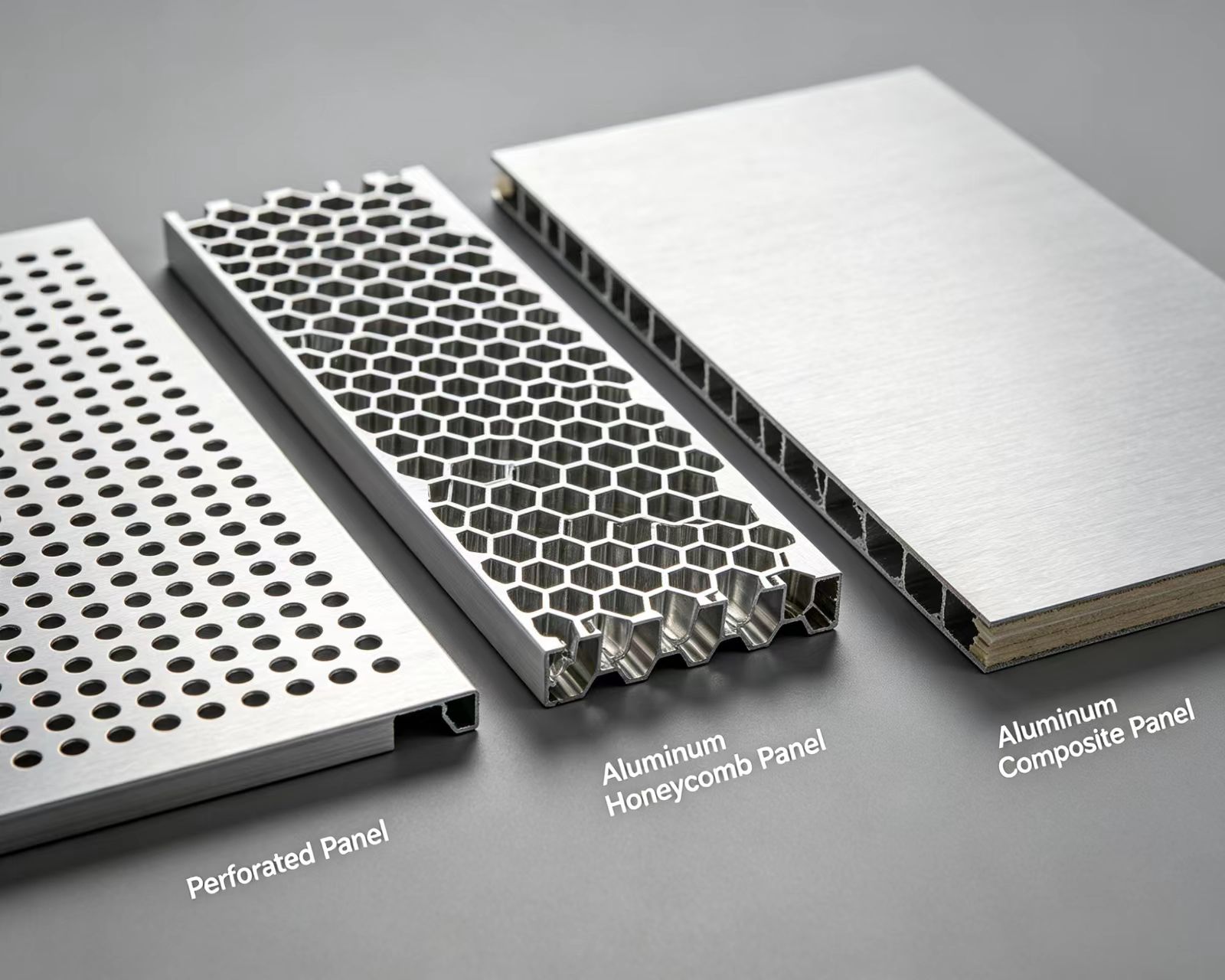

Types of Aluminum Cladding Systems

Box-type Curtain Wall system

Box curtain wall is the most widely used type of curtain wall in modern architecture, consisting of prefabricated aluminum box panels with folded edges and exclusive support profiles. The standardized panels can be mounted directly on the base structure of the wall, with a mature installation process and strong structural stability.
The system adopts a hidden fixing process, with a flat and clean façade, no abrupt fittings, and excellent wind and pressure resistance. It supports independent dismantling and replacement of single panel, with convenient post-maintenance, and is suitable for high-quality projects such as commercial buildings, high-end offices, and light luxury residences.

Panel/Channel Curtain Wall System

The panel and channel curtain wall is a cost-effective universal curtain wall solution, in which flat or micro-modeling aluminum panels are processed into a channel structure and fixed to the wall base. The process is highly adaptable to meet most conventional building façade construction requirements.
The system supports both exposed rivets and hidden fixing processes, and the panel size can be flexibly customized for fast construction. It is suitable for large-area wall construction scenarios and is widely used in industrial plants and small and medium-sized construction projects with controlled budgets.

Unitized Curtain Wall System

The modular curtain wall is an integrated factory prefabricated system, which integrates the panel, insulation layer and support profiles into a complete large-scale independent module in advance. The whole process is assembled in the factory with standardized production, high precision and strict quality control, effectively avoiding on-site construction errors.
Installation can be completed at the construction site by only lifting and splicing, which greatly reduces the on-site construction process and shortens the construction period. It is suitable for high-rise buildings, airports and other large-scale public works projects with tight schedules and stringent quality requirements.

Component Curtain Wall System

The component curtain wall adopts pure on-site assembly construction mode, and the construction workers need to build the vertical and horizontal aluminum support skeleton layer by layer. After the overall skeleton is stabilized, the aluminum panels are installed one by one, making the construction process flexible and controllable.
The system is highly adaptable and can be perfectly adapted to shaped curved surfaces and irregular building walls. During construction, it can be fine-tuned in real time according to the on-site situation, which is the preferred solution for renovation of old buildings and customized shaped buildings.

Aluminum Composite Panel Curtain Wall System

The core structure of aluminum composite panel is double-layer thin aluminum composite sandwich core material, and the core material is mainly divided into two categories: ordinary polyethylene core material and fireproof mineral core material. The panels are light in weight, smooth in surface, and highly decorative in appearance.
The product is rich in colors and finishes, suitable for shopping mall facades, mid-rise building facades and outdoor signage decorative scenes. The project construction must use A2 grade fireproof core material, which strictly meets the requirements of national building safety codes.

Perforated, Mesh and Expanded Metal Curtain Walls

Perforated, mesh and expanded metal curtain wall is a characteristic curtain wall category with artistic shapes such as holes and mesh patterns processed on the basis of aluminum panels. The perfect integration of decorative and practical, breaking the traditional curtain wall of a single protective function.
It can not only create an artistic building facade with a strong sense of design, but also realize the practical effects of sunshade, ventilation and noise reduction. It is widely used in the design of artistic buildings and public venues while protecting architectural privacy.

Honeycomb and Solid Core Aluminum Curtain Walls

Aluminum honeycomb panels are made of lightweight aluminum honeycomb structure as the core material, with high-quality aluminum panels laminated on both sides, and a scientific and reasonable structural design. While significantly reducing the self-weight of the panels, the overall strength and structural rigidity are greatly improved.
The panels have outstanding deformation and wind pressure resistance, and are suitable for large-span walls and various curved shape designs. Mostly used in large-scale buildings in areas with high wind pressure, the panels can withstand the impact of strong winds for a long time and have excellent stability.

Key Materials and Components

Core Aluminum Alloy Base Material

Aluminum alloy is the core base material for aluminum curtain wall panels and supporting structures, and different structural parts will match exclusive alloy models to guarantee the use of performance. The mainstream aluminum alloys used for curtain wall panels are 3003, 5005 and 5052 series alloys, which have balanced comprehensive performance.
These alloys are corrosion-resistant, easy to shape, and have an excellent strength-to-weight ratio. The supporting profile gives priority to 6063-T5 and 6063-T6 models, which have strong structural stability and can be processed for complex shapes, and the thickness of conventional panels ranges from 1.5 to 3.0 millimeters.

Surface Coating and Finishing Process

Surface painting and finishing process directly determines the weathering performance and appearance of aluminum curtain wall texture, is the core of the curtain wall supporting process. The mainstream process in the industry includes four core types such as PVDF fluorocarbon coating, powder coating and anodizing.
PVDF fluorocarbon coating is a high-end process, UV resistance, strong color retention, warranty up to 30 years or more. Anodizing is suitable for coastal high corrosive environments, and there are also special processes such as anti-graffiti and ceramic coatings to meet various special construction scenarios.

Support Structure and Accessories

Aluminum support profiles are the stress skeleton of the curtain wall system, which is spliced into a standardized installation grid by horizontal and vertical aluminum rails. The whole skeleton structure is stable, providing stable support for panel installation and carrying the overall load of the curtain wall.
Matching adjustable brackets can accurately level the wall, reserve standard ventilation cavities, and adapt to the thermal expansion and contraction characteristics of aluminum. Concealed hanging fittings ensure the neatness of the façade, and the heat insulation fittings can reduce the thermal bridge effect, effectively enhancing the energy-saving effect of the building.

Thermal Insulation Material

Thermal insulation material is the key core of aluminum curtain wall to realize energy-saving effect, which can be flexibly selected according to the building energy-saving standard. Different materials have their own advantages in fireproofing, heat insulation, thickness and cost-effectiveness.
Rock wool and mineral wool have excellent fireproof and soundproof performance, PIR and PUR foam have high thermal insulation efficiency and compact thickness, and EPS and XPS foam have outstanding cost-effectiveness, which are suitable for regular construction projects and can meet all kinds of energy-saving construction needs.

Waterproof and Fireproof Protective Materials

Waterproof and breathable membrane is the core protective material of curtain wall, which has the dual functions of waterproof barrier and breathable channeling. It can effectively protect the internal heat preservation layer and the building structure wall, eliminating the mold and aging problems caused by the long-term accumulation of water vapor.
The matching fireproof sealing strip and fireproof partition can precisely separate the ventilation cavity of the curtain wall. Effectively block the spread of fire, enhance the overall fireproof grade of the curtain wall, and strictly comply with the building fire safety standards.

Fastening Connection Fittings

Aluminum curtain wall fastening fittings are mainly made of high-quality stainless steel, suitable for long-term outdoor use. A4 grade stainless steel is preferred for coastal high salt spray areas, which can effectively resist salt spray corrosion and avoid aging and failure of fittings.
Exposed fittings are made of anti-rust and anti-corrosion special style, and the built-in hidden hanging fittings can guarantee the seamless and neat exterior surface. Special self-tapping screws can avoid galvanic corrosion of aluminum, ensuring the stability and safety of the curtain wall structure in the long term.

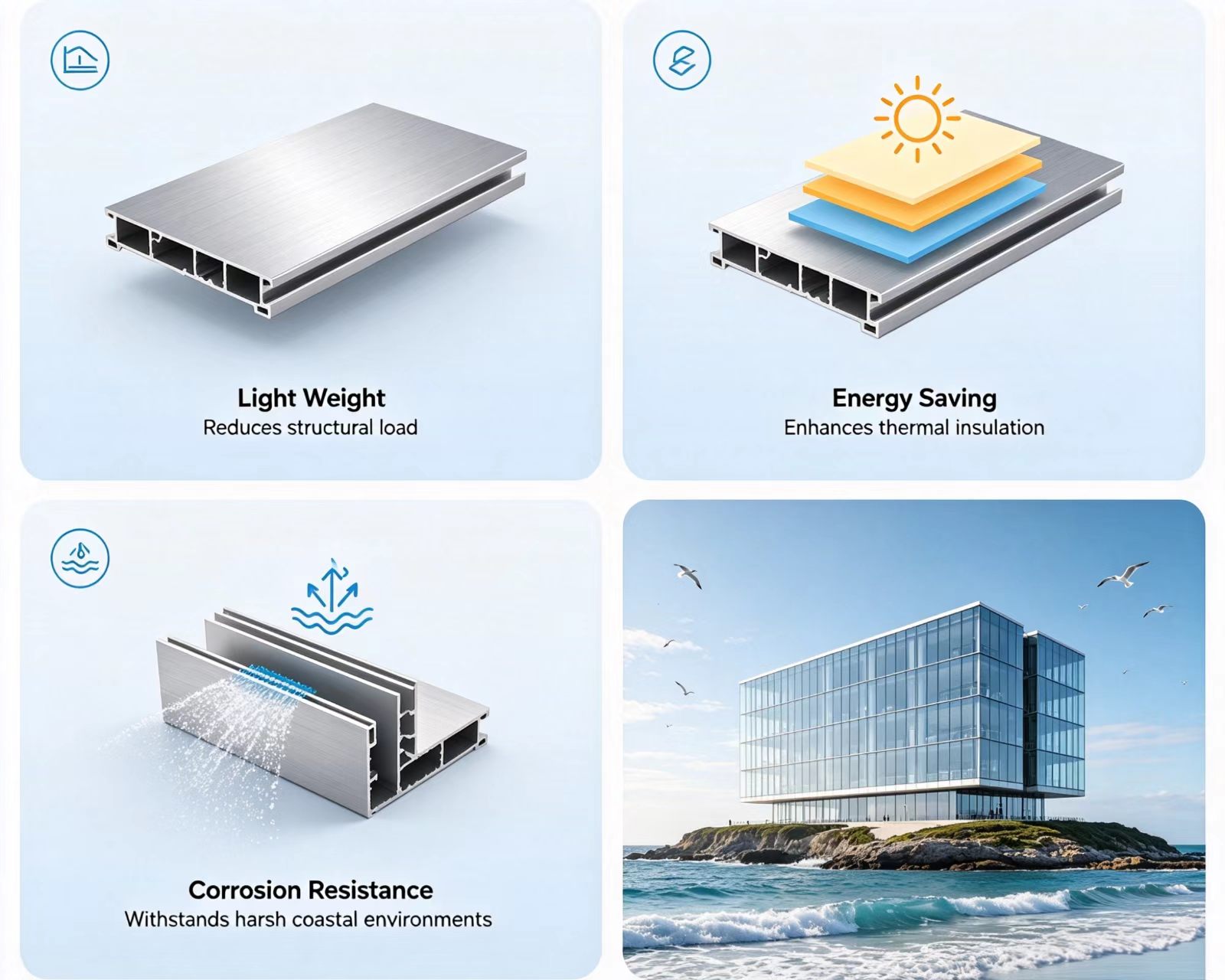

Advantages of Aluminum Cladding Systems

Weathering and Corrosion Resistance

The surface of aluminum can naturally generate a dense oxidized protective layer, eliminating rust and corrosion problems from the root, with excellent inherent weather resistance. It is perfectly suited for coastal, industrial and highly polluted outdoor environments.
With fluorocarbon, anodic oxidation and other high-end finishing processes, the service life of the curtain wall can reach more than 50 years. Long-term use is not easy to aging, fading, breakage, the overall durability far exceeds the traditional masonry, stone facade materials.

Lightweight Material

One of the most prominent advantages of aluminum curtain wall is extremely light weight, far lower than the weight of stone, concrete, masonry and other traditional exterior wall materials. It can significantly reduce the bearing pressure of the main structure of the building and optimize the building force structure.
It can simplify the building foundation design scheme and effectively control the overall construction cost. It is especially suitable for high-rise buildings with limited loads and renovation projects of old buildings, with higher construction safety.

Heat Insulation and Energy Saving

Aluminum curtain wall with rainscreen ventilation structure and high-quality thermal insulation materials has excellent heat insulation and energy saving performance. It can effectively block the transfer of hot and cold outdoor air, reduce the thermal bridge effect of the building, and optimize the U-value parameters of the wall.
It can significantly reduce the energy loss of building air conditioning and heating equipment and save operating costs. It helps the building to get LEED, BREEAM and other green certificates, which is in line with the development trend of low-carbon buildings.

Easy Maintenance

High-quality aluminum curtain wall finishes have excellent anti-color fading, stain resistance, anti-chalking properties, and outstanding resistance to dirt and aging. Some of the high-end self-cleaning coatings can automatically wash away surface dust with the help of rainwater, making maintenance very convenient.
There is no need for complex daily maintenance operations, just a simple wipe clean on a regular basis. Compared with traditional facades such as wood and latex paint, it significantly reduces the labor and material costs of later operation and maintenance.

Green and Environmentally Friendly

Aluminum is recognized as a green and sustainable building material, which can be 100% recycled and reused without any loss of material performance after recycling. Most of the curtain wall products are made of recycled aluminum, which reduces carbon emissions from the production of building materials from the source.
At the same time, the excellent heat preservation and insulation performance of the curtain wall can continue to reduce the long-term operational energy consumption of the building.
All-round assistance to the construction of low-carbon and environmentally friendly buildings, in line with the concept of green building development.

Efficient Construction

Aluminum curtain wall panels are lightweight and highly modular, making construction far more convenient than traditional facades. Especially the unit-type prefabricated curtain wall can greatly compress the on-site construction cycle, effectively reducing labor input and construction costs.
With the core advantages of ultra-long service life and extremely low maintenance cost, the project's overall life cycle cost is lower. The overall economic benefits are significant, and it is a cost-effective solution for exterior walls.

Fire Safety

Modern aluminum curtain wall can achieve high fireproof grade A1, A2-s1,d0 by matching non-combustible core material, fireproof heat preservation material and special fireproof accessories. The fireproof performance is stable and can effectively resist the attack of open fire.
The products are fully compatible with the strict domestic and international building fire safety standards, and can effectively prevent the spread of fire. It can effectively prevent the spread of fire, protect the building body and personnel safety in an all-round way, and is suitable for the construction of all kinds of public and civil buildings.

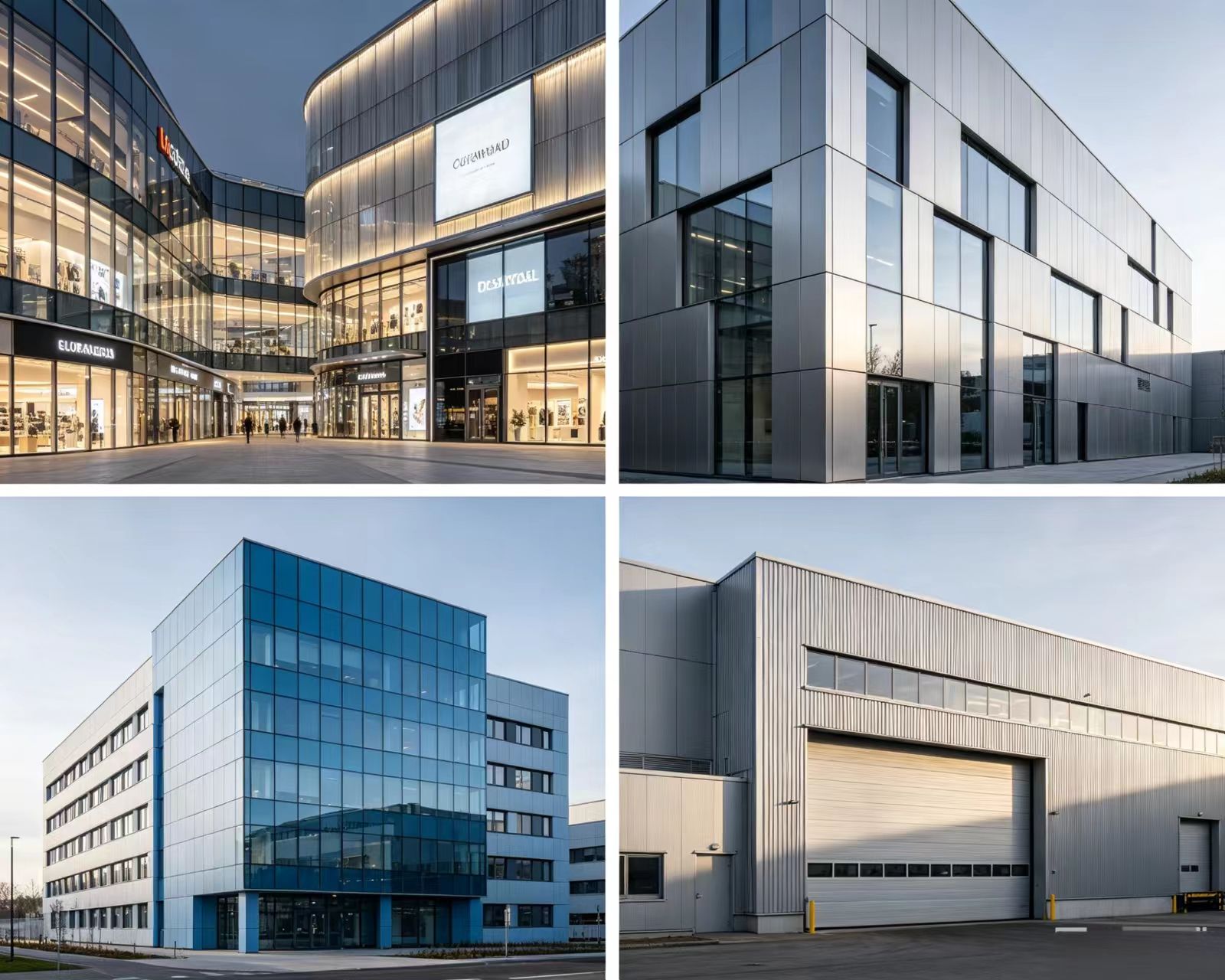

Common Applications of Aluminum Cladding

Commercial High-rise Buildings

Commercial office buildings and urban high-rise commercial buildings are the core application scenarios of aluminum curtain wall, which is suitable for high-end commercial building positioning. The simple and exquisite appearance can shape the professional and atmospheric visual image of the building and enhance the building grade.
The lightweight characteristics of the material are suitable for the structural load limitations of high-rise buildings, with excellent windproof and energy-saving performance. It can meet the long-term green and stable operation requirements of large commercial buildings, and is highly practical.

Shopping Malls and Retail Complexes

Shopping centers, commercial streets and other retail buildings favor the diversified design advantages of aluminum curtain walls. Customized large-size panels, smooth curved surfaces and various kinds of characteristic finishes are available, with strong visual expression.
It can create eye-catching building facades and personalized store shapes to meet the needs of commercial traffic. At the same time, it can be flexibly matched with lighting and signage systems, perfectly matching the decorative display needs of commercial buildings.

Transportation Hubs

Airports, stations and other transportation hubs have high traffic flow and high frequency of use, and have stringent requirements for durability and low maintenance of building materials. Aluminum curtain walls are weather-resistant, fire-resistant and wear-resistant, which are perfectly suited to these high-frequency use scenarios.
Perforated and mesh style aluminum curtain wall can take into account the effect of sunshade and ventilation. Widely used in terminal buildings, parking buildings, dispatching towers and other transportation support buildings, with excellent comprehensive use experience.

Hotel and Resort Culture and Tourism Buildings

Hotels, resorts and other cultural tourism buildings, often with the help of aluminum curtain wall to create a light and modern architectural style. Customized features can be shaped walls and atmospheric entry shape, to enhance the overall texture and grade of the building.
Aluminum has excellent resistance to humidity and salt spray, which is suitable for the special environment of coastal and lakeside resort sites. Aluminum is suitable for the long-term operation of cultural tourism buildings, taking into account the aesthetic texture and long-term stability of use.

Residential Apartment Building

Modern multi-storey residential buildings, high-end apartments and villas commonly use aluminum curtain wall to decorate the facade, balcony and roof area. The appearance of the product is high-end and exquisite, and the daily maintenance is simple, which is suitable for the long-term use of residential buildings.
It can perfectly meet the energy-saving and heat preservation standards of residential projects and enhance the comfort of living. At the same time, it can unify the style of building facade in the community and effectively improve the overall quality and value of the property.

Science, Education and Medical Public Buildings

Schools, hospitals and other scientific, educational and medical public buildings, the core demand for neat, safe and practical. Aluminum curtain wall surface is dense and non-porous, not easy to accumulate dust and dirt, and convenient for daily cleaning and disinfection.
The product has excellent sound insulation and heat insulation performance, which can create a comfortable teaching and treatment environment. At the same time, it is fireproof, durable and safe, which is in full compliance with the norms and standards for the safe use of public buildings.

Industrial Warehouse Buildings

Factory buildings, logistics warehouses and other industrial buildings, give priority to cost-effective aluminum curtain wall as the exterior wall materials. Fast construction, strong structural protection, can withstand wind and rain, dust and other types of external environmental erosion.
It can effectively protect the main structure of the plant and extend the service life of industrial buildings. The perforated sheet can also assist the ventilation of the workshop, which is suitable for the practical construction needs of industrial buildings.

Old Building Renovation and Remodeling

Aluminum curtain wall is one of the most optimal solutions for the renovation of old buildings, without the need for large-scale demolition of the original wall structure. The building facade can be quickly upgraded and remodeled through the simple construction method of hanging the curtain wall externally.
It can not only renovate the outdated appearance of old buildings, but also improve the overall value. It can also optimize the thermal insulation and energy-saving performance of the wall and extend the service life of the building, with low transformation cost and good landing effect.

Factors to Consider When Choosing an Aluminum Cladding System

Project Budget and Full Cycle Cost

Aluminum curtain wall selection needs to consider the full cycle cost, not just focus on the pre-purchase offer. It is necessary to comprehensively compare the total cost of materials, processing, on-site installation and later operation and maintenance, taking into account the cost-effectiveness and practicality.
High-end fluorocarbon, unit-type curtain wall is a high investment in the early stage, but durability, maintenance costs are very low. Powder coating and ordinary panel curtain walls are more cost-effective and suitable for small and medium-sized budget projects, which should be selected based on project needs.

Fire Safety and Compliance Standards

Fire performance is a hard core indicator of aluminum curtain wall selection, which is directly related to the safety of building use. When selecting the type, it is necessary to prioritize the use of A1, A2 level high fire prevention system, and the aluminum composite panel must be matched with flame retardant fireproof core material.
At the same time, it is necessary to strictly standardize the building code of the project location, and comply with the IBC, EN and other common standards at home and abroad. Fire safety hazards are avoided at the source to ensure building compliance and safe operation.

Energy Saving, Heat Preservation and Thermal Performance

Energy saving, heat preservation and thermal performance of curtain walls are key assessment indicators for modern building construction. When selecting the type, you need to focus on verifying the system U-value and thermal insulation parameters to match the established energy-saving standards of the project.
Select the appropriate thermal insulation materials and panel thickness as needed, and optimize the thermal insulation effect by relying on the rainscreen ventilation structure. Effectively reduce building energy consumption and help the project successfully achieve green building certification standards.

Structural Load and Wind Resistance

The structural load and wind resistance of the building is the core safety basis for curtain wall selection. It needs to be combined with the building height and local perennial wind pressure data, and the professional engineers will complete the accurate structural calculation.
Accordingly, we customize the appropriate aluminum skeleton and fixing system to ensure that the structural strength is up to standard. It can effectively withstand strong winds, vibrations and other external influences, and build a safe line of defense for the long-term use of the building.

Green and Sustainable Demand

Nowadays, building construction focuses more and more on green and low-carbon, and projects with environmental protection certification needs to prioritize the use of high recycled content aluminum and environmentally friendly coatings. From the source of materials to control the environmental attributes of the building.
Priority is given to verifying the environmental certification qualifications of products and reducing carbon emissions through high-quality curtain wall systems. Comply with the industry development trend of green building and low carbon construction in an all-round way.

Future Trends in Aluminum Cladding Systems

Low-carbon Recycled Aluminum widely Popularized

Under the comprehensive promotion of dual-carbon policy and green building standards, low-carbon recycled aluminum has become the mainstream development direction of the industry. Major manufacturers continue to optimize their production processes to reduce carbon emissions from aluminum production.
By increasing the use of recycled aluminum, the low-carbon upgrading of building materials can be achieved without reducing the strength and durability of the curtain wall. Comprehensively adapting to the construction and development needs of modern low-carbon buildings.

Iterative Innovation of Functional Coating

Curtain wall surface finishing technology continues to innovate and iterate, and all kinds of functional new coatings are gradually popularized. It covers a variety of high-performance coatings such as self-cleaning, anti-bacteria, anti-graffiti, and extreme climate resistance.
These innovative coatings can significantly reduce the post-curtain wall maintenance costs and keep the façade clean and intact for a long time. They are widely applicable to all kinds of high-end public buildings and high-quality commercial projects.

Popularization of Digital Customized Design

With the popularization of CNC machining, robotic production and parametric design technology, the ability of curtain wall customization has been greatly improved. The mass production of complex shaped, personalized texture and artistic modeling can be easily realized.
On the basis of effective control of production costs, it greatly releases the freedom of architectural design. Fully meet the diversified and personalized facade aesthetic needs of modern buildings.
Cost-consuming, expanding the curtain wall application scene. Let the aluminum curtain wall better adapt to the complex building conditions of large span and high wind pressure.

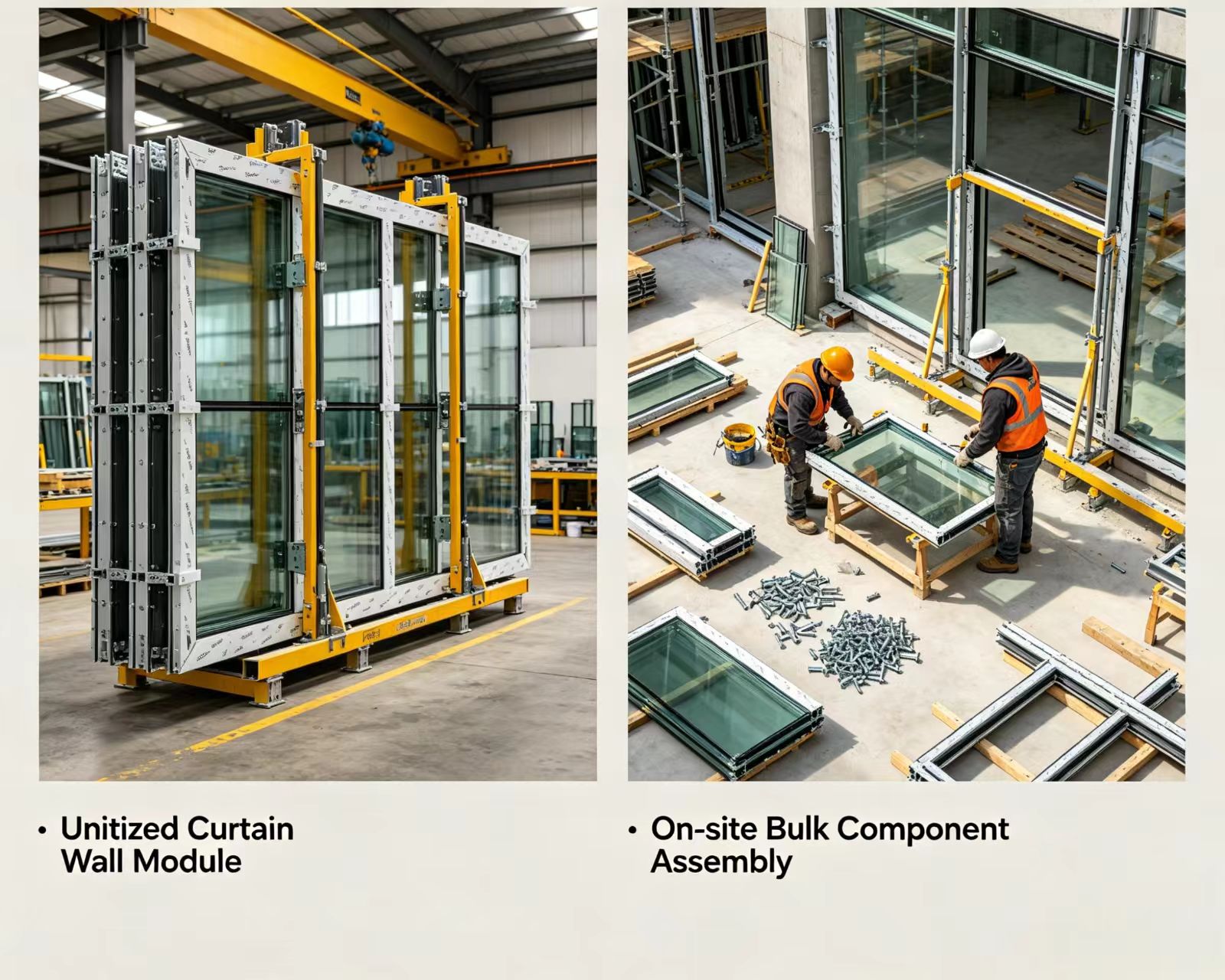

Modular Prefabricated Construction Becomes Mainstream

Modularized and assembled prefabricated curtain wall construction mode has become the mainstream development trend of the industry. Through standardized prefabricated production in factories and rapid on-site lifting and splicing, the construction process of curtain walls has been reconstructed.
This mode can significantly shorten the project duration and improve the precision of product processing and installation. It reduces on-site construction errors and perfectly fits the development direction of building industrialization and high efficiency.

Integration of Photovoltaic Development

The integration of photovoltaic building integration technology and aluminum curtain wall is becoming more and more mature, and is the core direction of future green building. Relying on the solid structural system of the curtain wall to carry photovoltaic modules, it realizes the functional upgrading of the facade.
The façade of the building can be decorated, protected and generate photovoltaic power at the same time. Help zero-carbon, energy-saving buildings to land, and promote the development of clean energy in buildings.

Conclusion

With the core advantages of lightweight and durable, energy-saving and beautiful, and wide adaptability, the aluminum curtain wall system covers commercial, residential, public, industrial and other full-scene architectural applications. Its material technology, construction technology continues to iterate and upgrade, intelligent, low-carbon, customized trend is significant, has become the preferred choice of modern green building facade, the future development prospects are very broad.
