At present, all kinds of newly-built residential buildings, commercial office buildings and industrial plants in China are upgrading complete sets of ventilation supporting systems. Traditional wooden and steel ventilation components are easy to corrode and deform, and it is difficult to meet the long-term use demand.  Louver aluminum profiles rely on aluminum alloy lightweight, strong corrosion resistance, flexible customization of the comprehensive properties, become the mainstream of the core material ventilation system.

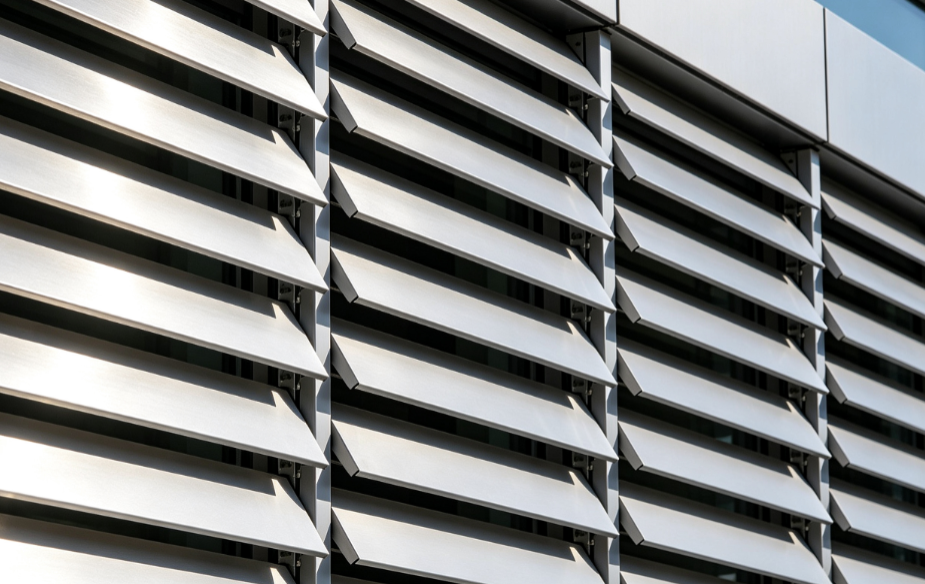

What Are Louver Aluminum Profiles?

Louver aluminum profiles are also often referred to as aluminum louver extrusion profiles and louver blade profiles in the industry. They are aluminum alloy components formed by special extrusion equipment. The core function is to build inclined guide vanes inside the louver system to form the load-bearing main body and functional carrier of the whole set of louvers. Complete support for ventilation, sunshade and other basic functions.
The louver structure formed by this kind of profile assembly has multiple groups of parallel inclined blades, which can block direct sunlight, rain and dust on the basis of ensuring air circulation and exchange, and at the same time give consideration to indoor privacy protection. It is an indispensable functional building material for building ventilation facade and widely adapts to various indoor and outdoor ventilation openings.

Why Aluminum Is the Preferred Material for Ventilation Louvers

Aluminum Core Physical Properties Advantages

Light Weight and High Strength Characteristics

The overall density of aluminum alloy is much lower than that of carbon steel, stainless steel and other metal materials. Under the same size and specification, the overall weight of aluminum louver is greatly reduced. Whether it is high-rise curtain wall hoisting or indoor small vent installation, it can effectively reduce the difficulty of site construction and hoisting equipment investment, and reduce the risk of aerial operation.
Aluminum in lightweight while retaining stable structural tensile and bending strength, large-area continuous louver without additional thickening of the load-bearing keel, not only reduce the building wall load, but also reduce the logistics weight of the transportation stage, all-round compression project comprehensive construction and material transportation costs.

Resistance to Corrosion

Aluminum metal exposed to the air will automatically generate a layer of dense and stable aluminum oxide protective film, this layer of film can isolate rain, salt fog, acid and alkali exhaust gas, ultraviolet rays brought about by the continuous corrosion, from the root to avoid rust damage profile, without additional rust coating also has basic protection.
Compared with unprotected steel, it is easy to rust in large areas for long-term outdoor use, and the wood is quickly moldy and rotten in water. Aluminum alloy shutters can still maintain stable use for decades in harsh environments such as coastal wet areas and chemical plants, without frequent anti-corrosion renovation, and greatly reduce maintenance expenses.

Thermal Insulation and Noise Reduction Comprehensive Performance

The aluminum profile with streamlined blade structure can effectively block the heat conduction brought by direct sunlight, reduce the direct transmission of outdoor high temperature into the room, reduce the continuous cooling load of air conditioning equipment, assist the building to complete temperature control and energy saving from the ventilation component level, and save a lot of electricity expenses for a long time.
The louvered aluminum profile with optimized structure can weaken the airflow noise generated by air flow, and block the noise from the street and the outside of the factory from being transmitted into the room. On the premise of ensuring the ventilation function of the building foundation, the quiet and comfortable degree of indoor space is balanced, and it is suitable for various scenes such as office and residence.

Aluminum Compared with Other Materials Advantages

Contrast Steel Louvers

Although the short-term load-bearing capacity of ordinary carbon steel louvers is stronger, the overall weight is too large. When installing high-rise curtain walls, it is necessary to thicken the load-bearing structure of the building. If the steel lacks protective layer, it will rust quickly. Every two to three years, the overall derusting and painting will be carried out. The long-term maintenance expenses remain high, which increases the operation burden of the project.
Aluminum alloy shutter recycling residual value is much higher than steel, scrap can be completely recycled remelting recycling, and the whole process does not need frequent rust maintenance, from the project ten years, twenty years of life cycle cost accounting, aluminum shutter comprehensive investment is much lower than steel shutter, long-term cost-effective higher.

Contrast Wood Louver

Although the log louver has a warm and natural visual texture, the moisture content of the wood itself is unstable, and it is easy to warp and rot in a ventilated and humid environment for a long time. It must be painted with anti-corrosion varnish regularly. The maintenance process is complicated and the overall service life is only a few years.
Aluminum alloy profiles are completely free from moisture, mold, insects and ants, do not need periodic painting protective materials, outdoor ventilation equipment, external wall shading such long-term exposure scenarios, the durability of wooden shutters can not form an effective competition with aluminum profiles.

Comparison PVC, FRP Blinds

PVC and FRP materials also have the characteristics of light weight and not easy to rust, but the rigidity of the material itself is poor, and it is easy to distort the blades and crack the frame when encountering strong wind and external force impact, which cannot meet the safety standards of high-rise buildings and large-scale factories.
Long-term outdoor direct ultraviolet rays will accelerate the aging fading and brittle fracture of plastic profiles. High-end commercial buildings and landmark projects have higher requirements on facade durability and visual texture. Aluminum alloy louvers will be preferred as the ventilation core component.

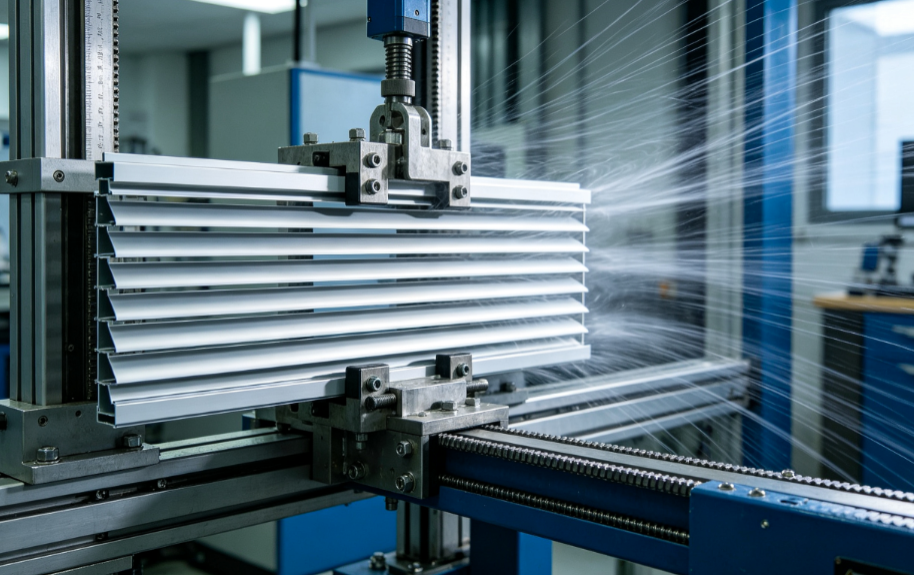

Key Benefits of Louver Aluminum Profiles in Ventilation Systems

Improve Ventilation Efficiency

The manufacturer optimizes the inclination angle and cross-section shape of aluminum louvers through fluid mechanics calculation, greatly reduces the airflow resistance when the air passes through the louvers, significantly improves the indoor and outdoor air exchange rate, and can quickly discharge indoor accumulated heat, odor and various pollutants to improve the indoor air environment.
The adjustable aluminum louver blades can be manually or electrically adjusted to open and close according to the season, day and night temperature. They are fully opened in high temperature summer to maximize air intake, and moderately closed in cold winter to reduce cold air injection. The uniform spacing of standardized profiles will not create ventilation dead spots, and is suitable for machine rooms., residential and other ventilation scenarios.

Green Building Standards

Aluminum louvers rely on natural ventilation to reduce the daily operation time of air conditioning and fresh air equipment, directly reduce the overall power consumption of buildings and long-term operation electricity expenses, and at the same time reduce carbon emissions generated by the use of refrigeration equipment, which meets the development and construction requirements of current low-carbon buildings and zero-energy buildings.
External aluminum louvers can block high-intensity direct sunlight at noon, lightweight profiles reduce the bearing pressure of the main frame of the building, reduce reinforced concrete consumables, aluminum alloy 100% recyclable properties can also easily meet all kinds of green building certification material selection specifications at home and abroad.

Sound Insulation and Fire Resistance

Custom aluminum louvers with perforated structure and built-in soundproof filling cotton can effectively reduce the airflow noise generated during air circulation. Airports, thermal power plants, professional recording studios and other places with strict noise control can rely on these louvers to balance the dual needs of ventilation and noise reduction.
Aluminum alloy is a non-combustible metal material, which will not burn and release toxic smoke in high temperature environment. The ventilation outlet of the engine room and the ventilation passage of the fire compartment are equipped with fireproof aluminum louvers, which can fully comply with the building fire safety standards and effectively avoid the potential safety hazards of fire spread.

Easy to Install, Adapt to Old and New Transformation

The overall weight of aluminum profiles is light, and two construction personnel can complete the full set of operations of handling, positioning and fixing, greatly shortening the overall construction period of curtain walls and vents. Whether it is ventilation supporting facilities for new buildings or renovation and reconstruction of ventilation systems for old buildings, the construction threshold is lower.
Modular prefabricated design is adopted for profiles, and standardized fasteners and stainless steel screw accessories are provided. There is no need for a large number of cutting and welding processes on site. There is no need to dismantle and modify the original walls on a large scale for the renovation of old buildings, so as to reduce the generation of construction waste and reduce the difficulty of reconstruction construction.

Comprehensive Cost Economy

Aluminum shutter profile factory basic purchase price is moderate, superimposed long service life, zero maintenance, energy saving and other added value, comprehensive full-cycle use cost is significantly better than wood, glass steel, carbon steel and other types of ventilation shutter materials, long-term use more economical.
Factory buildings, office buildings, industrial parks and other large-volume procurement projects can negotiate with manufacturers to customize exclusive molds, and allocate mold costs to large-volume products. The purchase unit price of single profiles will be further reduced, and the overall procurement cost advantage of large-scale projects will be more prominent.

Common Applications of Louver Aluminum Profiles

Building Facade Curtain Wall System

The outer walls of urban high-rise office buildings, general hospitals and primary and secondary school teaching buildings are generally equipped with aluminum louver sunshade ventilation components, which can block the direct sunlight at noon and reduce indoor temperature rise. Meanwhile, ventilation channels are reserved to realize natural ventilation of the outer walls of buildings and optimize the comfort of indoor office and teaching residence.
Horizontal and vertical aluminum louvers can be combined with glass curtain walls to enrich the layering of building facades. Relying on the lightweight characteristics of aluminum alloy, it does not need to thicken the bearing structure of high-rise walls. It is the mainstream building material for the integration of shading and ventilation of external walls of green public buildings.

HVAC Equipment

The ventilation inlets and outlets of the central air conditioning unit and basement room are equipped with aluminum louvers. The blade structure prevents dust, fallen leaves and rainwater from entering the equipment, continuously ensures the smooth air duct of the ventilation unit, avoids the equipment heat dissipation failure caused by the accumulation of sundries, and prolongs the service life of the fan.
Large data centers, commercial catering kitchen ventilation system uninterrupted operation throughout the year, high dust, oil smoke, water vapor content in the air, corrosion resistant aluminum profiles can be long-term stable protection ventilation equipment, each profile after professional air volume calculation, taking into account protection and ventilation efficiency.

Windows, Balconies and Skylights

Small adjustable aluminum louvers are installed on the outside of doors and windows of urban commercial residential buildings, so residents can freely adjust the opening and closing range of blades to control indoor lighting intensity, block external sight while ensuring normal air circulation and exchange, effectively protect privacy of home life and improve living experience.
Balcony guardrail integrated aluminum louver replaces solid closed wall, hollow inclined blades keep air circulation, will not appear balcony sultry and stuffy situation, skylight supporting louver weakens strong light, block rainwater, stable maintenance of ventilation function throughout the year is not disturbed by weather

External Sunshade, Temperature Control System

Aluminum blinds are generally installed on the outer walls of buildings in tropical and subtropical high temperature cities, which completely block direct sunlight at noon, greatly reduce the accumulation of heat in buildings, reduce the high electricity expenses caused by long-term operation of air conditioning equipment, and have remarkable energy saving and consumption reduction effects.
Intelligent electric sunshade aluminum shutter with light, temperature and humidity sensor, can automatically adjust the blade opening and closing according to outdoor environmental parameters, light weight profile can directly fix the wall, simple construction facade clean, suitable for low carbon, zero energy consumption intelligent building integrated temperature control design.

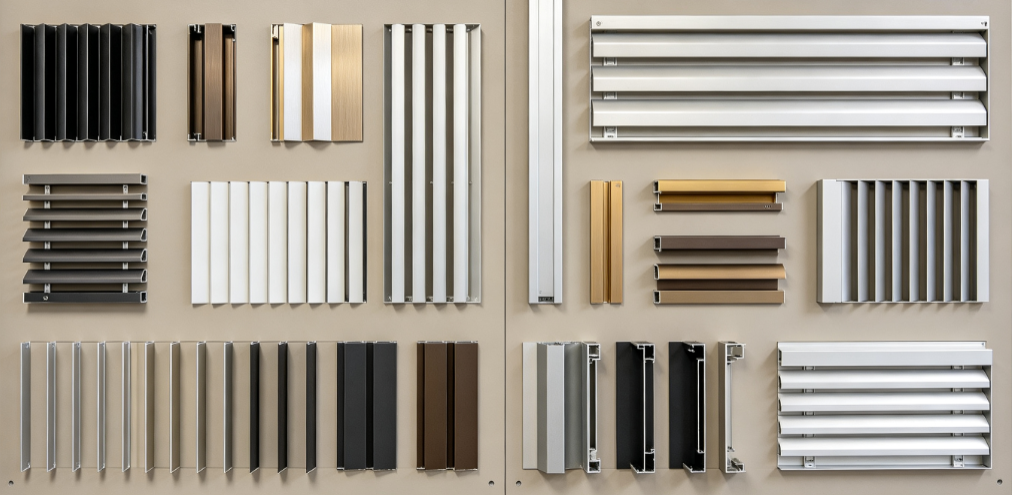

Important Design Features of High-Quality Louver Profiles

Blade Shape and Structure Design

The standard inclination angle of high-quality louver aluminum profiles in the industry is controlled in the range of 30° to 45°. After many fluid and waterproof tests, the angle can balance the ventilation flow and rainwater and debris blocking effect, and meet the needs of most outdoor ventilation building projects.
Streamline airfoil section blades greatly reduce ventilation airflow turbulence, reduce wind resistance, shallow blades adapt to small indoor openings, deepen blades to improve outdoor waterproof and wind resistance, high-precision extrusion technology to ensure uniform blade thickness, uniform gaps after batch installation without rain leakage and uneven ventilation problems.

Aluminum Alloy Grade and Wall Thickness Standard

6063-T5 and 6061 aluminum alloy are uniformly selected for high-end engineering. The extrusion molding of the material is smooth and stable. The structural strength and outdoor corrosion resistance of the finished profile are balanced. It is suitable for various complex ventilation conditions such as coastal, factory and high-rise.
The manufacturer sets the wall thickness between 1.2mm and 3.0mm according to the louver span and local wind pressure. The wall thickness is insufficient and the wind is easy to deform. Too thick increases the weight and purchase cost. The wall thickness of the regular large factory profile is uniform without stealing. The long-term opening and closing load will not cause fatigue cracking deformation.

Outer Frame Integral Assembly Structure

The whole set of louvers is equipped with a complete load-bearing frame. The internal and external mullion reinforcement structures are matched with interlocking joints to improve the overall rigidity, effectively resist strong wind impact to avoid the louvers from shaking and loosening, and improve the long-term stability of the whole set of louvers.
The profile frame is built with integrated drainage grooves, rainwater is discharged outward along the grooves to prevent water immersion, high-end profiles are equipped with insulation broken bridges to block cold and heat conduction, all fixed connectors are stainless steel fittings, and iron hardware rust is prevented from damaging splicing gaps.

Surface Coating Treatment Process

Anodic oxidation treatment retains the original metal texture of aluminum alloy, the hardness of oxide film is high, daily cleaning, handling bumps are not easy to leave scratches, wear resistance and durability are outstanding in the basic surface protection process, suitable for the pursuit of metal original texture projects.
Powder coating covers a full set of RAL color cards, rich colors and high cost performance. PVDF fluorocarbon coating has top UV resistance and salt spray corrosion resistance. Coating processing strictly follows AAMA and Qualicoat standards. It will not fade, peel or fall off outdoors for many years.

Additional Functional Matching Design

The profile blade frame is reserved with integrated card slots, which can be directly installed with insect and bird prevention metal nets to block mosquitoes and birds from entering the pipeline room during ventilation. There is no need to install additional complex accessories, simplifying the field installation process and reducing the construction labor cost.
Blade punching with sound insulation cotton can create acoustic louvers to adapt to noise control areas, reserved standard hardware holes can be equipped with electric motors to achieve intelligent adjustment, manufacturers can also customize anti-hurricane, fire certification profiles, to meet the coastal, computer room special safety specifications.

How to Choose the Right Louver Aluminum Profile

Clarify Core Project Use Requirements

First determine the core function positioning of louvers, and distinguish whether they are mainly used for ventilation, external wall shading, privacy shielding or equipment protection. At the same time, distinguish the project use environment. Coastal, high-wind-sand, and heavily polluted factories must use thickened and high-corrosion coating profiles.
Sort out the rigid special requirements of the project, including differentiated performance standards such as sound insulation, fire prevention, electric control, typhoon resistance, etc., and calculate the size of installation opening and local wind pressure parameters synchronously, so as to determine the blade depth and overall frame bearing specifications, so as to avoid non-conformity of selection specifications.

Core Performance Indicators Screening Criteria

When purchasing, priority shall be given to obtaining the third-party authoritative test report from the supplier, carefully checking the key test data such as effective ventilation area, waterproof penetration grade, wind pressure load resistance, etc., and the louver profile with hurricane special certification must be selected for outdoor high exposure harsh environment.
All profile performance indicators need to match the current local building codes, foreign-related projects can choose products that meet AMCA and AAMA international standards, reject low-cost thin material profiles without test data, and prevent high rework costs due to late water leakage and blade deformation.

The Selection of Blade Size and Opening and Close Form

Small indoor window vents are suitable for narrow and shallow blades, large external walls and industrial room ventilation openings are selected with deep blades to enhance waterproof and wind resistance, fixed louvers are suitable for equipment vents without adjustment of ventilation, and adjustable louvers are more suitable for residential and office lighting and ventilation scenes.
Fixed + adjustable combination louver optimized facade design can be adopted, fixed protection at the bottom layer, adjustable light ventilation at the upper layer, blade spacing and inclination angle can be customized in combination with local sunshine angle, so as to maximize the dual functions of shading, cooling and natural ventilation.

Aluminum Material and Surface Coating Selection

Conventional outdoor ventilation projects use 6063-T5 aluminum alloy, large span, high wind resistance requirements upgrade 6061 thickened profiles, the pursuit of wear-resistant metal primary color selection anodization, budget limited want colorful appearance preferred powder coating process.
In coastal and chemical plant long-term exposure scenarios, PVDF fluorocarbon spraying is directly selected to ensure color stability for more than ten years. Indoor vents can simplify the coating process. All long-term exposed louvers must be equipped with weather resistant protective coatings to delay aging and corrosion of profiles.

Installation and Post-maintenance Considerations

Lightweight aluminum profile handling lifting difficulty is low, suitable for high-altitude curtain wall, high-rise external wall rapid construction saves labor, confirm the profile connector before procurement can adapt to wall, curtain wall, steel structure a variety of substrates, reduce site cutting transformation process.
Preference shall be given to the coating style with smooth and easy cleaning surface. The dust can be removed without special curing agent by daily washing with clean water. The detachable maintenance structure shall be reserved for the profile. The ventilation equipment shall be disassembled conveniently in the later period without damaging the original external wall structure.

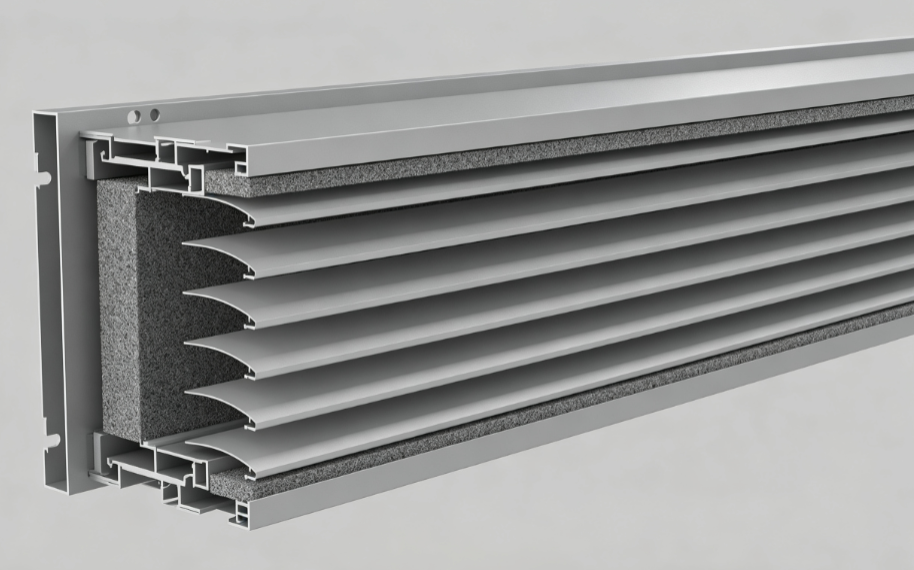

Custom Manufacturing Options for Louver Aluminum Profiles

Customization Brings Modeling Freedom

Relying on the excellent extrusion molding characteristics of aluminum, the manufacturer can open the mold separately to create exclusive cross-section blades and supporting frame profiles. The mold can accurately control the integrated built-in structures such as blade thickness, internal reinforcing ribs, guide grooves, snap grooves, etc., without secondary processing in the later stage.
Asymmetric blades and arc-shaped streamline sections can be designed to optimize ventilation airflow, and at the same time, differentiated building appearance can be created. Screw holes and fixing slots can be reserved for profile integration, simplifying site assembly process and reducing size error caused by site processing.

Diversified Surface Customization Process

Anodic oxidation supports transparent, bronze and black basic colors, thickened hard oxidation greatly improves the wear resistance of the surface, powder coating covers a full set of RAL standard color cards, matte, high gloss, metallic glitter and other special texture effects can be customized on demand.
Fluorocarbon coating weather resistance industry top, adapt to high-end landmark exterior wall long-term sun and rain scene, wood grain transfer process re-engraved solid wood warm texture, taking into account aluminum durable anti-corrosion advantages and log decoration appearance, perfect for home improvement projects

Deep Machining and Assembly Function Customization

CNC milling equipment accurately completes the process of profile opening and grooving, perfectly matches all kinds of supporting hardware accessories such as motors, connecting rods, insect nets, etc. Seamless welding process creates the overall frame, and the splicing gap is extremely small, improving the waterproof sealing and visual cleanliness of the facade.
Electric actuators and temperature sensors can be installed to create intelligent louvers. Blade punching, built-in acoustic cotton customized acoustic louvers, built-in thermal insulation broken bridge to improve energy-saving performance, hidden buckle modular design without exposed screws after installation, improve building aesthetics.

Size, Engineering Special Customization Services

The product size covers small household window shutters to several meters high large curtain wall shutters, all customized according to the project opening size, the manufacturer's supporting professional engineering team completes the wind pressure, load bearing and ventilation calculation, meeting the acceptance requirements of local building codes.
Modular batch prefabricated components are adopted, and the construction period is greatly shortened by splicing and fixing on site. For special conditions such as chemical industry, coastal area and typhoon-prone area, the manufacturer can customize a complete set of thick, high corrosion resistance and impact resistance profiles.

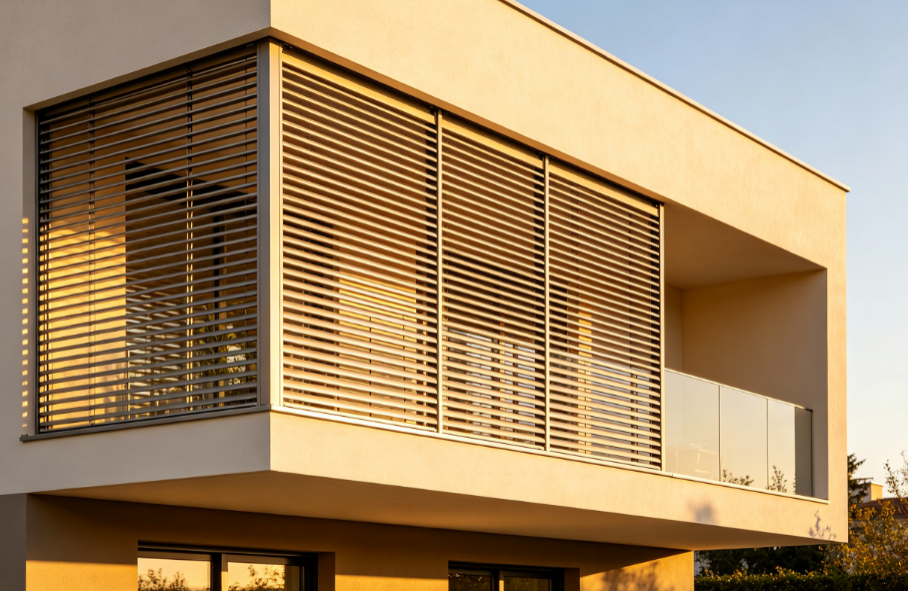

Why Work with an Experienced Aluminum Profile Manufacturer

Professional Engineering and Design Support

Senior manufacturers are proficient in aluminum alloy grades, extrusion technology, louver ventilation and waterproof full set of professional technical knowledge, the early stage of the project can provide free structural optimization, air volume calculation, wind pressure load calculation and other complete technical solutions to avoid design stage defects.
Guide the selection of materials and coatings in the whole process, benchmark AMCA, AAMA and ASTM international industry standards, predict common engineering problems such as outdoor corrosion and strong wind deformation in advance, and reduce the risk of maintenance and rectification in the later stage of the project from the source of profile structure.

Mature Project Case and Stable Supply Guarantee

The company has a large number of office buildings, factories, residential shutters landing real cases, can provide complete engineering reference and cooperation customer endorsement, with ISO, Qualanod, Qualicoat full set of industry certification, product compliance to adapt to various government bidding projects
Improve raw material inventory and standardized production scheduling, be able to deliver goods on time in strict accordance with the established project schedule, avoid construction delay, and provide a complete after-sales warranty system. Coating and structural quality problems can be quickly reissued and repaired.

Customized R and D capability

Manufacturers can independently develop new special molds for shutter sections, develop new energy-saving profiles for intelligent buildings and low-carbon shading scenarios, closely follow the development trend of intelligent buildings, and support integrated electric induction shutter profiles to adapt to automatic ventilation facade systems.
Continuously upgrade the environmentally friendly high weather resistant coating process to reduce harmful substance emissions, and at the same time develop special profiles for emerging markets such as old building renovation and photovoltaic shading, and continue to provide cutting-edge and cost-effective ventilation shutter solutions for various new projects.

Long-term Stable Strategic Cooperation Value

Long-term cooperation manufacturers can keep exclusive mold drawings, repeat project orders can be quickly scheduled and delivered, continuously synchronize new materials and new process information in the industry, and provide more cutting-edge and cost-effective ventilation shutter design solutions for subsequent new projects.
Façade leakage, shutter falling fault will produce high maintenance compensation, reliable professional manufacturers to assume complete product quality responsibility, stable supply, perfect after-sales, professional technical support triple guarantee, long-term cooperation greatly reduce the construction project operation and maintenance risks.

Conclusion

Compared with wood, steel, plastic and other traditional building materials, louvered aluminum profiles have outstanding advantages, which can fully meet the construction needs of residential, commercial and industrial ventilation systems.  With the continuous popularization of low-carbon buildings and intelligent facades, the market demand for customized aluminum blinds has steadily increased. Choosing the right profiles and senior manufacturers can maximize the comprehensive value of ventilation, shading and energy saving.
