At present, the competition in the advertising industry is becoming more and more fierce. As the offline mainstream propaganda carrier, lighting light boxes are widely used in supermarkets, airports, exhibition halls and other scenes.Custom light box aluminum profile is the core support of light box quality and face value. Compared with ordinary profiles, it can adapt to various scene requirements.

Why Custom Light Box Aluminum Profiles Matter for Advertising

Inevitable Requirements of Technology Iteration

Traditional light box materials have the disadvantages of easy deformation, rust or poor texture, and it is difficult to adapt to the requirements of modern LED light boxes for lightweight, high strength and heat dissipation.
With the comprehensive advantages of light weight, high strength, corrosion resistance and good thermal conductivity, aluminum profiles replace the pain points of traditional materials.Its customization function can optimize the structure of the LED layout, heat dissipation requirements and installation methods of the new light box, adapt to the iteration of modern advertising light box technology, and become the core material for industry upgrading.

Exclusive Differentiation Advantage

Customized light box aluminum profile is made by extrusion process, and exclusive slots such as fabric tension can be reserved to adapt to various light box picture materials and installation forms.
Custom profiles can be seamlessly spliced and installed without dead corners to achieve a flat and simple display effect.It can not only meet the light luxury display of retail terminals, but also adapt to the load bearing of outdoor billboards, so as to solve the industrial problems of poor adaptation and different effects of general profiles.

Practical Core Values

Customized aluminum light boxes can enhance the brand display texture, the frame is flat and the light is uniform, which can avoid the problem of skew and uneven light and shadow, strengthen the brand high-end image and enhance the advertising communication effect.Uniform profiles ensure standardized presentation of chain brand stores.
At the same time, aluminum profiles have strong weather resistance, can resist ultraviolet rays, wind and rain erosion, long-term use is not easy to fade, deformation, rust, greatly reduce the maintenance and replacement costs of light boxes.Its recyclable environmental attributes can also help brands practice the concept of green development and conform to the ESG development trend of the current commercial market.

Customizable Types of Advertising Light Box Aluminum Profiles

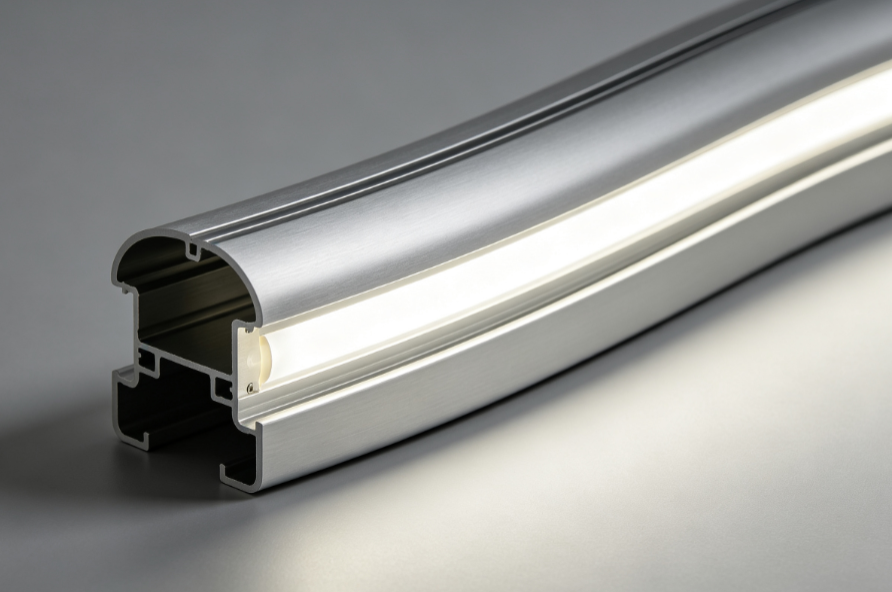

Ultrathin Side Auminous Profile

Ultra-thin side light profile is widely used in high-end commercial custom light boxes.Its frame is extremely narrow, usually 20 to 40 mm deep, and can be installed to achieve an almost borderless visual experience.The design aims to weaken the frame, highlight the advertising image, and adapt to modern simplicity and light luxury style.
By optimizing the lamp slot and light guide structure, the side lighting profile effectively improves the corner shadow and uneven light of the traditional lamp box, and realizes uniform lighting of the picture.It is widely used in high-end brand stores, corporate lobbies, star hotels and other indoor advertising scenes with high texture requirements.

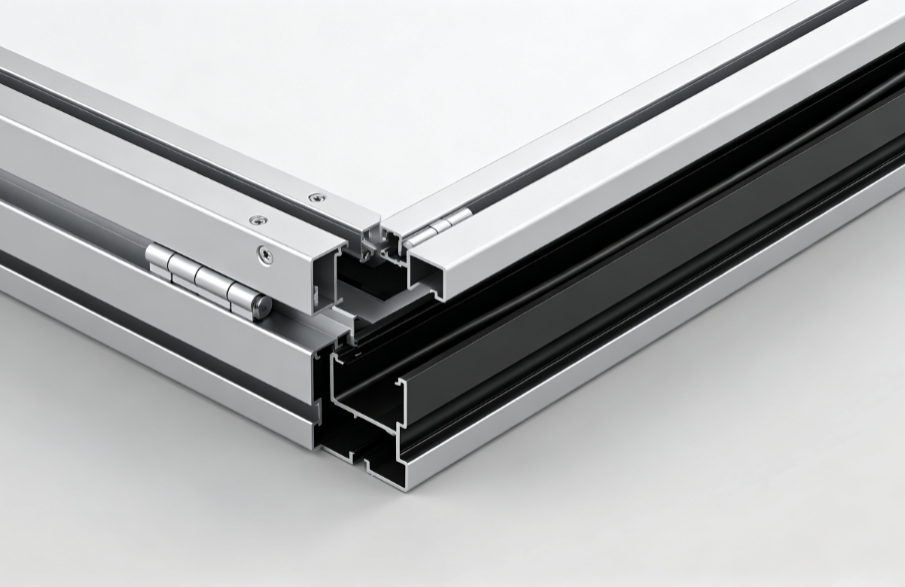

Front Opening Standard Profile

Open-type profile is a common customized part of advertising, which can be changed without disassembling the overall frame, simplifying the picture update process.In order to meet the scenes where frequent replacement of promotional information is required, such as supermarket catering, the customized model optimizes the opening and closing structure to make it smooth and durable and easy for daily maintenance.
The profile can reinforce the four-corner splicing structure, and reserve hidden wiring grooves and lamp fixing positions to avoid problems such as exposed lines and loose frames.It is mainly suitable for advertising scenes that need to be updated regularly, such as supermarket light boxes, store display boards and office building bulletin boards.

Double-sided Back-to-back Profile

Double-sided back-to-back profiles are specially customized for two-way visual advertising display. The symmetrical structure design can balance the load bearing pressure and lighting layout of double-sided light boxes, avoiding the tilting deformation of the frame.Independent lighting installation space and heat dissipation channel are reserved inside the profile to ensure stable operation of double-sided lighting.
The customized profile supports independent replacement of double-sided pictures without overall disassembly, greatly reducing the cost of replacement and maintenance in the later period.Often used in shopping malls atrium, airport passages, pedestrian streets and other crowded multi-perspective public scenes.

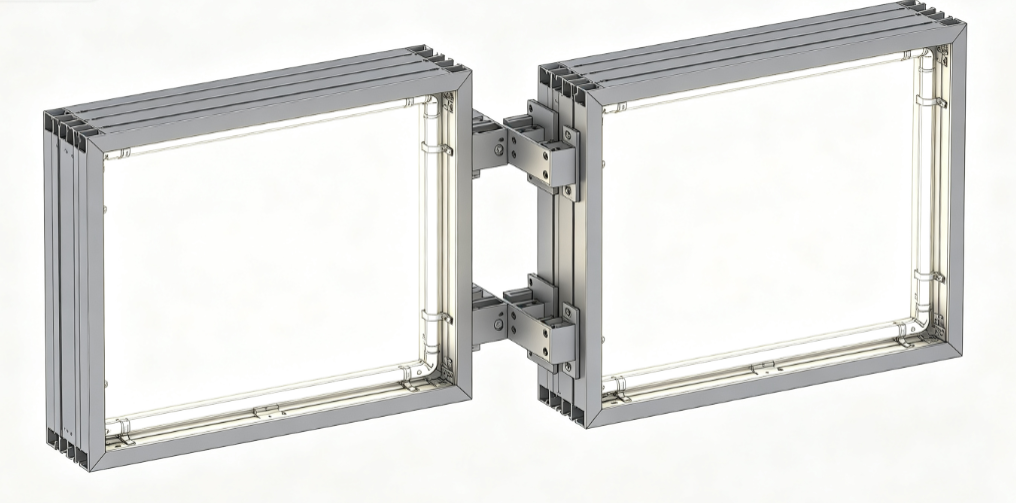

Modular Spliceable Profiles

Modular spliceable profiles adopt standardized buckle interfaces, breaking the size limit of traditional light boxes, and can be freely spliced and expanded according to requirements. They can not only make small single light boxes, but also be spliced into super size exhibition background walls or outdoor integrated advertising screens.Custom buckle structure close bite, small gap, strong integrity.
The profile is flexible and stable, easy to disassemble and reuse, suitable for short-term publicity and commercial activities layout, can also be fixed into outdoor advertising facilities, can help businesses reduce material procurement costs.

Outdoor Weather Resistant Profiles

Outdoor weather resistant profiles are designed for complex outdoor environments. The wall thickness is thickened and the drainage, ventilation and sealing structures are built in. It can effectively block rainwater and dust, protect internal LED lamps and circuits, and avoid moisture and dust accumulation.
The profile surface adopts weather resistant coating, which has strong wind and rain erosion resistance and is suitable for outdoor advertising, platform light boxes and other open-air scenes.

Custom Profile

Special-shaped customized profiles belong to high-end personalized customized categories, which can be opened according to design requirements to create special sections, break through the limitations of traditional rectangular light boxes, fit architectural curved surfaces and decoration modeling, and create immersive brand visual scenes.
The profile can optimize the tension, lighting and splicing system, giving consideration to the beautiful shape and the uniformity and stability of the light box. It is suitable for art advertising devices in flagship exhibition halls, cultural and creative spaces and commercial blocks, helping brands to create differentiated publicity scenes.

How to Pick Alloy Grades for Light Box Profiles

6063-T5/T6

6063-T5/T6 is a common brand of aluminum for advertising light boxes. It has good extrusion performance and smooth surface. It is suitable for a variety of high-end surface treatments. It is the basic material for creating high-value light boxes.It is light weight, easy to process, high yield, high cost performance, suitable for mass customization of light boxes.
The alloy has good toughness and corrosion resistance, can meet the long-term use requirements of indoor and semi-outdoor advertising light boxes, and is not easy to deform and fade.Because of its good appearance adaptability, 6063-T5/T6 alloy profiles are often used for smooth and delicate light luxury, minimalist style advertising light boxes.

6061-T6

The strength, hardness and corrosion resistance of 6061-T6 alloy are better than those of 6063 alloy, and the structure is stable and not easy to bend and deform, thus solving the problem of difficult bearing of common alloy.After T6 aging treatment, its internal structure is stable, temperature difference resistance, corrosion resistance and service life are significantly improved.
This alloy is mainly used for large size lamp boxes with high load-bearing requirements, which can effectively avoid the problems of drooping, gap widening and the like, but is more suitable for standard profiles with regular large size, and the extrusion molding of complex special-shaped sections is difficult.

6082-T6

6082-T6 is the 6 series alloy with the highest strength for light boxes. It has extremely strong wind pressure resistance, deformation resistance and tensile resistance. It is a special alloy for harsh scenes.The alloy optimizes the internal proportion, greatly improves the bearing capacity, can bear the weight of an oversized size lamp box and the impact of outdoor strong wind, and has stability far superior to that of ordinary alloy.
This brand is mainly used for high-risk and high-load scenes such as hanging large-scale lighting billboards at high altitude, outdoor oversized advertising light boxes, outdoor signs in open and unobstructed areas, etc. It can effectively resist harsh environments such as strong wind, rainstorm, severe temperature difference, etc., and eliminate potential safety hazards such as deformation, falling off and damage of light boxes. It is a protective material for outdoor large-scale advertising projects.

Niche Special Purpose Alloy

5 series marine grade aluminum alloy is specially developed for coastal environment. It has stronger salt fog resistance and moisture corrosion resistance than 6 series alloy. It can resist corrosion in high salt and high humidity environment for a long time, avoid oxidation, peeling and corrosion. It is suitable for outdoor advertising light boxes in coastal cities.
Lightweight alloys such as 6005 and 6060 are suitable for simple indoor light boxes with light weight and low cost and good molding performance.It can meet low-demand scenarios such as small light boxes and display panels without high load-bearing capacity, which can effectively control costs while ensuring basic functions.

Key Design Factors for Custom Light Box Profile Production

Section Structure and Function Slot Position Design

Profile section structure is the core of customized design. It is necessary to design exclusive functional slots according to the lighting system and picture fixing method of the lamp box, accurately reserve lamp belt installation area, heat dissipation fins, fabric tension card slot, acrylic plate embedding groove and other structures to ensure close fit and regular layout of internal accessories.
Outdoor profiles need to be additionally designed with drainage grooves and ventilation structures to avoid rainwater deposition and internal moisture damage to LED equipment. At the same time, optimize the line storage channel to realize hidden wiring, so as to make the overall appearance of the light box clean and simple, and improve the refinement of advertising display and the safety of equipment use.

Wall Thickness Structure and Precision Control Design

Customized design shall follow the principle of "zoning thickening and overall lightweight", thickening and reinforcing the corners, installation fixing points and long-span load-bearing areas of the profile to improve the structural stability, simplifying the wall thickness in other areas, and avoiding excessive weight of the profile to increase the installation burden and material cost.
Advertising high-end light box has extremely high requirements for size accuracy. Customized production needs to control ±0.1mm precision tolerance, ensure seamless profile splicing, straight and flat frame, eliminate the problems of skew picture and uneven light and shadow, and meet the standardized and high-end display requirements of brand.

Heat Dissipation, Splicing and Modular Design

According to the continuous heating characteristics of LED light bars, the internal heat dissipation structure of the profiles needs to be optimized. By widening the heat dissipation fins and increasing the heat dissipation area, the heat of the equipment can be quickly dissipated to avoid the color temperature shift caused by the local high temperature of the lamp box and the aging acceleration of the lamps, so as to ensure the long-term uniform lighting effect.
The splicing structure preferably adopts invisible buckle and beveled seamless docking design, with hidden fasteners, no exposed screws, and improves the overall aesthetics.At the same time, it adapts to modular design, unifies interface specifications, supports free expansion and reorganization in the later stage, and adapts to multi-scene and size advertising display requirements.

Process Adaptation and Environmental Design

Profile appearance design needs to adapt to various surface treatment processes, optimize corner radian, eliminate mold lines, ensure uniform formation of anodizing, powder spraying and other processes, no defects, no color difference, can accurately match the brand's exclusive color matching and texture requirements, improve the overall color of the lamp box.
Modern custom design takes into account environmental protection and energy saving, reduces raw material loss by optimizing the cross section structure, and adapts to energy-saving LED lighting system, relying on the thermal conductivity of high-quality aluminum to reduce energy consumption, which is in line with the green and low-carbon development trend of advertising industry.

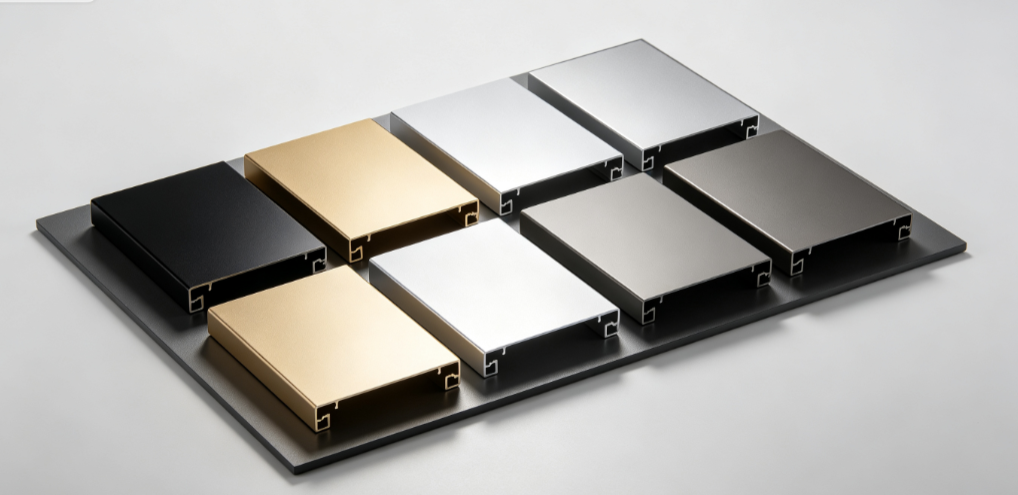

Top Surface Finishes for Advertising Aluminum Profiles

Anodic Oxidation Process

Anodic oxidation is the mainstream process of high-end light box profiles. Through electrochemical oxidation, a dense and stable oxide film is generated on the surface of aluminum, which is divided into transparent natural color and color oxidation. The finished surface is delicate and transparent, with advanced metal texture, excellent wear resistance, scratch resistance and UV resistance.
The process can realize various pure color effects such as black, champagne gold, bronze and the like, has strong color adhesion, is not easy to fade and peel after long-term outdoor use, and is suitable for advertisement display scenes with high requirements on texture and stability such as high-end stores, government and enterprise exhibition halls, airports and the like.

Electrostatic Powder Spraying Technology

Powder coating adopts electrostatic adsorption principle to attach powder coating to the surface of profile, and forms thick and uniform protective layer after high temperature curing. The color selection is rich, which can accurately match the exclusive colors of various brands. Meanwhile, it supports matte, gloss, matte and other texture effects.
The process has outstanding corrosion resistance and weather resistance, can effectively resist outdoor wind, rain and dust erosion, has high cost performance, is suitable for large-scale outdoor advertising light boxes and commercial super public area light boxes, can keep the appearance clean and intact for a long time, and reduces the difficulty of operation and maintenance.

Electrophoretic Coating and Mechanical Texture Technology

Electrophoretic coating belongs to high-precision surface treatment process, uniform and delicate coating, can cover fine grooves and corner corners of profiles, no particles, no defects, corrosion resistance far beyond ordinary technology, suitable for custom shaped light box profiles with complex structure and more grooves.
The mechanical texture process includes wiredrawing, polishing, and sandblasting. It creates a unique industrial texture through physical processing. The matte effect of sandblasting can effectively reduce light reflection, avoid glare interference on the screen, and adapt to high-end indoor advertising scenes with light luxury and minimalist style.

Special Texture and Composite Technology

Special processes such as wood grain transfer can restore realistic wood texture on the surface of aluminum profile, give consideration to the durability of aluminum material and warm texture of wood, adapt to the characteristic advertising scenes of residential accommodation, catering and cultural creation brands, and break the visual limitation of traditional metal profile.
Composite technology combined with a variety of treatment technologies, such as anodizing reinforcement of structural parts, visible surface powder spray color matching, taking into account structural stability, protection and visual aesthetics, is the mainstream matching scheme of high-end customized advertising light boxes.

Production Processes for High-Quality Custom Aluminum Profiles

Early Design and Extrusion of Raw Materials

In the early stage of customized production, it is necessary to combine the customer's light box requirements, design the sectional structure of the profile through CAD and CAE simulation, simulate the force, heat dissipation and splicing effects, optimize the structural details, customize the exclusive extrusion mold after confirming the drawings, and ensure that the profile structure accurately adapts to the advertising light box use scene.
Then, 6-series high-quality aluminum rod raw materials are selected, preheated at high temperature, and then high-pressure formed by large-scale extrusion equipment to complete the overall structure of the profile in one go, ensuring the accuracy of functional slot positions, wall thickness, and size, and controlling the profile from the source. Basic quality.

Cooling Straightening and Heat Treatment Strengthening

After extrusion molding, the profile is quickly quenched and cooled to stabilize the internal structure of the profile, avoid deformation and distortion in the later stage, and then stretch and straighten through professional equipment,accurately correct the flatness, ensure that the profile is straight and free of bending, and meet the installation requirements of seamless splicing.
After straightening, artificial aging heat treatment is carried out to achieve T5 and T6 hardness standards according to requirements, greatly improving the structural strength, stability and deformation resistance of profiles, and adapting to the load-bearing and weather resistance requirements of different indoor and outdoor scenes.

Precision Machining and Surface Treatment

After heat treatment, the profiles are processed by CNC precision machining to complete drilling, grooving, cutting, corner cutting and other processes, accurately adapt to the installation, routing and splicing requirements, and ensure uniform size, consistent precision and no machining error for large-batch products through automatic processing.
According to the customization requirements, surface treatment such as anodization and powder spraying shall be carried out, and the process parameters shall be controlled in the whole process to ensure uniform coating, uniform color and flawless coating. Finally, protective film shall be pasted to avoid scratch damage during transportation and assembly.

Quality Inspection and Finished Product Packaging

The finished products need to undergo strict multi-dimensional quality inspection. The size accuracy, structural strength, and surface texture are tested by precision instruments. At the same time, the weather resistance and heat dissipation performance are tested by simulating the outdoor environment to eliminate unqualified products and ensure the quality of each batch of profiles. Uniform.
After passing the quality inspection, foam, protective film and customized wooden boxes are used for layered packaging. The corners and surfaces of the profiles are protected in all directions to avoid collision, wear and deformation during transportation. The finished products can be directly put into assembly after delivery.

How to Select a Reliable Custom Aluminum Profile Manufacturer

Verification of Special Technical Strength of Manufacturers

High quality custom manufacturers need to have professional light box profile research and development capabilities, familiar with the LED layout of advertising light boxes, fabric tension, waterproof heat dissipation and other exclusive requirements, rather than general aluminum processing, according to customer needs to provide structural optimization, process improvement professional technical solutions.
At the same time, it needs to be equipped with a complete integrated production line for mold design, extrusion, processing and surface treatment, independently complete the whole process of mold opening, production and processing, effectively control the precision and quality of products, shorten the production cycle, and avoid the quality problems caused by outsourcing processing.

Verification Qualification and Quality Control System

Formal and reliable manufacturers need to have ISO9001 quality system, ISO14001 environmental protection system and other authoritative certification, establish standardized production and quality inspection processes, can provide material testing reports, process compliance certificates, to ensure that products meet the advertising industry standards.
At the same time, manufacturers need to have a perfect raw material traceability system, select genuine 6 series aluminum alloy materials, eliminate inferior recycled aluminum materials, provide material certificates according to customer needs, ensure the strength and weather resistance of profiles, and adapt to long-term commercial scenarios.

Evaluate Capacity, Delivery and Customization Services

Before cooperation, it is necessary to evaluate the production capacity of the manufacturer to confirm that it can undertake small-batch personalized customization and large-batch standardized orders. At the same time, it has the ability of rapid mold opening and prototyping, and can quickly respond to the project characteristics of strong timeliness and diversified demand in the advertising industry.
High-quality manufacturers can provide one-to-one technical docking in the whole process, from scheme design, structure optimization, sample confirmation to batch production, timely solve various problems in the customization process, and ensure that the products accurately match the project landing requirements.

Examining Reputation, After-sales and Environmental Protection Capabilities

The strength of manufacturers can be verified through industry cases and customer word-of-mouth, and manufacturers with a large number of customized high-end light box profiles in the advertising logo industry shall be given priority. The adaptability and landing effect of their products are more guaranteed, and various landing hidden dangers can be avoided.
At the same time, it is necessary to confirm that the manufacturer has a complete after-sales guarantee system, provides technical guidance, product warranty, and after-sales maintenance services, and adopts environmentally friendly production processes and low VOC treatment materials, which meets the development needs of brand green promotion.

New Trends of Custom Advertising Light Box Aluminum Profiles

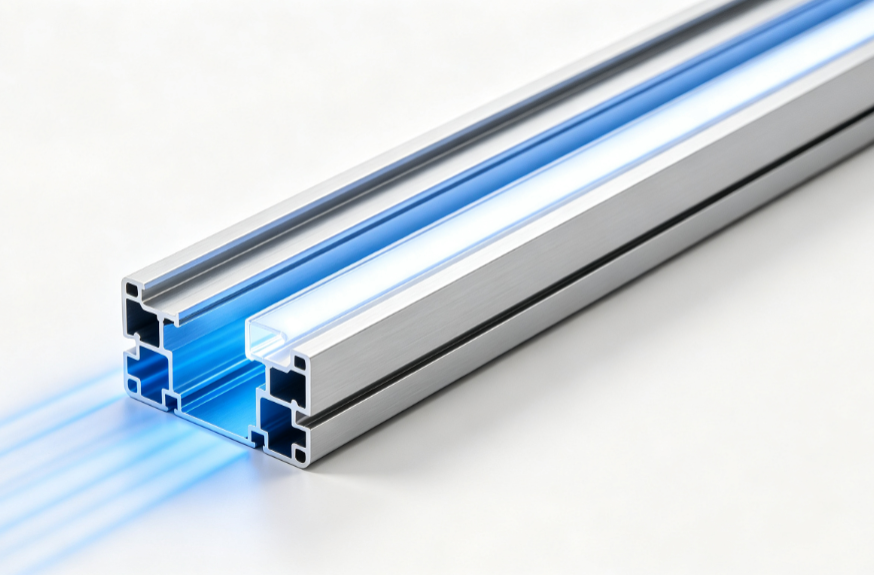

Modularization Trends

Modular reconfigurable profiles have become the new favorite in the industry. The standardized buckle structure supports free splicing, disassembly and reorganization, and can adapt to various advertising scenarios such as temporary exhibitions, flash stores and seasonal promotions, greatly reducing the cost of repeated procurement of materials for brands.
At the same time, the profiles gradually realize intelligent integration, reserve special slots for sensors, intelligent lighting and data transmission, and realize automatic adjustment of lighting brightness and color temperature through linkage intelligent system to create interactive and digital new advertising display carriers.

Green Low-carbon Environmental Protection Upgrade Trend

Under the double-carbon policy, environmentally friendly production has become the core trend of the industry. Manufacturers have begun to use high-recovery recycled aluminum and low-carbon aluminum to produce customized profiles on a large scale, with low-VOC environment-friendly surface technology, which greatly reduces production energy consumption and pollution emissions.
At the same time, the profile structure is continuously optimized, the loss of raw materials is reduced through topological design, and aluminum materials can be recycled indefinitely, which helps the brand realize green marketing and meets the needs of ESG development and sustainable operation of the enterprise.

Fine and Fast Customization

The surface technology continues to be upgraded, and new technologies such as anti-glare matte, self-cleaning nano-coating and dynamic discoloration are gradually popularized, which can not only improve the visual texture of light boxes, but also reduce dust adhesion and light reflection, and adapt to various high-precision advertising display scenes.
Digital production technology accelerates implementation, AI assists mold design, 3D rapid proofing, flexible production line greatly shortens customization cycle, so that niche personalized customization demand can be quickly implemented, adapting to the fast-paced and diversified development characteristics of current advertising industry.

Conclusion

This article comprehensively combs the value, category, material selection, design, production and industry trends of customized aluminum profiles, covering the core points of the whole process of customization.  Custom aluminum profiles have become the core material of modern advertising lighting by virtue of their strong adaptability, good texture, durability and environmental protection. Accurate control of material selection, design and manufacturer screening points can create high-quality light boxes to help brands improve advertising effectiveness.
