LED lamp strip aluminum profile is the core accessory of modern linear lighting project, widely suitable for home decoration, commercial tooling, architectural landscape and other lighting scenes.  It effectively makes up for many short boards of poor heat dissipation, easy damage and messy lighting of bare LED lamp belt, and takes into account multiple effects of protection, heat dissipation and decoration. It is the core component of creating high-end professional linear lighting.

What Is an Aluminum Profile for LED Strip Lighting?

Product Base Definition and Nickname

LED light strip aluminum profile is also often referred to as LED aluminum channel, aluminum extrusion, light strip shell, is specially designed for flexible LED light strip linear aluminum structural accessories.It integrates three core functions: mounting fixed base, dustproof and waterproof protective shell, and efficient heat dissipation carrier. It is an indispensable part of standardized linear lighting system.
This special profile is mainly used to fix all kinds of flexible LED light strips of conventional specifications, perfectly adapted to the mainstream light strip widths of 8mm, 10mm, 12mm, etc.Through the standardized integrated structure design, scattered and simple bare lamp strips can be upgraded to regular, beautiful, sturdy and durable finished professional lighting fixtures.

Production Technology and Material Characteristics

High-quality LED lamp strip aluminum profiles on the market are uniformly made of 6063-T5 industrial high-quality aluminum alloy raw materials and formed by precision extrusion process.In the production process, the molten aluminum is pressed by customized precision molds to form standardized profile structures with accurate cross sections, uniform specifications and minimal errors.
Precision extrusion technology to create aluminum profiles both lightweight and high rigidity of the dual advantages, the overall weight is light and easy to handle installation, while the structure is stable and not easy to bend deformation.Product size accuracy is high, stability is good, long-term adaptation indoor, outdoor complex lighting installation scenarios.

Why Use Aluminum Profiles with LED Strip Lights?

Improve Heat Dissipation Capacity

Among the commonly used metal materials, aluminum alloy has the thermal conductivity second only to copper, and at the same time has the advantages of lightweight, low cost and easy processing, and the comprehensive cost performance is far superior to copper.Aluminum profiles rely on a large area of contact surface, which can quickly export the heat generated by the lamp strip to achieve efficient heat dissipation and cooling.
Scientific and reasonable heat dissipation control system can effectively increase the overall service life of LED lights by more than 50%.It can keep the brightness of lights consistent and the color pure and stable for a long time, and greatly reduce the cost and frequency of lamp replacement and maintenance.

Enhanced Protective Performance

The hard metal shell of aluminum profile is matched with sealed diffusion plate, which can form a fully enclosed three-dimensional protective structure and wrap the lamp strip in all directions.Can effectively block dust, moisture, external impact, all-round protection of lamp circuit and lamp safety.
Special waterproof profiles with high IP protection level can be stably adapted to wet environments such as kitchens, toilets, balconies and outdoors.Completely eliminate the problems of short circuit, corrosion, water damage and so on, and greatly improve the safety and stability of lamps and lanterns.

Optimize Lighting Effects

Aluminum profile matching professional diffusion plate can evenly disperse, soften the light with the lamp, completely eliminate glare and spot spot.Output smooth, coherent, uniform and delicate linear soft light, comfortable and advanced visual experience, greatly improve the lighting texture.
The rigid structure of the aluminum profile ensures that the light lines are straight and clean, with a variety of surface processes and installation methods.It can create a variety of high-end effects such as floating lights, hidden lights, wall washing lights, etc., perfect for all kinds of exquisite decoration and commercial design scenes.

Simplified Installation Process

The aluminum profile adopts rigid mechanical fixing method, and is firmly attached to the installation base surface through special buckles and screws, which is not easy to deform, fall off and loosen.Can accurately control the lighting lines, so that the overall installation of finished products neat and uniform, neat and beautiful.
Modular splicing design is adopted for profiles, which supports ultra-long distance continuous laying and installation, and the corner and butt joint construction is convenient and smooth.At the same time, it is easy to disassemble, facilitate the maintenance, replacement and upgrading of the lamp belt in the later period, and greatly improve the overall maintenance efficiency.

Types of Aluminum Profiles for LED Strip Lighting

Exposed Aluminum Profiles

Exposed aluminum profile is the most versatile and widely used profile style in the market, and the main body is mostly standard U-shaped and rectangular groove structure.The groove depth and internal width are rich, which can be flexibly adapted to all kinds of LED lights with conventional width and power.
Exposed profiles do not need to be slotted and perforated, do not need to destroy the original decoration base, the construction process is simple and convenient, and the landing efficiency is high.The profile has large exposed area, sufficient heat dissipation space and stable heat dissipation performance, which can meet the heat dissipation requirements of most conventional scenes.

Embedded Aluminum Profiles

Embedded aluminum profiles are also known as gray profiles, embedded profiles, side edge with extended wing structure, can be directly embedded in gypsum, putty, wood panels and other base surfaces.After installation, the profile is flush with the base surface, without protrusion and abrupt feeling.
This profile creates a borderless, invisible, minimalist light effect, with the light completely hidden inside the structure and only soft light.It is the preferred core profile style for high-end minimalist decoration and integrated architectural lighting design.

Corner Aluminum Profile

The corner aluminum profile adopts exclusive L shape and 45° oblique angle structure design, and the size accurately matches the 90° right angle intersection position of wall and cabinet.It can perfectly solve the common problems such as light fault and shadow blackening in conventional profile corner splicing.
The profile structure can be closely attached to the corner installation base surface, fixed firmly, not easy to loose displacement, and has strong adaptability.It can achieve coherent lighting without dead corners and faults, with natural and smooth lighting transitions and unified overall effects.

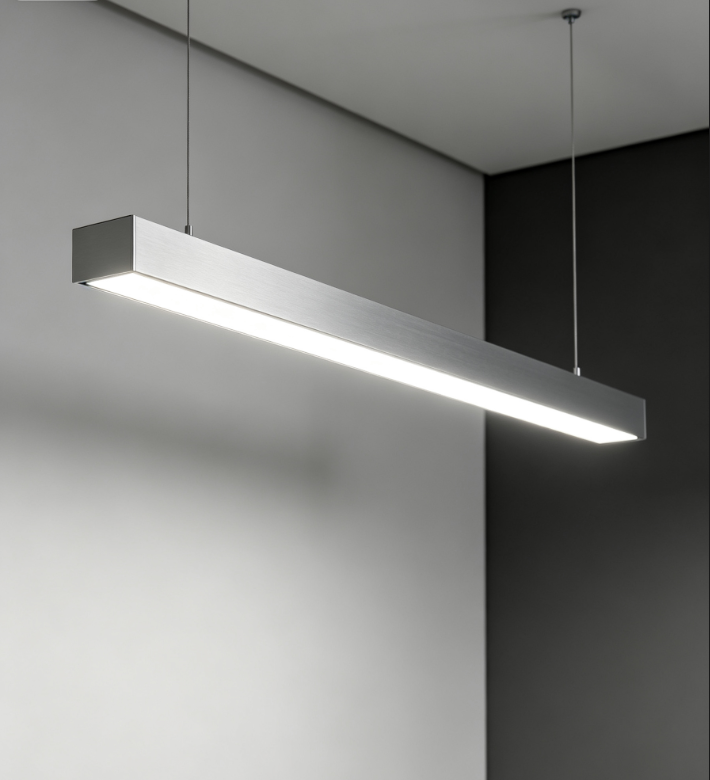

Suspended Aluminum Profile

Suspended aluminum profile with special suspension wire, suspender accessories, can be directly suspended on the indoor top surface, flexible and unique installation method.Support single-sided lighting, double-sided lighting two modes, lighting display effect three-dimensional atmosphere, very design sense.
Suspended profiles have spacious internal cavity space, large heat dissipation area, excellent heat dissipation performance, and can be adapted to high-power high-brightness lamp strips.The overall structure is stable, load-bearing strong, long-term suspended use is not easy to shake, not easy to deform.

How to Choose the Right LED Aluminum Profile

Matching Lamp Strip Parameter Specification

The first core step of profile selection is to check the width of the internal groove of the profile, which must be accurately matched with the width of the LED light strip.8mm, 10mm and 12mm are the mainstream specifications of lamp strips in the market, and the matching aluminum profiles corresponding to the exclusive size.
If the profile groove width is too large, it will lead to shaking, deviation and inaccurate alignment of the lamp strip after installation; if the groove width is too small, the lamp strip cannot be embedded and normal construction cannot be carried out.Accurate size matching is the basic premise to ensure stable installation and regular lighting.

Determine Installation Method and Scenario

For the scene of renovation of old houses and installation of lights in the later stage, it is preferred to select exposed profiles without grooving or destroying the original decoration base surface.Simple construction, high cost performance, suitable for most indoor basic lighting scenarios.
The decoration project of the whole house is decorated in a minimalist and light luxury style, which is suitable for the selection of embedded profiles.It can realize the invisible effect of integration of light and space, let the light naturally blend into the space, and improve the overall design texture.

Consider Heat Dissipation Requirements

Ordinary low-power light strips in well-ventilated conventional indoor environments, the use of industry standard 6063-T5 profiles can meet all heat dissipation requirements.It can stably maintain the normal working temperature of the lamp belt and avoid high temperature failure.
Standard 6063-T5 profile uniform thermal conductivity, stable performance, not easy to deform, adapt to daily home improvement, small tooling conventional heat dissipation requirements.The product is mature and durable, and the service life and stability are fully guaranteed.

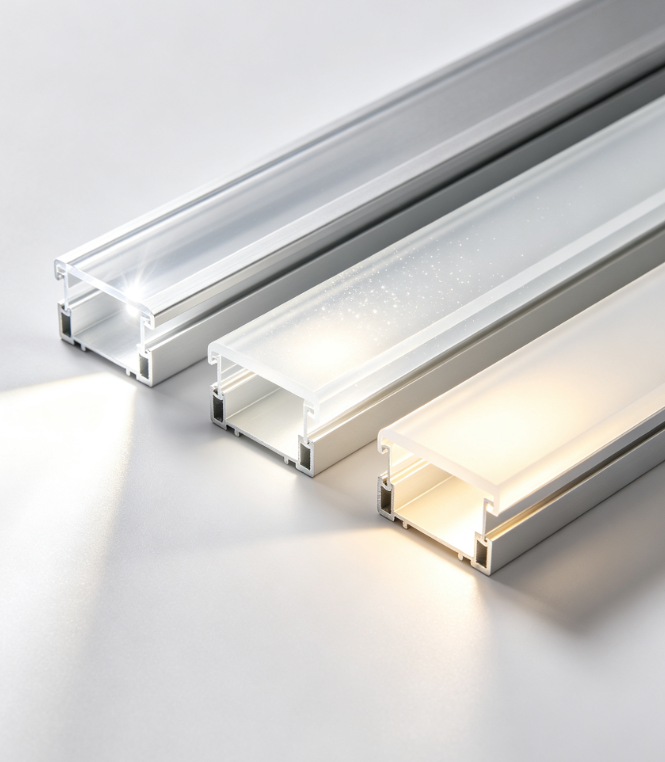

Select the Appropriate Light Diffusion Effect

The transparent diffuser has the highest transmittance and almost no light loss, which can retain the original brightness of the lamp strip to the greatest extent.Suitable for functional lighting scenes that require high brightness, high definition lighting effects.
The matte diffuser gives consideration to both transmittance and soft light effect, and the light is soft and not dazzling, and there is no obvious glare.Comprehensive adaptability is the strongest, is the daily home improvement, commercial basic lighting universal preferred style.

Common Applications of LED Aluminum Profiles

Home Improvement Residential Applications

Functional Auxiliary Lighting

Kitchen cabinets, bathroom sink bottom can be installed with ultra-thin surface mounted aluminum light strip, providing accurate countertop operation lighting.The light is even and soft without shadow, which can fully meet the functional lighting requirements of daily cooking and washing.
Small aluminum light strips can be embedded in wardrobes, shoe cabinets, bookcases and display cabinets to realize partial light supplement of cabinets.It not only enhances the practicality and convenience of the home space, but also enhances the refined texture and design atmosphere of the space.

Ambient Decorative Lighting

Ceiling top corner, plaster line, ceiling modeling position with embedded aluminum profiles, can create a soft suspended atmosphere lighting.It can visually raise the height of the space, weaken the sense of space depression, and create a warm and comfortable home atmosphere.
Indoor stair steps, wall modeling background wall with linear aluminum profile lighting, both night safety guidance and space decoration functions.Effectively enrich the sense of hierarchy of home space and enhance the overall decoration of high-quality texture.

Commercial and Retail Applications

Product Display Lighting

Supermarket shelves, product display cabinets, museum booths with aluminum linear light strips, light uniform transparent, no shadow dead angle.It can accurately highlight the texture and details of products and greatly improve the display effect of goods and exhibits.
Profile soft light design will not produce dazzling glare and mirror reflection, suitable for jewelry, clothing, cultural creation, art and other exquisite exhibits.It can effectively enhance the attractiveness of products and help stores improve the overall display texture.

Commercial Space Basic Lighting

Office, shop, exhibition hall and other commercial space, can use suspended, embedded aluminum linear lamps instead of traditional lamps.The lighting is regular and bright, simple and atmospheric, and can modernize and upgrade the overall visual effect of the space.
Leisure and commercial scenes such as hotels, restaurants and bars can create exclusive atmosphere through hidden lights in profiles.Adapt the style positioning of different stores, set off the corresponding consumption atmosphere, and effectively improve the grade and style of stores.

Architectural and Outdoor Engineering Applications

Building Interior Modeling Lighting

Interior wall washing, column decoration, ceiling modeling optimization, can be achieved with the help of aluminum profile lamp belt.Regular linear lighting can enhance the sense of architectural lines, highlight the spatial structure level, and improve the design integrity.
Uniform linear lighting effect, suitable for all kinds of tooling buildings, commercial space modeling design.It is the core supporting product of modern minimalist and light luxury architectural lighting design.

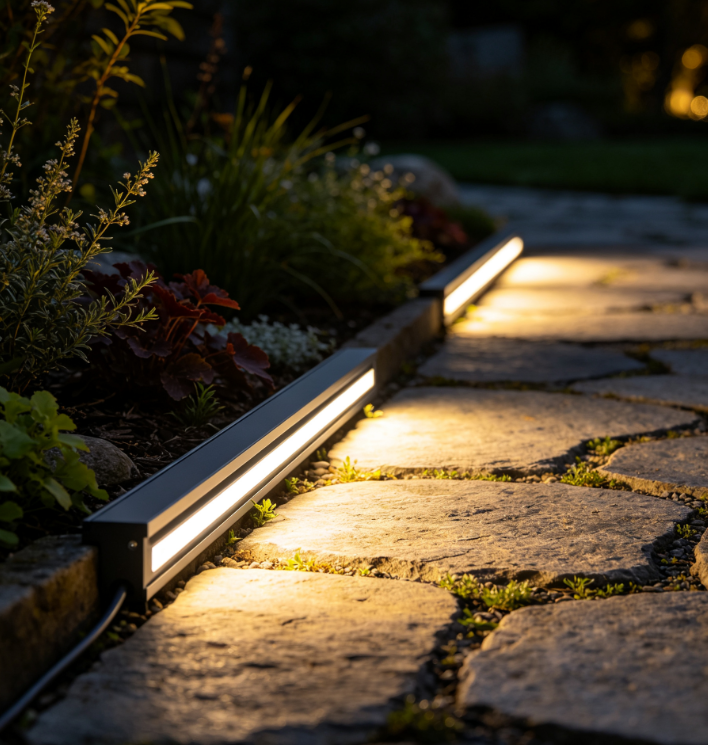

Outdoor Landscape Lighting

High IP waterproof aluminum profiles can be stably used in courtyard walks, terraces, building exterior walls, outdoor landscape modeling and other scenes.No fear of wind, rain, humidity, exposure and other harsh environments, durability and stability is extremely strong.
Outdoor linear lighting can beautify the night scene of the building, enrich the landscape level, and enhance the night appearance of the site.At the same time, it has the practical functions of road guidance and regional division, giving consideration to aesthetics and practicality.
Special and Industrial Applications

Vehicle and Custom Equipment Lighting

RV, yacht, car interior and other mobile space, can use customized aluminum profile light belt.The product is compact in size and excellent in heat dissipation performance, and can be adapted to narrow and special-shaped special installation spaces.
Aluminum profiles are sturdy and durable, anti-seismic drop resistance and anti-bump, which are perfectly suitable for dynamic mobile use scenarios such as vehicles and ships.Soft lighting is not dazzling, which can effectively improve the texture and comfort of interior space.

Tooling and Medical Cleaning Lighting

Modular aluminum profile light strips can be selected for exhibitions and temporary events, which are very convenient for installation, disassembly and handling.The product can be recycled, greatly reducing the lighting cost of the event.
Medical workshop, clean laboratory and other special places, the use of fully sealed aluminum lamps, smooth surface, dust easy to clean.It can meet the sanitary standards and safety lighting requirements of clean space.

Key Factors That Affect Aluminum Profile Performance

Alloy Grade and Purity

6063-T5 aluminum alloy is a general high-quality substrate in the lighting profile industry, with high thermal conductivity, strong plasticity and stable structure.Perfect balance between heat dissipation, structural strength and processing performance, suitable for most indoor and outdoor lighting projects.
Low purity and recycled aluminum impurities, uneven structure, poor thermal conductivity and heat dissipation performance, low stability.The profiles made of this kind of inferior aluminum are easy to deform, oxidize and crack, which leads to poor heat dissipation of the lamp belt and accelerated light aging, which seriously affects the life of lighting equipment and does not meet the standards.

Wall Thickness and Structural Strength of Profiles

Wall thickness affects product stability and heat dissipation, 1.5mm and above profile external heat dissipation area is larger, structure is more solid, not only heat dissipation is efficient to adapt to medium and high power lamp belt, and anti-impact, bending and deformation ability is strong, suitable for long-term lighting engineering.
Ultra-thin thin-walled profile light weight, easy to install, suitable for simple small lighting scenes, but poor heat dissipation, weak load.It is only suitable for low-power short-term lighting, can not meet the long-term high-load engineering needs, long-term use is prone to insufficient heat dissipation, profile deformation and lamp belt damage.

Cavity Size and Heat Dissipation Area

Profile cavity depth and external heat dissipation area determine the heat dissipation efficiency.The cavity is deep, the heat dissipation area is wide, and the heat is quickly dissipated.This kind of large cavity profile can efficiently dissipate the heat of high-power lamp belt, avoid high temperature accumulation, prevent overheating, color deviation or light decay of lamp belt, and ensure stable operation of equipment.
Shallow groove ultra-thin material has small internal cavity, limited external heat dissipation area, weak heat dissipation ability, and is only suitable for low-power and low-heat lamp strips.Such as blind collocation of high-power high-density lamp belt, heat is difficult to dissipate, will lead to high temperature accumulation, causing the lamp belt overheating burn.

Heat Dissipation Structure Design

High quality aluminum profile bottom smooth and flat, and lamp circuit board contact area is large, some high-end models have heat dissipation ribs.This design can expand the heat dissipation space, accelerate the heat conduction and dissipation, improve the heat dissipation efficiency, and adapt to high-load lighting.
The profile heat dissipation structure can quickly channel heat, keep the lamp belt constant temperature and stability, and avoid high temperature problems.This effectively suppresses light decay and color cast, ensures pure color, uniform brightness, and prolongs lamp life.

Impact of Environmental Conditions

High temperature, humidity and dust will increase the heat dissipation pressure, ordinary profiles are not applicable, must choose a thicker wall, heat dissipation and protection of stronger special profiles to ensure long-term operation.
In general indoor environment, 6063-T5 profile can meet the heat dissipation protection requirements.The specifications should be matched according to the actual working conditions to avoid performance imbalance to ensure the best performance of the luminaire.

Custom Aluminum Profiles for LED Lighting Projects

Cost and MOQ Requirements

Profile customization requires a new exclusive mold, which will generate basic mold development costs, and the overall upfront cost is high.Therefore, the customization mode is more suitable for medium and large batch engineering projects, and the cost pressure of small batch and scattered customization is relatively high, and the cost performance is relatively low.
Mass customization of large-scale whole line engineering can effectively share mold and development costs, greatly improving the overall cost performance.At the same time, it can guarantee the high uniformity of the specification, texture and effect of the whole field profile, avoid the problem of uneven spot products, and the landing effect of the project is better.

Cycle and Landing Process

The overall process of profile customization is more complicated, including many links such as scheme docking confirmation, exclusive mold making, sample proofing test, batch production, quality inspection and shipment, etc.The overall construction cycle is much longer than the spot profile, and the project needs to plan the construction period in advance and reserve sufficient time.
Most regular manufacturers support pre-proofing confirmation services, which can check the profile size, lighting effect, heat dissipation and protection performance in advance.Be able to check program deviation and product problems in advance, effectively avoid the risk of defects and large-scale rework after mass production.

Installation Tips for LED Aluminum Profiles

Pre-installation Preparation and Planning

Field Measurement and Scheme Planning

Before construction, the installation size shall be accurately measured, and the splicing point and segment length of profiles shall be planned.For long distance installation, thermal expansion and contraction joints shall be reserved to avoid deformation and cracking of profiles.
According to the requirements of lamp belt power, size parameters, etc., the appropriate profile style and specification are selected.At the same time, the power supply points and wiring paths shall be planned in advance, and the power supply interval shall be reasonably allocated to effectively avoid the problems of voltage attenuation and unsightly lines in the later long-distance wiring.

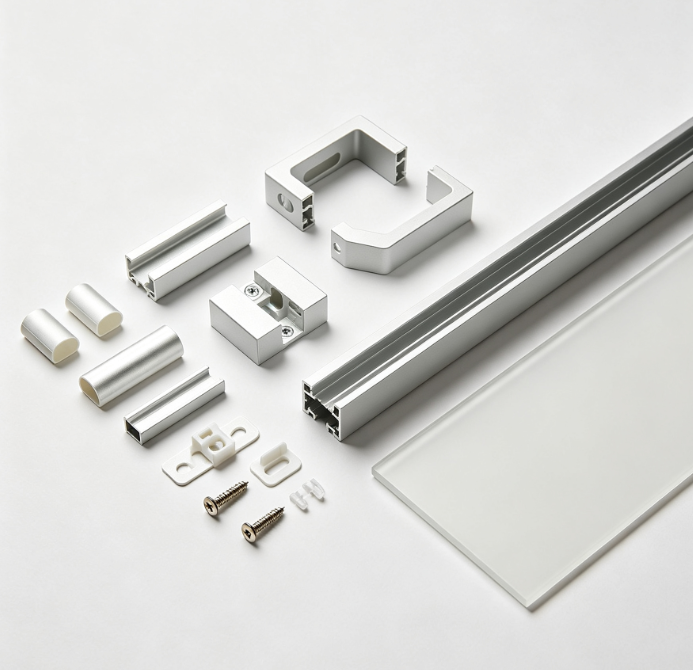

Material and Tool Preparation

Complete set of construction materials shall be provided before construction, including aluminum profile, diffuser plate, sealing end cover, butt joint, fixing buckle and other special accessories.At the same time, a complete set of construction tools such as fine tooth saw, sanding paper, level gauge, electric drill and tape measure shall be prepared to ensure the smooth progress of construction.
Before installing the profile on the wall, the whole lamp strip must be energized in advance to check the lamp bead damage, light color difference, partial non-brightness, strobe and other problems one by one.Troubleshooting in advance can effectively avoid rework and maintenance after installation, greatly improving construction efficiency and finished product effect.

Profile Cutting and Assembly Points

Precision Cutting and Deburring

Special fine tooth saw shall be used when cutting profiles, so as to keep uniform and smooth cutting, strictly control the flatness of incision, and avoid problems such as edge cracking, burr and skew.Violent cutting and forced folding of profiles are prohibited in the whole process to prevent deformation and section distortion of profiles, which will affect the subsequent splicing and installation effect.
After the profile is cut, the edges of the cut must be carefully polished with a grinding tool to thoroughly remove sharp burrs and rough corners.Avoid subsequent installation process, sharp edges scratch lamp beads and lines, scratch diffusion plate, protect accessories intact.

Light Strip Pre-assembly and Splicing

Priority shall be given to fixing the lamp strip flat on the internal base of the profile to ensure that the lamp strip is completely attached to the aluminum bottom without hollowing gap. After pre-installation, the lamp strip shall be fixed on the wall as a whole.This construction method can maximize the heat dissipation effect of the lamp belt, avoid the problem of local heat accumulation, and prolong the life of the lamp belt.
When installing long-distance continuous lighting, it is necessary to use the special joint splicing profile matched by the manufacturer to accurately align the splicing gap.It can ensure that the overall lighting line is straight and regular, and the connection is tight and seamless, and completely eliminate the problems affecting the appearance such as lighting fault, light and dark breakpoint, etc.

Installation Specifications for Various Scenarios

Open Installation Construction Skills

Surface mounted aluminum profiles are fixed by fasteners or screws, and the installation spacing of fasteners should be evenly controlled between 30-50cm during construction.Uniform stress point position can ensure that the profile stress balance, fit the base surface, long-term use of stable not loose, not easy to deform droop.
When using adhesive paste installation, it is necessary to thoroughly clean the dust, oil stain and water stain on the installation base surface in advance to ensure that the base surface is dry, flat and clean.The high-quality base environment can greatly improve the firmness of adhesive adhesion, effectively prevent the late profile degumming, peeling, curling.

Embedding and Corner Construction Skills

During the construction of embedded profiles, the slot size shall be accurately matched with the profile specification to ensure that the profile flange is completely attached to the base surface.During the construction of ash and putty, the movement shall be gentle and smooth, avoid strong extrusion and displacement of profiles, prevent profile deviation, deformation and dislocation, and ensure invisible effect.
Corner installation needs to be accurately aligned with 45° bevel or 90° right angle interface to ensure close fit of splicing.Small holes can be drilled in advance before installation to avoid cracking of profiles caused by direct drilling and forced pressing, and all-round guarantee of light continuity and no shadow at corner positions.

Conclusion

LED aluminum profiles improve linear lighting effect and life through heat dissipation, protection and decoration, suitable for home improvement, commercial and architectural scenes.This paper analyzes its principle, classification, type selection, application and installation, expounds that aluminum profile can solve the problem of bare lamp strip and construct stable and beautiful lighting system.
