How to Identify the Quality of Aluminum Profiles?

Date:2026-04-29

View: 2 Point

Aluminum profiles are widely used in architecture, industry, and precision equipment, where quality directly determines safety, durability, and performance. This guide systematically covers international quality standards, inspection methods for raw materials, dimensions, surface, and mechanical properties, as well as non-destructive testing and defect prevention, providing a comprehensive reference for quality control practitioners.

Key Quality Standards for Aluminum Profiles

Quality standards are the core basis for the production and testing of aluminum profiles. The mainstream international standards system covers key dimensions such as dimensional tolerances, material requirements, surface treatment, etc. to ensure product compatibility and reliability.

ISO International Standards

The International Organization for Standardization (ISO) has formulated a series of standards that are universally applicable. ISO 6362 specifies the dimensional tolerances of aluminum and aluminum alloy extrusion profiles, which directly affects the assembly precision and adaptability of profiles, and is the basic guarantee for the consistency of mass production; although ISO 12944 focuses on the anti-corrosion of steel structures, the specifications of aluminum surface protection have an important reference value for outdoor use of aluminum profiles, and guide the optimization of the surface treatment process.

ASTM American Standard

The standards of American Society for Testing and Materials (ASTM) occupy a dominant position in the North American market.
ASTM B221 regulates the technical requirements of aluminum and aluminum alloy extruded bars, profiles and tubes, including chemical composition, mechanical properties and tolerance range, which is the key basis for raw material selection and finished product testing;.
ASTM B645 focuses on the anodic oxidation treatment of aluminum extrusion and makes detailed provisions on the thickness of oxide film, adhesion and corrosion resistance, ensuring the optimization of the surface treatment process.

EN European Standards

The EN standards formulated by the European Committee for Standardization (CEN) are applicable to Europe and related trading regions.
EN 755 is for the technical requirements of drawn tubes and seamless tubes of aluminum and aluminum alloys, which provides a benchmark for determining the quality of tubular aluminum profiles.
EN 12020-2 is specifically for regulating the quality indexes of anodic oxidized aluminum profiles, which covers the quality of oxidized film, corrosion resistance and abrasion resistance, which is an important certification basis for aluminum profiles of high-end architectural and industrial applications.

Raw Material Inspection

The quality of raw materials directly determines the final performance of aluminum profiles, and the inspection process requires strict control in three aspects: alloy purity, surface condition and composition compliance.

Alloy Composition Verification

Selecting the correct aluminum alloy grade is the first step in quality control. It is necessary to check the composition analysis report provided by the supplier and carry out chemical composition testing on each batch of raw materials to ensure that the content of core elements such as aluminum, magnesium and silicon meets the standard requirements. Deviation in alloy composition may lead to problems such as insufficient strength and reduced corrosion resistance of the profiles, which will seriously affect the safety of use.

Surface Condition Inspection

Comprehensive visual inspection of aluminum ingot billet, focusing on the inspection of cracks, corrosion spots, oil and impurity adhesion and other defects. Pollutants on the surface of the billet will be embedded inside the profile during the extrusion process, leading to surface defects and structural hazards. A clean surface of the billet is a prerequisite to guarantee the quality of subsequent processing.

Chemical Composition Inspection

Accurate chemical analysis is carried out by professional instruments to verify whether the composition of raw materials is consistent with industry standards and order requirements. The inspection can effectively avoid mechanical property failure caused by substandard composition, ensure that each batch of raw materials has stable processing performance and reliability, and build a solid quality foundation for subsequent production.

Dimensional Accuracy Inspection

Dimensional accuracy is the core index of aluminum profile assembly and fitness, even a small deviation may lead to assembly difficulties or functional failure, so it is necessary to carry out systematic inspection for key dimensions.

Core Inspection Dimensions

Linear dimensions: including length, width, height and wall thickness, of which the consistency of length and uniformity of cross-section wall thickness in mass production are particularly important, directly affecting assembly clearance and structural stability.
Diameter and Hole Diameter: For perforated profiles or tubular products, it is necessary to ensure that the hole diameter and cylindrical features are accurate to avoid loosening of fasteners or assembly interferences due to deviations.
Geometric tolerances: Focus on detecting flatness, straightness and parallelism, which are greatly affected by processing stress and material deformation, and are directly related to the fit of contact surfaces and overall assembly accuracy.
Positional accuracy: Ensure the positioning accuracy of holes and key features relative to the datum, even if individual features are dimensionally qualified, positional deviation may still lead to overall assembly failure.
Contour accuracy: For complex cross-sectional profiles, it is necessary to verify the conformity of curved surfaces or shaped structures with the design geometry to ensure the performance of the functional surfaces.

Commonly Used Inspection Tools

Vernier calipers: general-purpose measuring tools with an accuracy range of ±0.02mm to ±0.05mm, suitable for rapid inspection of length, width, internal and external diameters.
Micrometer: Higher accuracy than calipers, divided into external and internal measurement types, used for wall thickness, hole diameter and other key dimensions of accurate measurement to meet the strict tolerance requirements.
Coordinate measuring machine (CMM): with three-dimensional measurement capability, it can complete the comprehensive dimensional verification of complex profiles, including geometric tolerance and contour accuracy testing, and it is the core equipment for the first-piece inspection and batch sampling.
Auxiliary Instruments: Height gauge for vertical dimension measurement, percent gauge for round runout and flatness detection, and through stop rule for quick conformity determination in mass production.

Surface Quality Inspection

Surface quality directly affects the aesthetics and corrosion resistance of aluminum profiles, and the inspection needs to be carried out in multiple dimensions by combining visual assessment, instrument measurement and performance testing.

Visual Inspection

As the most basic means of inspection, surface scratches, dents, color differences, bubbles and other defects are detected by the naked eye or a magnifying glass. For scenarios with high appearance requirements such as architectural decoration, visual inspection is a key link in screening unqualified products and can detect obvious surface defects in a timely manner.

Surface Roughness Test

A roughness meter is used to measure the micro-convexity of the profile surface and quantitatively assess the surface smoothness. Roughness indicators not only affect the appearance of texture, but also affect the coating adhesion and friction performance in use, according to the application scenarios to meet the corresponding standard requirements.

Coating Consistency Inspection

For anodized or powder coated profiles, a film thickness gauge is used to accurately measure the coating thickness to ensure uniformity. At the same time, the consistency of the coating color is checked to avoid color difference problems. Coating quality is directly related to the corrosion resistance and service life of the profile, which is the core content of the surface inspection.

Specialized Inspection of Surface Defects

Advanced technologies such as penetration testing are used to detect surface defects such as fine cracks that are difficult to find with the naked eye.
By applying penetrant, removing excess and applying developer, the method makes obvious traces at the defects, which is suitable for verifying the surface quality of aluminum profiles for key structures.
Anodizing quality assessmentThe focus is on the thickness uniformity and adhesion of the anodized film, while the protective performance is verified by corrosion resistance test. The quality of the oxide film directly affects the service life of aluminum profiles in humid and outdoor environments, so it is necessary to strictly comply with the requirements of the relevant standards.

Mechanical Properties Testing

Mechanical properties are the core guarantee for the structural safety of aluminum profiles, which are comprehensively evaluated through three types of tests: tensile, hardness and bending.

Tensile Test

Aluminum profiles are processed into standard specimens and subjected to tensile testing on a universal material testing machine to record force-displacement curves and obtain key indicators such as yield strength, tensile strength and elongation. For example, the tensile strength of 6063-T5 aluminum profiles should not be less than 160MPa and the yield strength should not be less than 110MPa; the tensile strength of 6061-T6 aluminum profiles can be about 310MPa and the yield strength is about 276MPa. Profiles of different grades and heat treatment status should meet the requirements of the corresponding standards.

Hardness Test

Brinell hardness, Rockwell hardness and Vickers hardness test methods are commonly used, of which Vickers hardness test is widely used in industrial aluminum profile testing due to convenient operation and can be carried out directly on the profile surface. The hardness value can be used to determine whether the heat treatment state and alloy composition of the aluminum profile are qualified, for example, the hardness of T6 state of 6061 aluminum profile is higher than that of T4 state.

Bending Test

The specimen is bent according to the specified bending radius and angle on a bending test machine to observe whether cracks, breaks and other defects occur.
This test is used to assess the ability of aluminum profiles to withstand bending loads in actual use, and is particularly important for applications such as frame structures and support members.

Corrosion Resistance Testing

Corrosion resistance directly determines the service life of aluminum profiles, and salt spray testing is the most commonly used standardized testing method.
Salt spray testing (also known as salt spray testing) accelerates the assessment of the durability of protective coatings on profiles by creating a simulated corrosive environment in a closed chamber. The test is usually performed in accordance with ASTM B117 and involves exposing the specimen to a salt spray environment containing 5% sodium chloride at pH 6.5-7.2 for a period of time ranging from 8 to 3000 hours.
The corrosion resistance of different coatings varies significantly, with Ruspert coatings, for example, withstanding 1000 hours of severe environmental testing, while black oxide coatings last only 24-96 hours.
While this test does not exactly replicate the actual conditions of use, it does provide a quick comparison of the relative corrosion resistance of different coatings, which can be used as a scientific basis for selection. For profiles used in non-salt spray environments, other corrosion testing methods can be selected in accordance with the actual application scenario.

Non-Destructive Testing Methods (NDT)

NDT can comprehensively investigate surface and internal defects without destroying the structural integrity of the product, which is the core means of quality control for high-end aluminum profiles (e.g., for aerospace and precision machinery), and makes up for the limitation of “difficult to penetrate the interior” of the surface quality inspection.

Surface Defects Non-destructive Testing

Penetrant Inspection: Suitable for detecting surface opening defects, the operation process includes applying penetrant, removing excess penetrant, and applying developer. The penetrant penetrates into the defect and the developer absorbs it, creating a clear indication of the defect. The method is highly sensitive and can detect fine cracks, but it can only screen surface defects and cannot detect internal problems.
Eddy current detection: Based on the principle of electromagnetic induction, a magnetic field is formed inside the profile by the eddy currents generated by the coil. Defects cause changes in the eddy currents, which in turn cause changes in the coil impedance. This method is suitable for detecting surface and near-surface defects, corrosion and material changes of conductive materials, with fast detection speed, but greatly affected by the shape and material of the profile.

Internal Defects Non-destructive Testing

Ultrasonic detection: the use of high-frequency sound waves to penetrate the interior of the profile, through the analysis of reflected wave signals to determine whether there are internal defects. This method can detect cracks, pores, inclusions, delamination and other internal problems, the depth of detection is flexible, but if you need specialized equipment and operators, the results are affected by the shape, size and material properties of the profile.
Radiographic inspection: X-rays or gamma rays are used to penetrate the profile and form an image through the detector, which can visualize the location, size and shape of internal defects. This method is accurate and suitable for complex structural profiles, but requires special equipment and strict radiation protection measures, and is costly and time-consuming.
Magnetic Particle Inspection: For ferromagnetic aluminum alloys, by applying a magnetic field and spraying ferromagnetic powder, defects will lead to distortion of the magnetic field, so that the ferromagnetic powder will gather at the defects to form visible traces. This method is fast and reliable, suitable for detecting surface and near-surface cracks, folding and other defects, but not applicable to non-ferromagnetic aluminum profiles.

Common Quality Defects and How to Avoid Them

Welding Defects or Poor Welding

Hollow aluminum profiles are extruded by shunt combination die, after metal shunt, need to be re-welded, if not welded properly, there will be gaps. The main reasons include insufficient metal flow due to the small size of the shunt hole and welding chamber, or improper lubrication affecting the welding effect.
Preventive measures: Expand the area of the shunt hole and welding chamber by grinding, increase the metal supply to form sufficient static pressure; use lubrication-free extrusion process to avoid the impact of lubrication on the welding quality.

Profile Wall Concave-convex Arc

Concave arc defect: because the working belt of the mold core is lower than the working belt of the lower mold hole, and the effective length is too short.
Correction method: add washers between the die core and the lower mold, so that the two working belt after the force height of the same, while in the lower mold outlet to reduce the corresponding thickness.
Convex arc defects: mostly formed by excessive wear of the mold core working belt grooves, increasing frictional resistance resulting in uneven metal flow.
Correction method: if the wall thickness tolerance allows, the surface of the working belt of the mold core can be polished to reduce friction; in case of serious wear, the core should be preheated to about 300℃ for repairing by patch welding and then processed to the specified size; if it is not worn out, the inner and outer obstruction parts of the working belt of the mold core can be polished.

Surface Stripe Defects

Stripes appear on the outer surface of extruded profiles, which are more obvious after anodizing, and are commonly found in the parts with big differences in wall thicknesses, metal welding places and internal “branches” or threaded holes. The main causes include uneven metal supply, poorly designed mold manifold bridges, profile cross-section design defects, insufficient cooling and poor ingot quality.
Preventive measures:
Check the decorative surface of the profile for wall thickness variations, branching and threaded hole design.
Design the shunt bridge on the non-decorative surface and enlarge the welding chamber to ensure the static pressure of metal.
Add an upper welding chamber for large-size profile molds.
Grinding of working belts in the corresponding parts of the mould to optimize the transition radius.
Ensuring uniform heating and homogenized annealing of ingots.
Timely adjustment of air and water pressure in the cooling system to ensure uniform cooling temperature and speed.

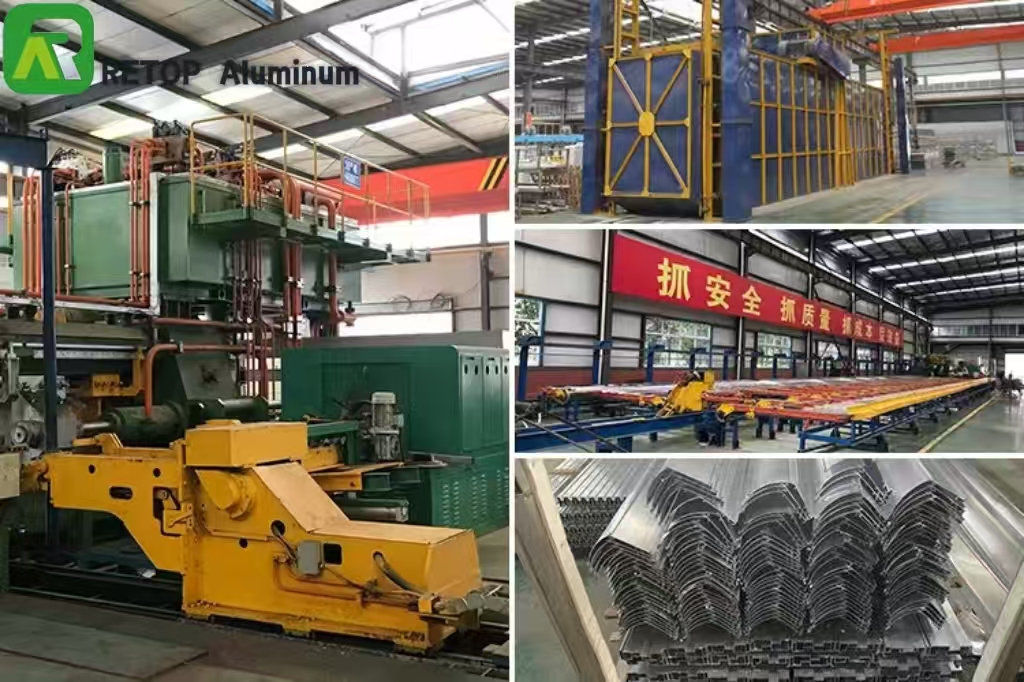

Ensuring Consistent Aluminum Profile Quality

Whole Process Monitoring

Raw Material Purchase: High purity aluminum ingots are selected, and each batch undergoes chemical analysis and visual inspection to prevent unqualified raw materials from entering the warehouse.
Process Optimization: Intelligent temperature control system and pressure sensors are introduced to adjust the extrusion parameters in real time to ensure the stability of the production process.
Surface treatment: automated spraying equipment, combined with film thickness measuring instrument and salt spray test, to ensure the durability and consistency of the coating.

Strict Quality Inspection and Certification

Three-tier inspection system: implement three-tier inspection system for raw materials, production process and finished products, focusing on checking mechanical properties (tensile strength, yield strength) and corrosion resistance (48-hour salt spray test).
Quality management system certification: passed ISO 9001 quality management system certification, established standardized workflow, set up quality feedback mechanism to achieve closed-loop management.

Technical Innovation and Personnel Training

Tooling and process upgrading: Continuously optimize tooling design and extrusion process (e.g. porous tooling improvement) to reduce production defects from the source.
Employee skill training: Regularly carry out training on operation standardization and problem solving ability to improve the professionalism of employees and reduce the human error rate.

Conclusion

Ensuring aluminum profile quality requires a full-cycle approach, from complying with international standards and strict raw material inspection to applying scientific testing methods and defect prevention strategies. By integrating systematic monitoring, professional detection, and continuous process optimization, consistent quality can be achieved, laying a solid foundation for the reliable application of aluminum profiles across various industries.
